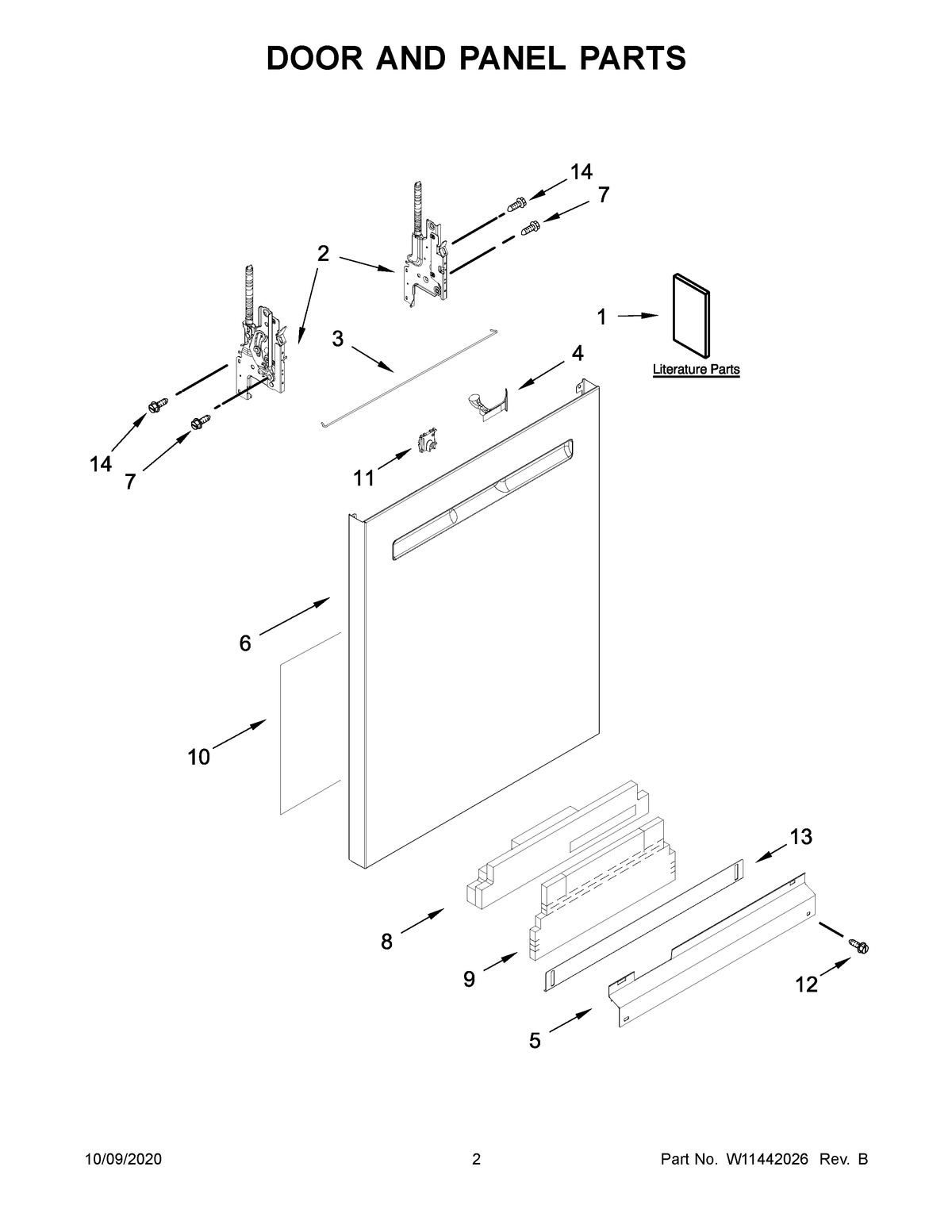

MDB8959SKK0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	ARM, HINGE (LEFT HAND)
2A	ARM, HINGE (RIGHT HAND)
3	CROSS BRACE, DOOR
4	LIGHT PIPE
5	ACCESS PANEL (BLACK)
5A	ACCESS PANEL (WHITE)
6B	PANEL, FRONT (INCLUDES 4 & 11) (WHITE)
6C	PANEL, FRONT (INCLUDES 4 & 11) (STAINLESS)
6A	PANEL, FRONT (INCLUDES 4 & 11) (CAST IRON BLACK)
6	PANEL, FRONT (INCLUDES 4 & 11) (BLACK)
7	SCREW
8	INSULATION, MULTI-LAYER
9	INSULATION, SINGLE LAYER
10	INSULATION, FRONT PANEL
11	BARREL NUT, FRONT PANEL
12	SCREW, BLACK
12A	SCREW, WHITE
13	TOE PANEL (BLACK)
13A	TOE PANEL (WHITE)
14	MAY W10309090
