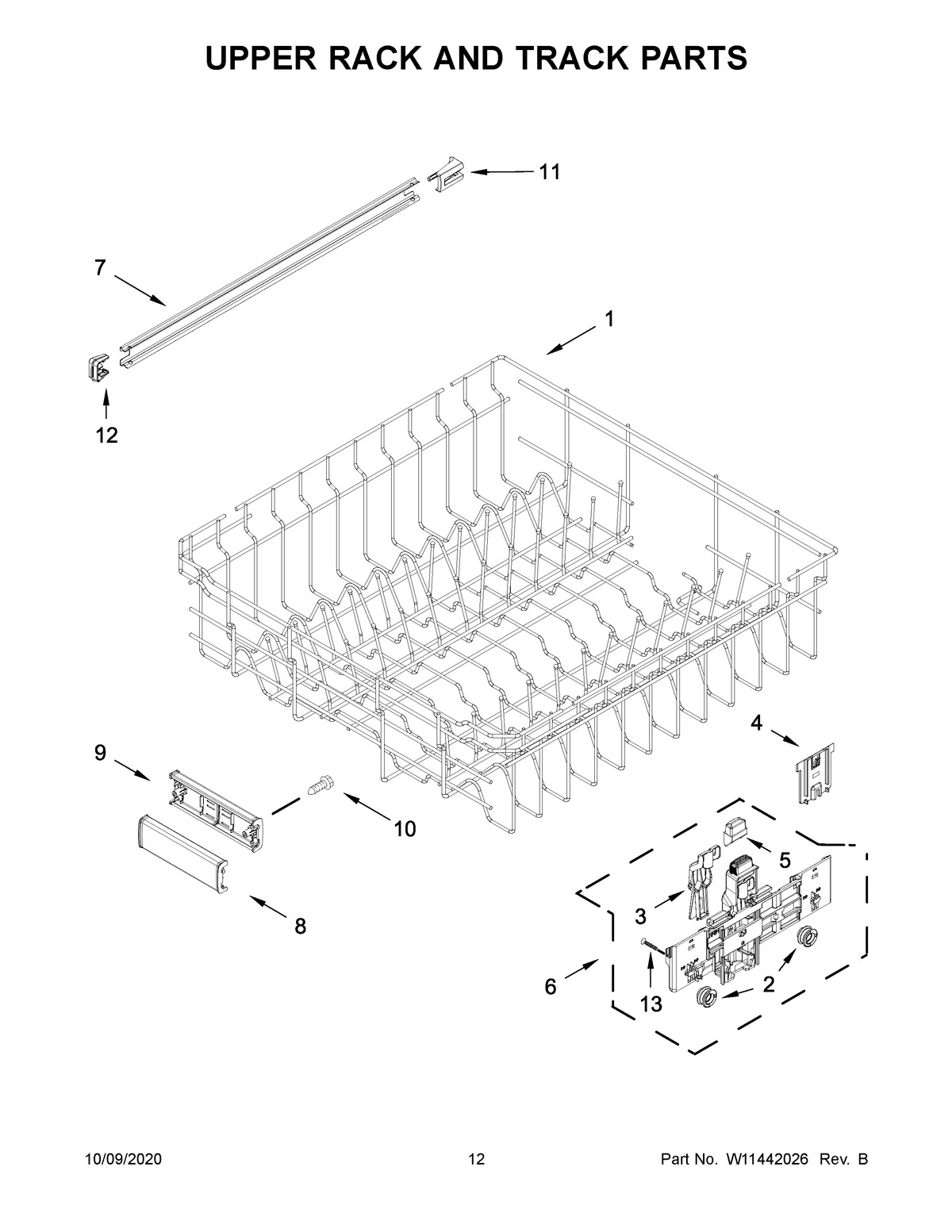

MDB8959SKK0 07 – UPPER RACK AND TRACK PARTS

Written by

Products

Position	Product
1	DISHRACK, UPPER
2	WHEEL
3	LEVELER, ADJUSTER ARM
4	CLIP, ADJUSTER ARM
5	BUTTON, ADJUSTER ARM
6	ADJUSTMENT ASSEMBLY (LEFT HAND)
6A	ADJUSTMENT ASSEMBLY (RIGHT HAND)
7	TRACK, DISHRACK
8	HANDLE, DISHRACK FRONT
9	HANDLE, DISHRACK REAR
10	MAY 9741232
11	TRACK STOP, REAR
12	TRACK STOP, FRONT
13	SCREW
