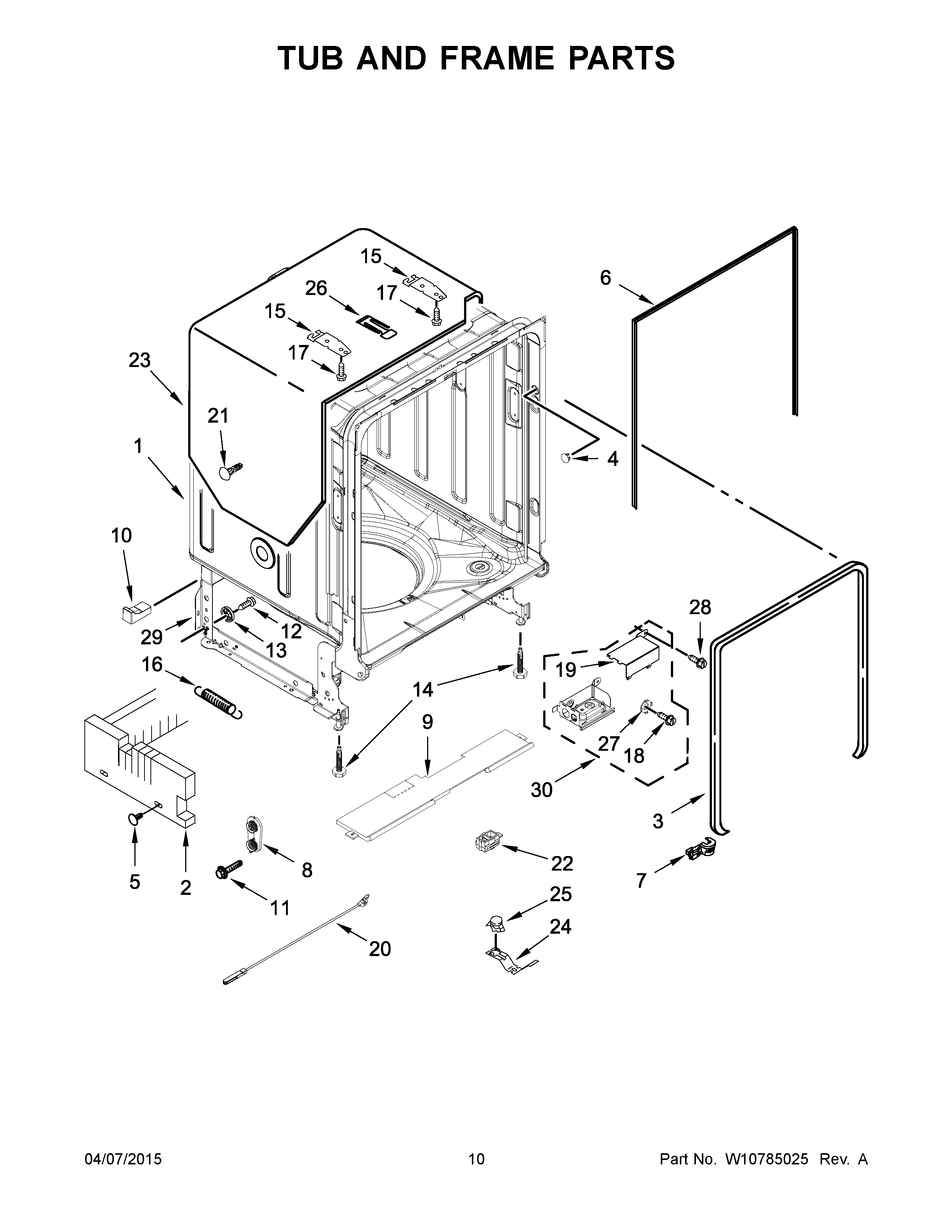

MDB8969SDE2 06 – TUB AND FRAME PARTS

MDB8969SDE2 06 – TUB AND FRAME PARTS

Written by

in

MDB8969SDE2 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10681492
2MAY W10740645
3SEAL, DOOR
4MAY W10082838
5RETAINER
6SEAL, CABINET
7MAY W10337661
8DOOR BALANCE ASSEMBLY
9MAY W10746770
10SPACER, TUB/BRACE (LEFT)
10ASPACER, TUB/BRACE (RIGHT)
11SCREW
12MAY W10348411
13WHEEL LEG
14LEVELER, LEG
15MAY 8269145
16MAY 8270020
17MAY 3367670
18MAY 3400014
19COVER, TERMINAL BOX
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22MAY W10292870
23MAY 8573239
24MAY W10300703
25MAY W10195091
26STRIKE, LATCH
27WASHER, PRONGED CUP
28Screw
29SUPPORT ASSEMBLY, REAR
30ASSEMBLY, TERMINAL BOX
