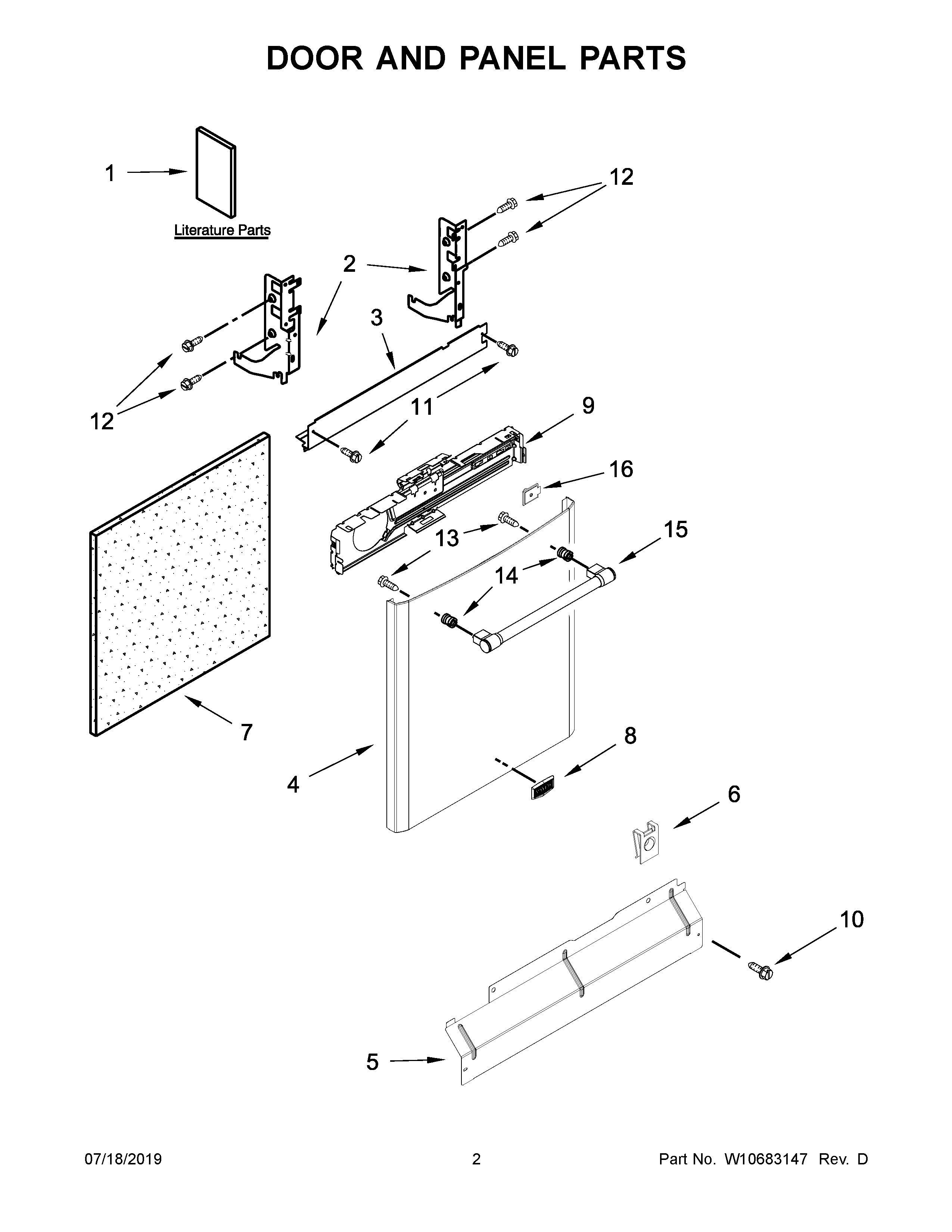

MDB8969SDH0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1C	MAY W10610054
1B	MAY W10599529
1A	MAY W10810681
1D	MAY W10610057
1	MAY W10649077
2	MAY 8534854
2A	MAY 8534853
3	BARRIER, VAPOR
4B	MAY W10562146
4A	MAY W10562145
4	MAY W10562144
5	ACCESS PANEL (BLACK)
5A	MAY W10852732
6	U-NUT
7	INSULATION, FRONT PANEL
8	BADGE
9	MAY W10641745
10A	WP3400836 Whirlpool Dishwasher Screw
10	SCREW (BLACK)
11	Screw
12	SCREW
13	MAY W10316572
14	STUD, MOUNTING
15	HANDLE (STAINLESS)
16	LIGHT, PIPE
