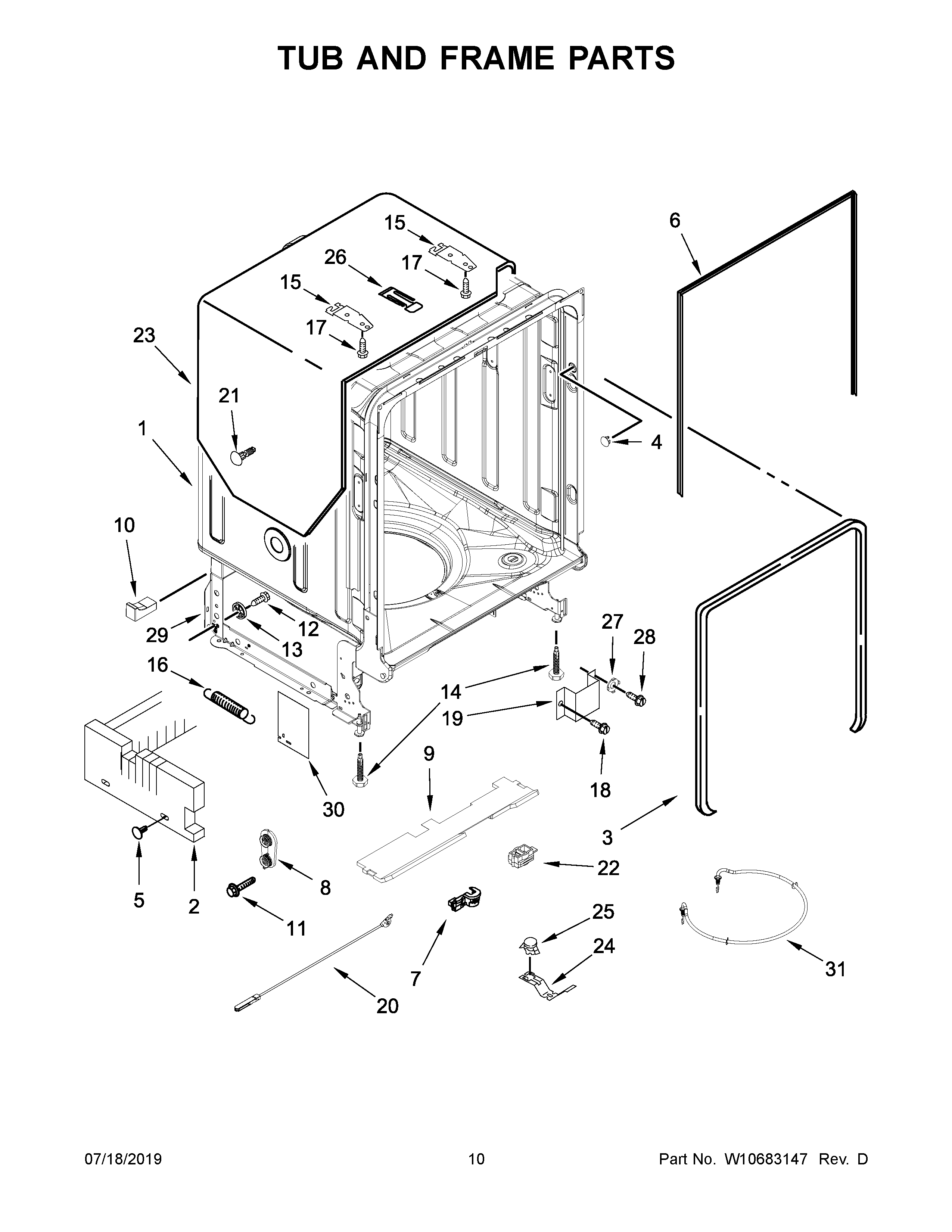

MDB8969SDH0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10511208
2	MAY W10380052
3	GASKET, TUB
4	MAY W10082838
5	RETAINER
6	SEAL, CABINET
7	MAY W10337661
8	DOOR BALANCE ASSEMBLY
9	SOUND INSULATION, BOTTOM
10	SPACER, TUB/BRACE (LEFT)
10A	SPACER, TUB/BRACE (RIGHT)
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15	MAY 8269145
16	MAY 8270020
17	MAY 3367670
18	MAY 3400892
19	MAY 8268991
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	MAY W10292870
23	SHIELD, TUB SOUND
24	MAY W10300703
25	MAY W10195091
26	STRIKE, LATCH
27	WASHER, PRONGED CUP
28	MAY 3400014
29	MAY W10190776
30	MAY W10609495
31	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
