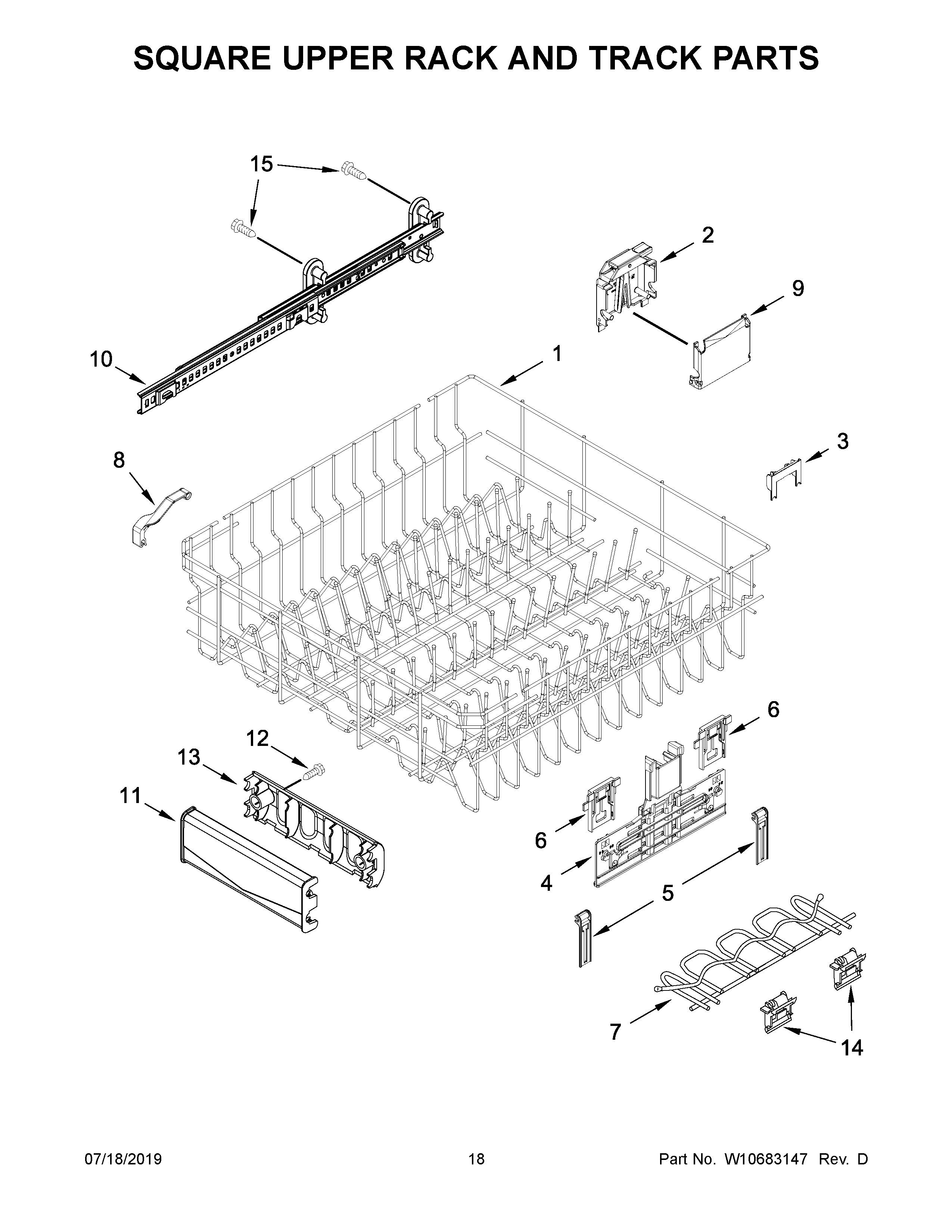

MDB8969SDH0 10 – SQUARE UPPER RACK AND TRACK PARTS

MDB8969SDH0 10 – SQUARE UPPER RACK AND TRACK PARTS

Written by

in

MDB8969SDH0 10 – SQUARE UPPER RACK AND TRACK PARTS

Products

PositionProduct
1MAY W10599464
2HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
2AHOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
3CLIP-LOCK ADJUSTER ARM
4ADJUSTER ASSEMBLY
5MAY W10195839
6POSITIONER, ADJUSTER
7CUPSHELF ASSEMBLY
8CLIP, DISPENSER GUARD
9MAY W10250162
10ATRACK, ASSEMBLY (RIGHT HAND)
10TRACK, ASSEMBLY (LEFT HAND)
11MAY W10635042
12MAY 9741232
13MAY W10562068
14CLIP, CUPSHELF
15MAY W10309090
