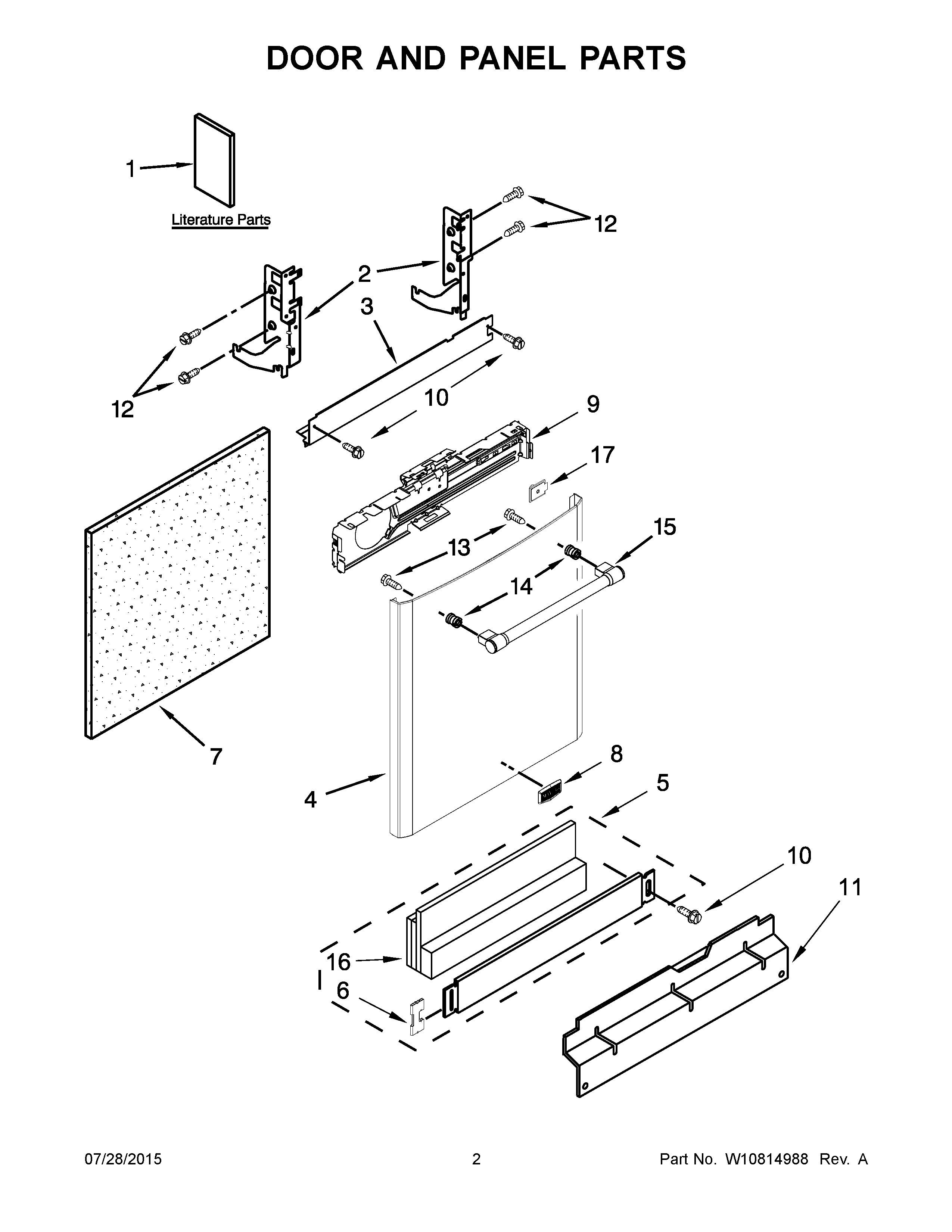

MDB8969SDH3 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10741197
1A	MAY W10599490
1B	MAY W10599529
1C	MAY W10751162
1D	MAY W10751165
2	MAY 8534854
2A	MAY 8534853
3	MAY W10726645
4A	MAY W10562145
4	MAY W10562144
4B	MAY W10562146
5	MAY W10586590
5A	MAY W10586591
6	CLIP, GROUNDING
7	MAY W10620222
8	BADGE
9	MAY W10641745
10	SCREW (BLACK)
10A	WP3400836 Whirlpool Dishwasher Screw
11	MAY W10195777
11A	MAY W10195778
12	SCREW
13	MAY W10316572
14	MAY W10195726
15	MAY W10687840
16	MAY W10526105
17	LIGHT, PIPE
