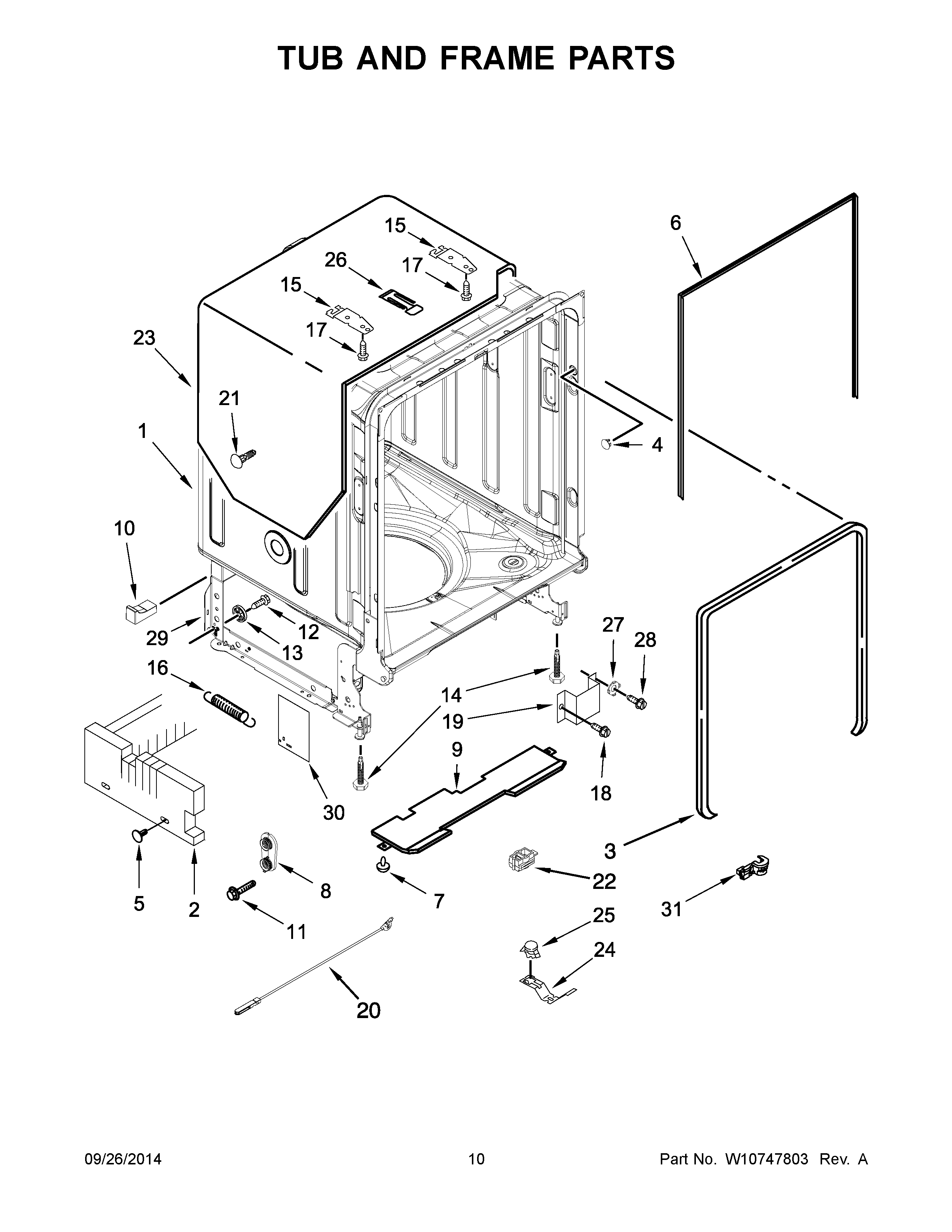

MDB8969SDM1 06 – TUB AND FRAME PARTS

MDB8969SDM1 06 – TUB AND FRAME PARTS

Written by

in

MDB8969SDM1 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10511208
2MAY W10380052
3SEAL, DOOR
4MAY W10082838
5RETAINER
6SEAL, CABINET
7MAY 3400924
8DOOR BALANCE ASSEMBLY
9INSULATION BOTTOM
10ASPACER, TUB/BRACE (RIGHT)
10SPACER, TUB/BRACE (LEFT)
11SCREW
12MAY W10348411
13WHEEL LEG
14LEVELER, LEG
15MAY 8269145
16MAY 8270020
17MAY 3367670
18MAY 3400892
19MAY 8268991
20CABLE, DOOR ASSEMBLY
21RETAINER, PUSH
22MAY W10292870
23MAY 8573239
24MAY W10300703
25MAY W10195091
26STRIKE, LATCH
27WASHER, PRONGED CUP
28MAY 3400014
29MAY W10190776
30MAY W10609495
31MAY W10337661
