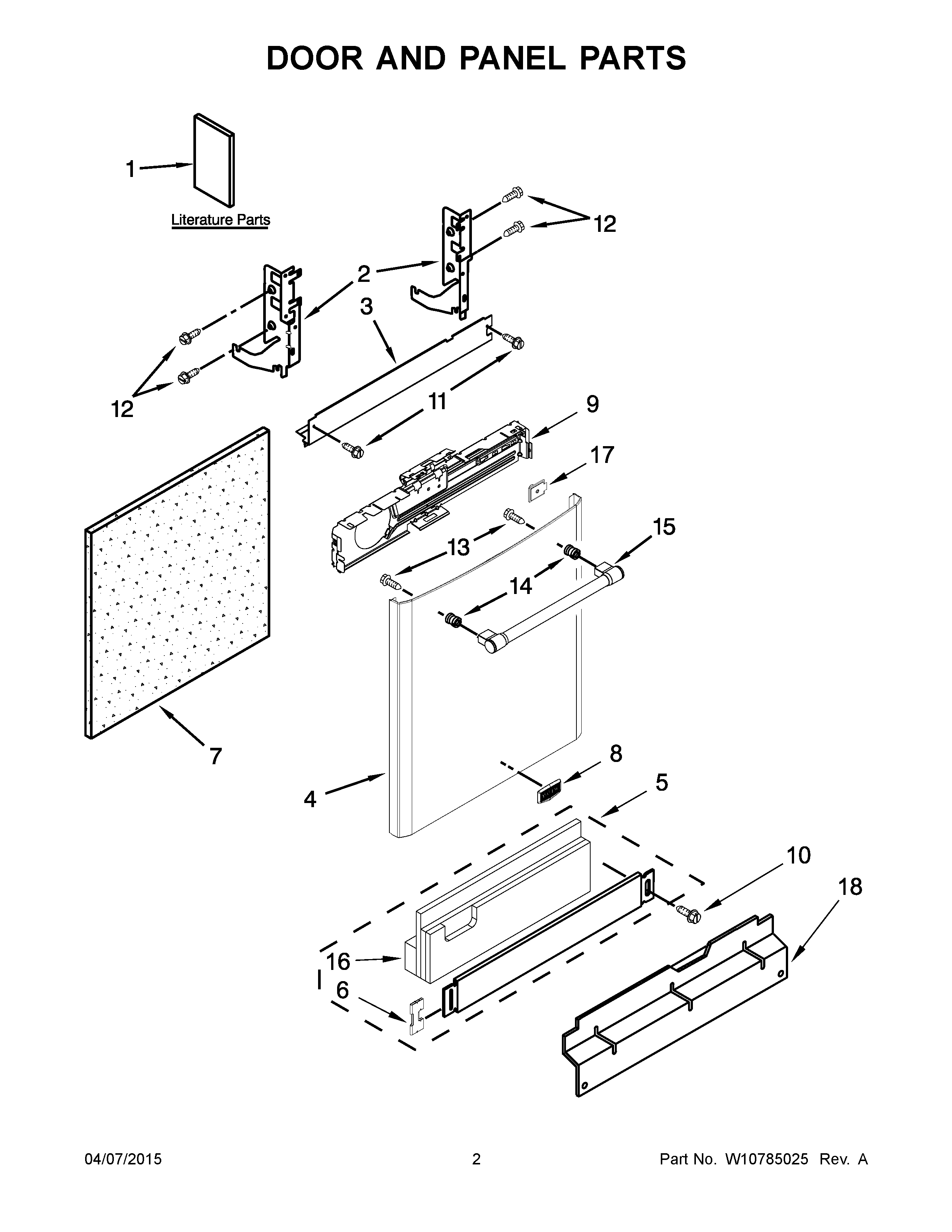

MDB8969SDM2 02 – DOOR AND PANEL PARTS

Products

Position	Product
1A	MAY W10599490
1B	MAY W10599529
1C	MAY W10610054
1D	MAY W10610057
1	MAY W10741197
2A	MAY 8534853
2	MAY 8534854
3	MAY W10321448
4	MAY W10562144
4B	MAY W10562146
4A	MAY W10562145
5	MAY W10586590
5A	MAY W10586591
6	CLIP, GROUNDING
7	MAY W10620222
8	BADGE
9	MAY W10641745
10	SCREW (BLACK)
10A	WP3400836 Whirlpool Dishwasher Screw
11	Screw
12	SCREW
13	MAY W10316572
14	MAY W10195726
15	MAY W10687840
16	MAY W10526105
17	LIGHT, PIPE
18A	MAY W10195778
18	MAY W10195777
