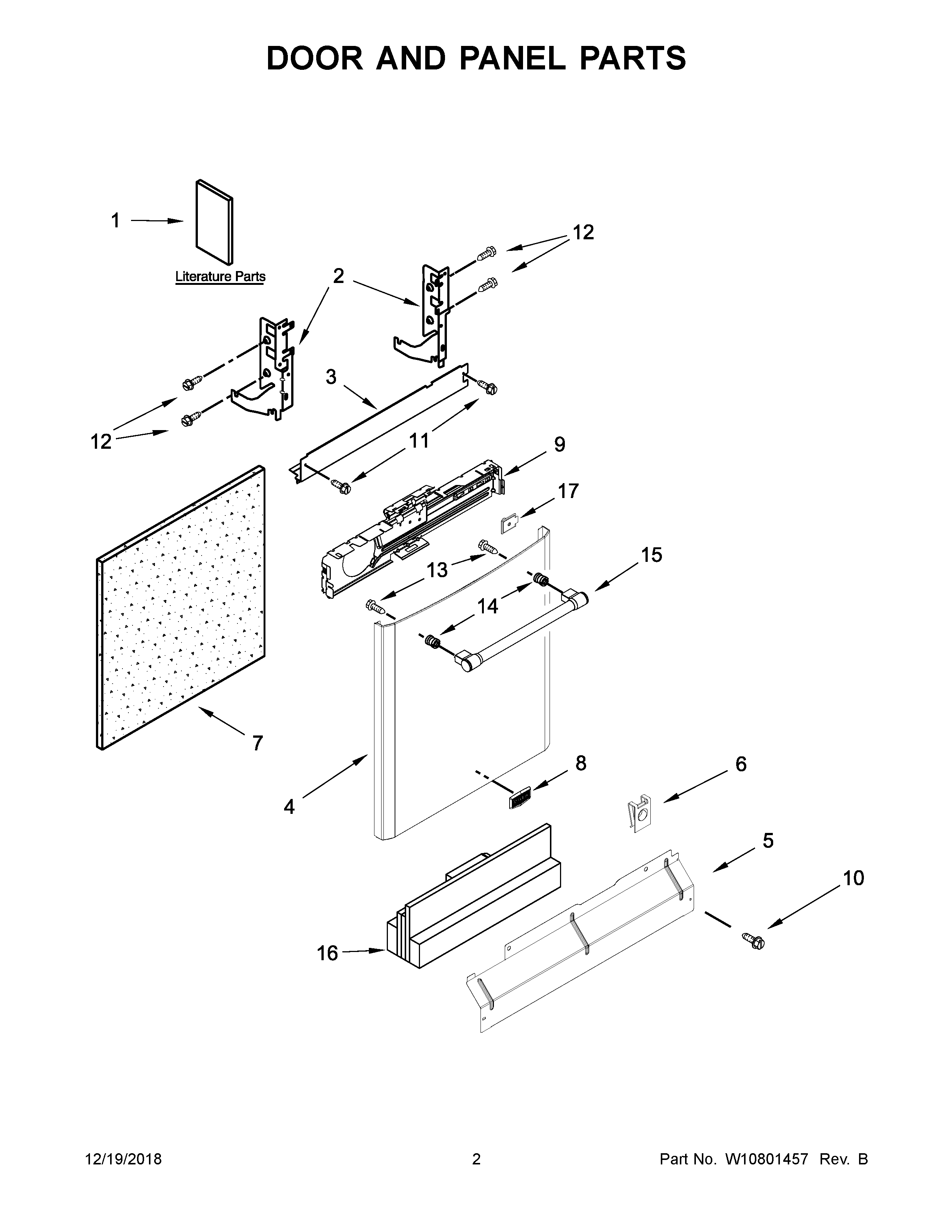

MDB8979SEZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CMAY W10610054
1DMAY W10610057
1AMAY W10921055
1BMAY W10708712
1INSTALLATION INSTRUCTIONS
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4MAY W11034315
5ACCESS PANEL (BLACK)
6U-NUT
7INSULATION, FRONT PANEL
8BADGE
9MAY W10641745
10SCREW (BLACK)
11Screw
12SCREW
13MAY W10316572
14STUD, MOUNTING
15HANDLE (STAINLESS)
16INSULATION, FOUR LAYER
17LIGHT, PIPE
