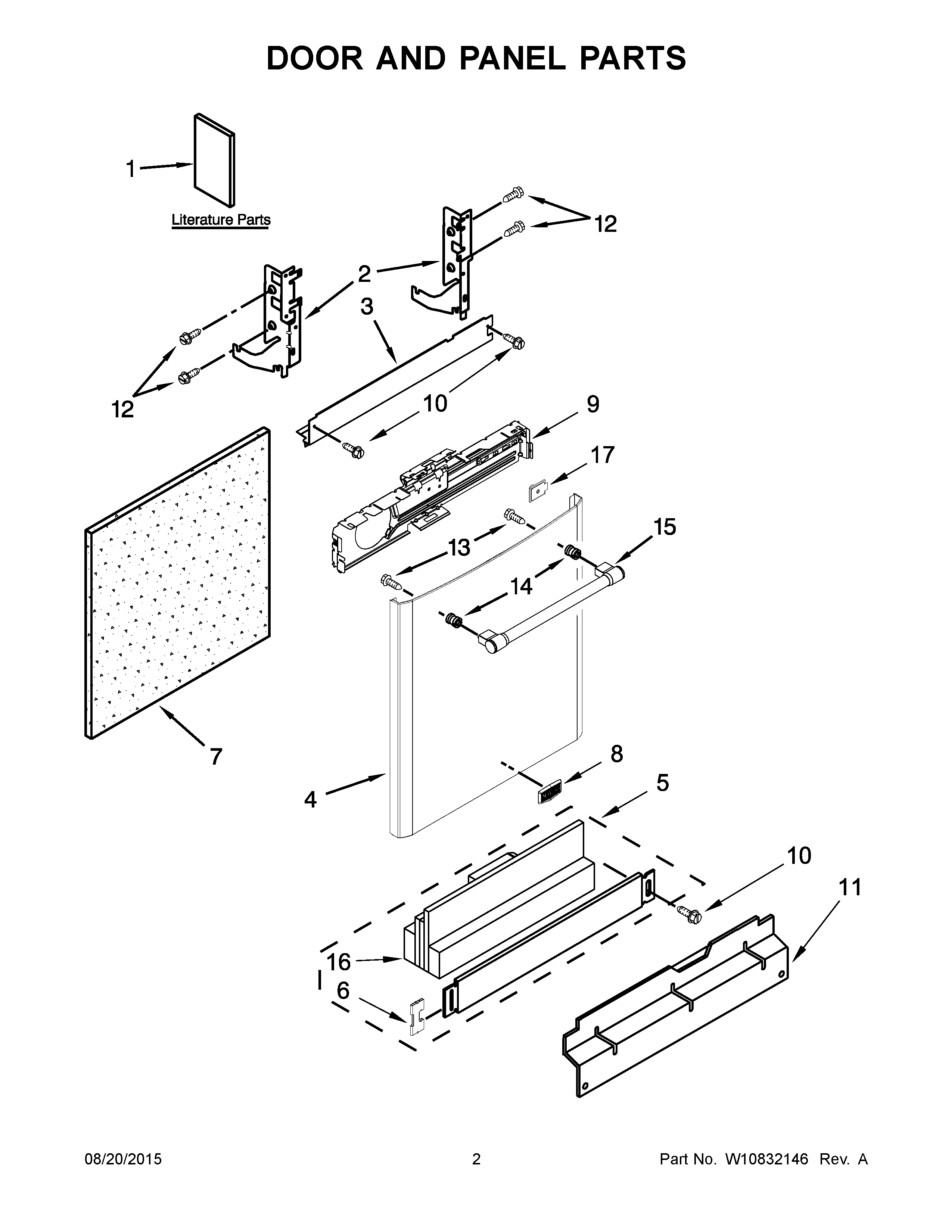

MDB8979SEZ1 02 – DOOR AND PANEL PARTS

MDB8979SEZ1 02 – DOOR AND PANEL PARTS

Written by

in

MDB8979SEZ1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10741197
1AMAY W10786643
1BMAY W10708712
1DMAY W10751165
1CMAY W10751162
2AMAY 8534853
2MAY 8534854
3MAY W10726645
4MAY W10770227
5MAY W10737729
6CLIP, GROUNDING
7MAY W10620222
8BADGE
9MAY W10641745
10SCREW (BLACK)
11MAY W10195777
12SCREW
13MAY W10316572
14MAY W10195726
15MAY W10687840
16INSULATION, FOUR LAYER
17LIGHT, PIPE
