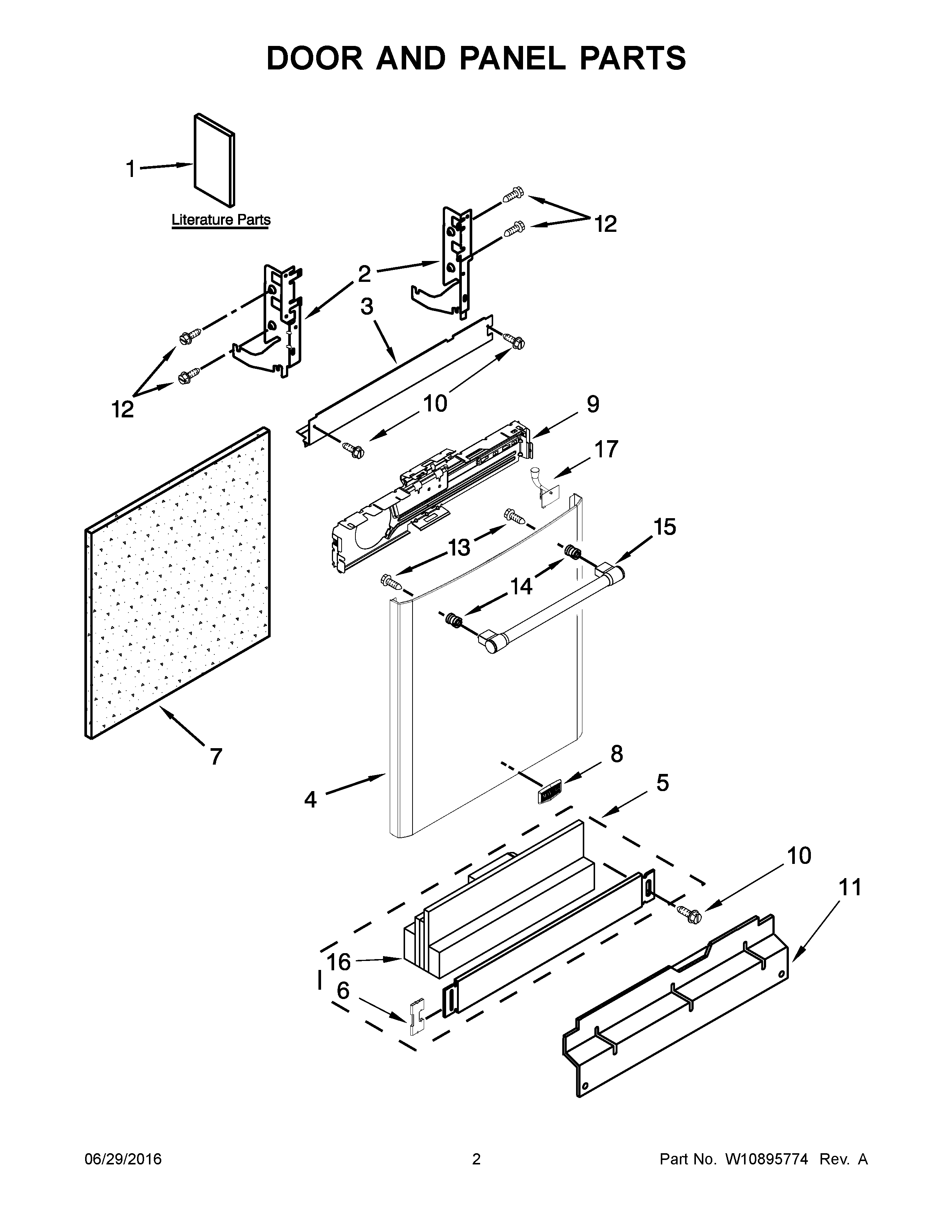

MDB8979SFZ0 02 – DOOR AND PANEL PARTS

MDB8979SFZ0 02 – DOOR AND PANEL PARTS

Written by

in

MDB8979SFZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DMAY W10867186
1MAY W10741197
1CMAY W10867183
1BMAY W10708712
1AMAY W10879782
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4MAY W10867152
5MAY W10737729
6CLIP, GROUNDING
7INSULATION, FRONT PANEL
8BADGE
9MAY W10641745
10SCREW (BLACK)
11MAY W10195777
12SCREW
13MAY W10316572
14MAY W10195726
15MAY W10833961
16INSULATION, FOUR LAYER
17MAY W10816137
