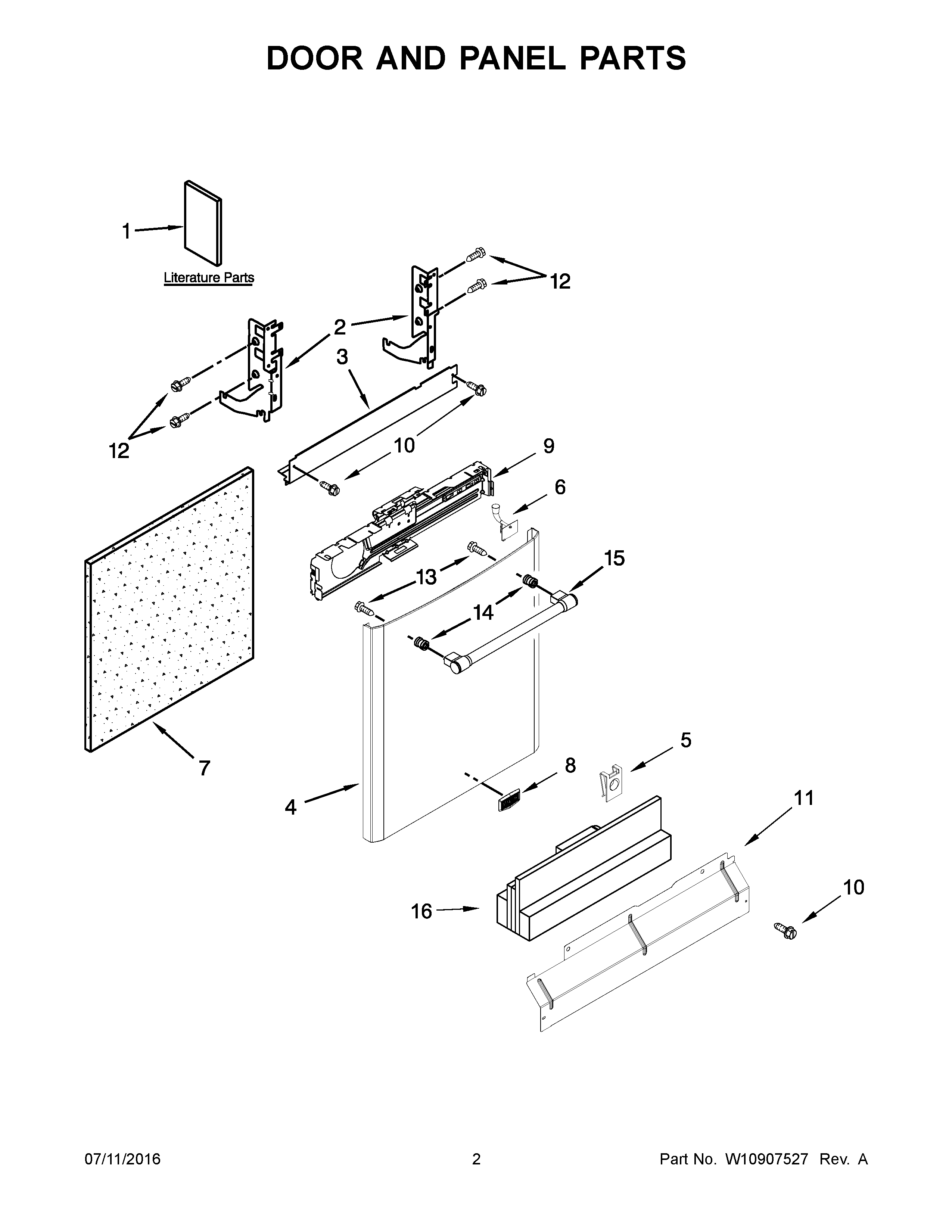

MDB8979SFZ1 02 – DOOR AND PANEL PARTS

MDB8979SFZ1 02 – DOOR AND PANEL PARTS

Written by

in

MDB8979SFZ1 02 – DOOR AND PANEL PARTS

Products

Position	Product
1D	MAY W10867186
1C	MAY W10867183
1	MAY W10741197
1B	MAY W10708712
1A	MAY W10879782
2A	MAY 8534853
2	MAY 8534854
3	BARRIER, VAPOR
4	MAY W10867152
5	U-NUT
6	MAY W10816137
7	INSULATION, FRONT PANEL
8	BADGE
9	MAY W10641745
10	SCREW (BLACK)
11	ACCESS PANEL (BLACK)
12	SCREW
13	MAY W10316572
14	MAY W10195726
15	MAY W10833961
16	INSULATION, FOUR LAYER
