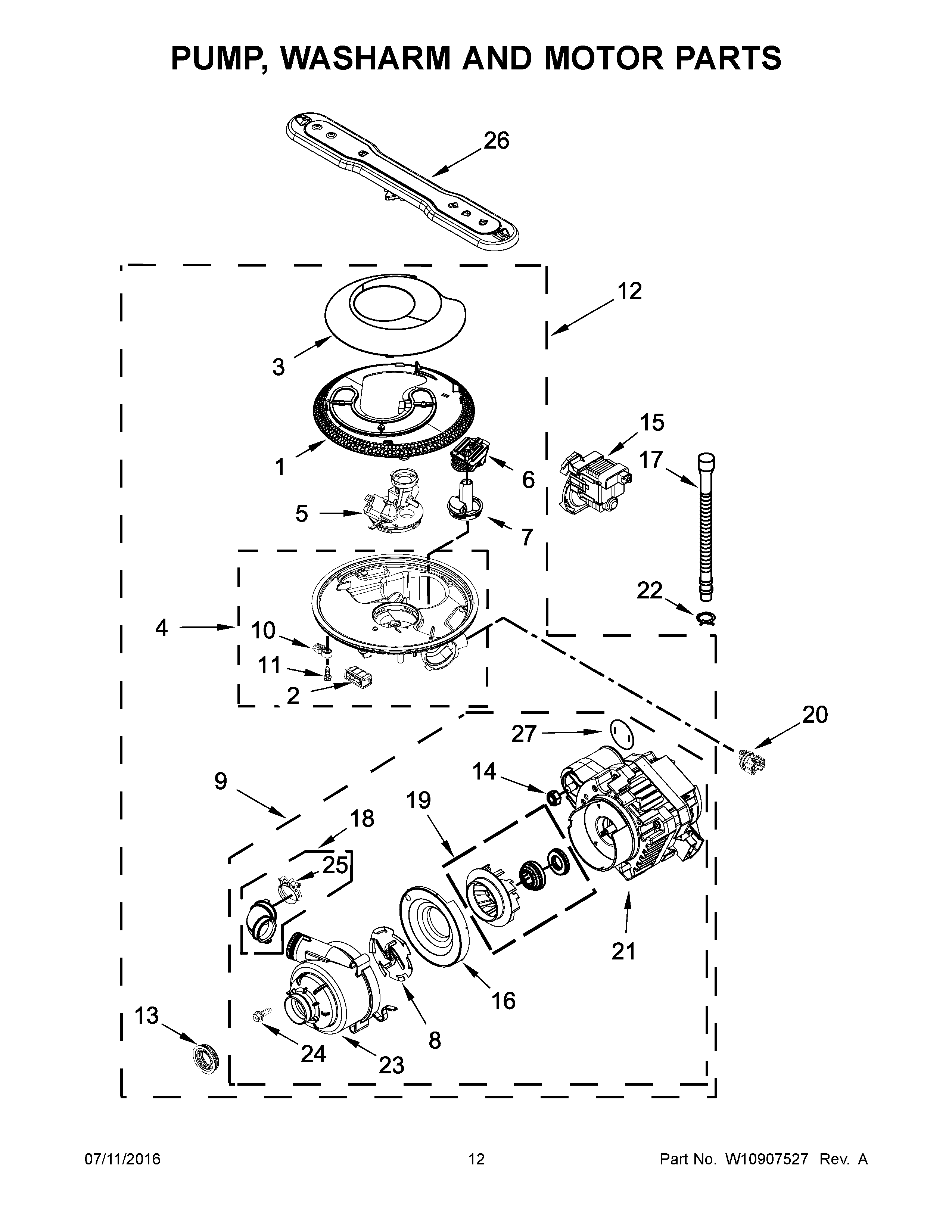

MDB8979SFZ1 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	MAY W10591545
2	MOTOR, ISOLATOR
3	MAY W10736968
4	SUMP WITH SEAL (ALSO ORDER ITEMS 13 & 18)
5	MAY W10463892
6	MAY W10591547
7	MAY W10591540
8	MAY W10591562
9	MAY W10591569
10	TAB, SUMP
11	MAY W10348407
12	MAY W10591570
13	GROMMET
14	MAY 8533949
15	MAY W10348269
16	MAY W10591561
17	MAY 8269144
18	HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
19	MAY W10591558
20	INDICATOR, OPTICAL WASH
21	MAY W10591575
22	MAY 370445
23	MAY W10618403
24	MAY W10467002
25	CLAMP, HOSE
26	MAY W10605800
27	MAY W10710432
