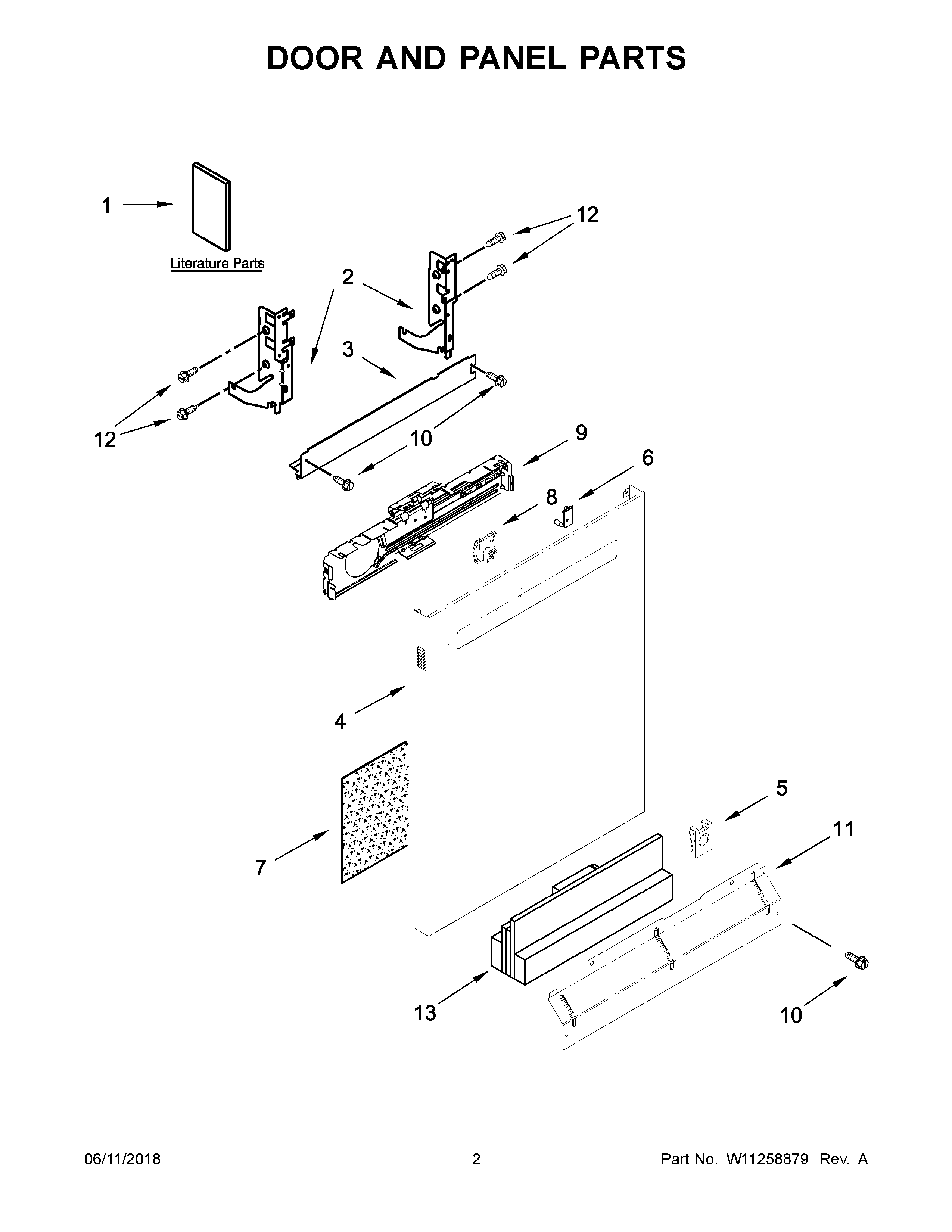

MDB8989SHB0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1CMAY W10867183
1BUSE & CARE GUIDE
1DMAY W10867186
1INSTALLATION INSTRUCTIONS
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4AMAY W10888212
4MAY W10888211
5U-NUT
6LIGHT PIPE
7INSULATION, FRONT PANEL
8BARREL NUT, FRONT PANEL
9MAY W10641745
10AWP3400836 Whirlpool Dishwasher Screw
10SCREW (BLACK)
11AMAY W10852732
11ACCESS PANEL (BLACK)
12SCREW
13INSULATION, FOUR LAYER
