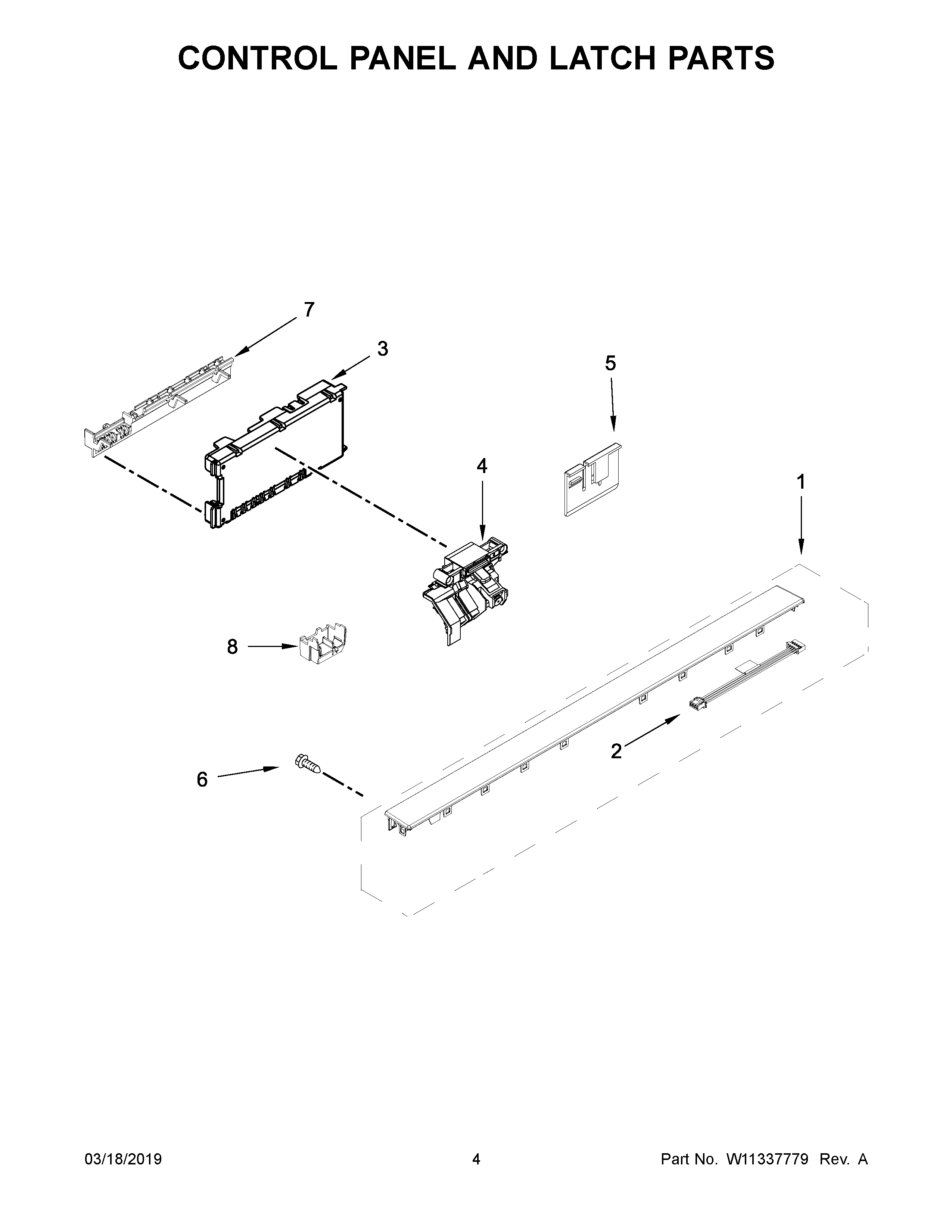

MDB8989SHK0 03 – CONTROL PANEL AND LATCH PARTS

Written by

Products

Position	Product
1	CONSOLE ASSEMBLY (BLACK)
2	JUMPER, 4 WIRE
3	CONTROL, ELECTRONIC
4	LATCH ASSEMBLY (INCLUDES SWITCH)
5	CLIP, CONTROL
6	SCREW
7	MAY W10825369
8	MAY W10825638
