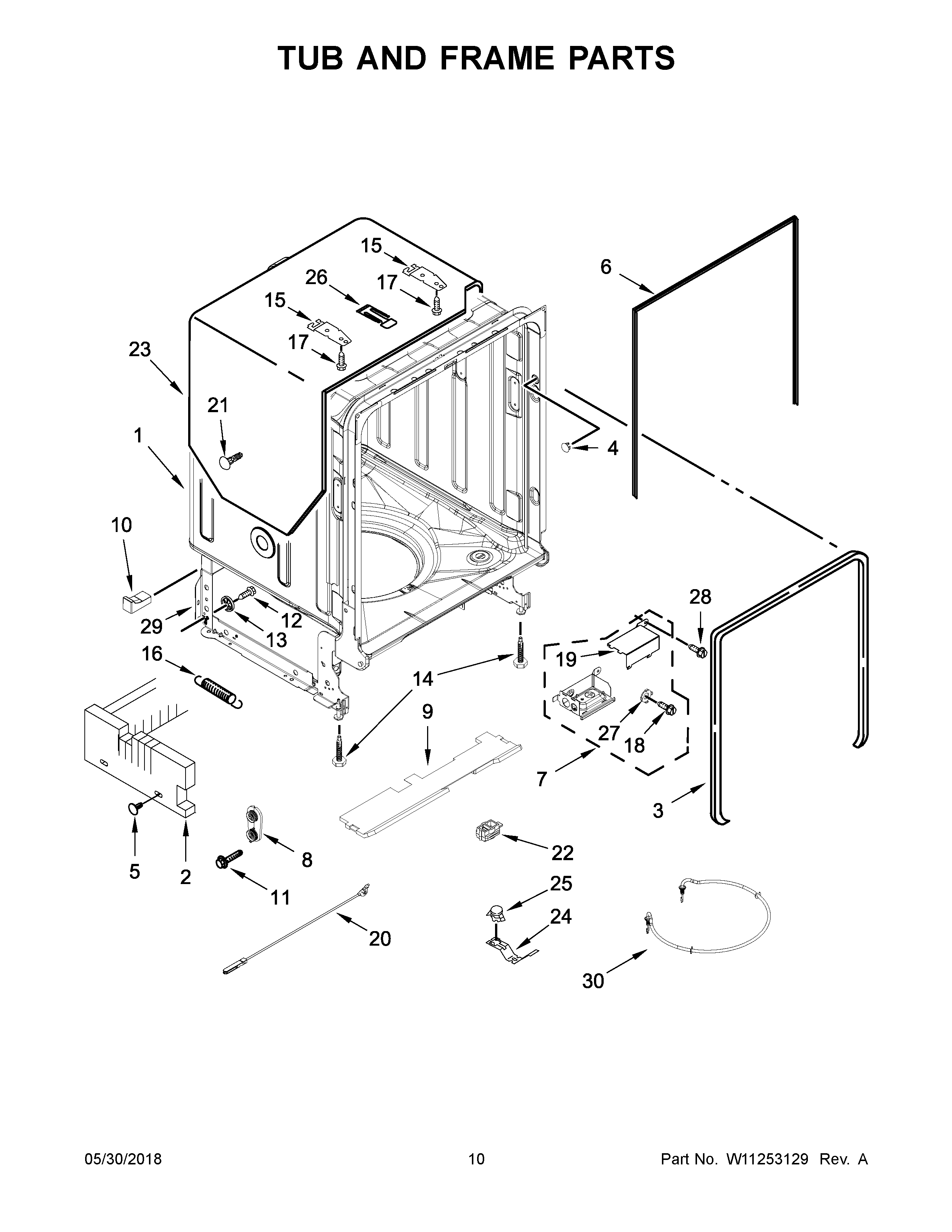

MDB8989SHZ0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY
2	INSULATION, U-WRAP
3	GASKET, TUB
4	PLUG, TUB
5	RETAINER
6	SEAL, CABINET
7	ASSEMBLY, TERMINAL BOX
8	DOOR BALANCE ASSEMBLY
9	SOUND INSULATION, BOTTOM
10A	SPACER, TUB/BRACE (RIGHT)
10	SPACER, TUB/BRACE (LEFT)
11	SCREW
12	MAY W10348411
13	WHEEL LEG
14	LEVELER, LEG
15	MAY 8269145
16	MAY 8270020
17	MAY 3367670
18	MAY 3400014
19	COVER, TERMINAL BOX
20	CABLE, DOOR ASSEMBLY
21	RETAINER, PUSH
22	MAY W10292870
23	SHIELD, TUB SOUND
24	MAY W10300703
25	MAY W10195091
26	STRIKE, LATCH
27	WASHER, PRONGED CUP
28	Screw
29	SUPPORT ASSEMBLY, REAR
30	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
