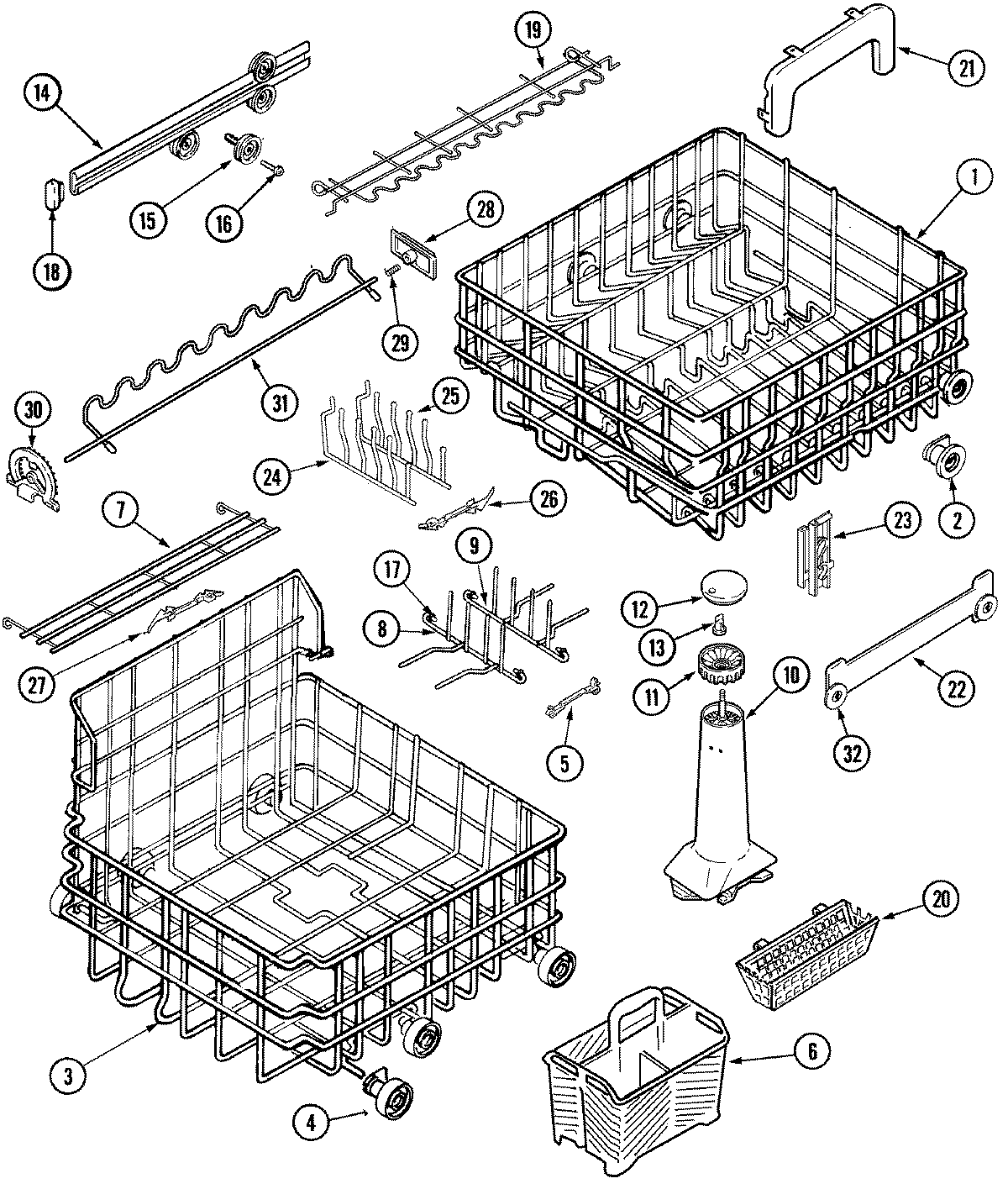

MDB9100AWW 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99002038
2	WP903093 Whirlpool Dishwasher Rack Wheel
3	W10139223 Whirlpool Dishwasher Lower Dish Rack
4	WP99002780 Whirlpool Lower Wheel Assembly
5	WPY912709 Whirlpool Dishwasher Adjuster Clip
6	WP6-918873 Whirlpool Silverware Basket
6	MAY 99002031
7	MAY 99002139
8	WP99002138 Whirlpool Dishwasher Tine Row
9	WP99002137 Whirlpool Dishwasher Row Tine
10	MAY 99001533
11	MAY 99001442
12	WP99001443 Whirlpool Dishwasher Nut
13	MAY 99001426
14	WPY912545 Whirlpool Dishwasher Track
15	WP99002342 Whirlpool Dishwasher Tub Wheel
15	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
16	WP99002947 Whirlpool Tub Wheel
17	WPW10116789 Whirlpool Dishwasher Sleeve
18	WP99002135 Whirlpool Dishwasher Rack Stop
19	MAY 99001429
20	MAY 99002075
21	MAY 99002107
21	MAY 99002108
22	WP99002072 Whirlpool Dishwasher Wheel Mounting Strip
23	MAY 99002073
24	WP99002126 Whirlpool Dishwasher Tine Row
25	MAY 99002127
26	WP99001436 Whirlpool Dishwasher Fold Clip
27	MAY 99001746
28	MAY 99001439
28	MAY 99001461
29	MAY 99001440
30	MAY 99001438
31	MAY 99001437
32	WP99002106 Whirlpool Dishwasher Wheel
33	MAY 99002017
