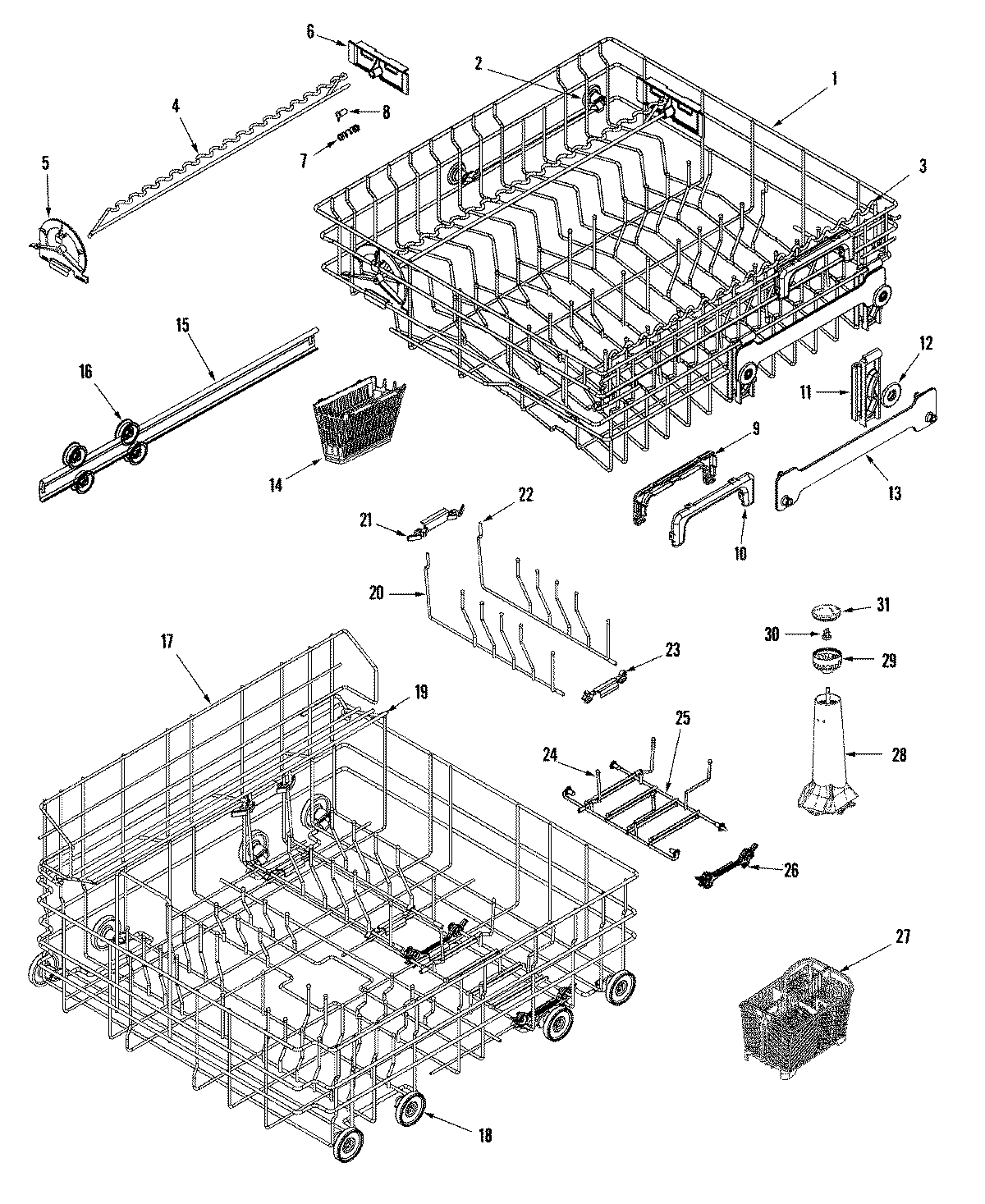

MDB9150AWQ 06 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99002193
1	MAY 99002038
2	WP903093 Whirlpool Dishwasher Rack Wheel
3	MAY 99002456
4	MAY 99002125
5	MAY 99001438
6	MAY 99001439
7	MAY 99001440
8	MAY 99001461
9	MAY 99002107
10	MAY 99002108
11	MAY 99002073
12	WP99002106 Whirlpool Dishwasher Wheel
13	WP99002072 Whirlpool Dishwasher Wheel Mounting Strip
14	MAY 99002075
15	WPY912545 Whirlpool Dishwasher Track
15	WP99002135 Whirlpool Dishwasher Rack Stop
16	MAY 99002183
17	W10139223 Whirlpool Dishwasher Lower Dish Rack
18	WP99003149 Whirlpool Rack Wheel
19	MAY 99002139
20	WP99002126 Whirlpool Dishwasher Tine Row
21	MAY 99001746
22	MAY 99002127
23	WP99001436 Whirlpool Dishwasher Fold Clip
24	WP99002137 Whirlpool Dishwasher Row Tine
25	WPW10116789 Whirlpool Dishwasher Sleeve
25	WP99002138 Whirlpool Dishwasher Tine Row
26	WPY912709 Whirlpool Dishwasher Adjuster Clip
27	MAY 99002031
27	WP6-918873 Whirlpool Silverware Basket
28	MAY 99001533
29	MAY 99001442
30	MAY 99001426
31	WP99001443 Whirlpool Dishwasher Nut
32	MAY 99002905
