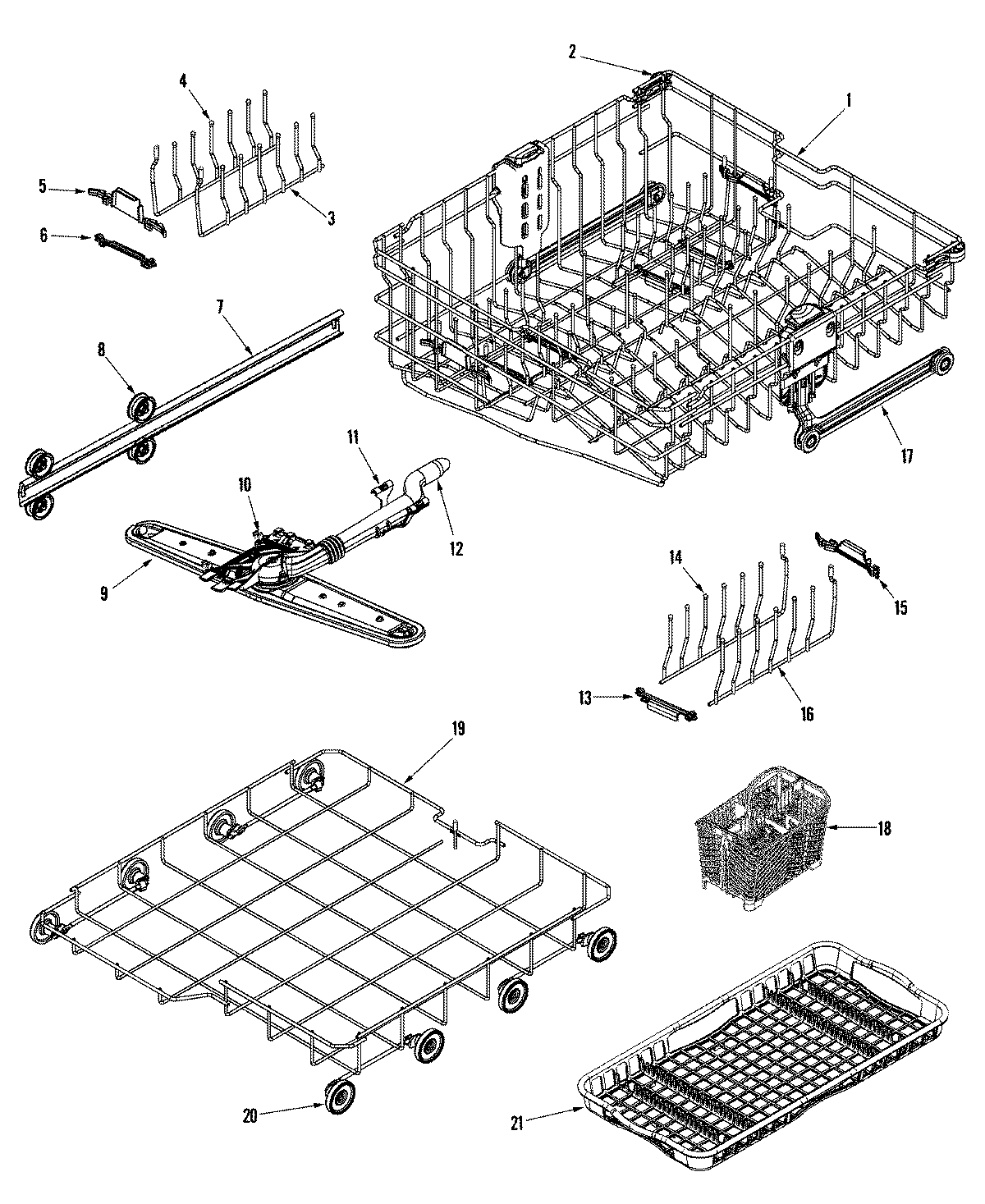

MDB9600AWB 05 – TRACK & RACK ASSEMBLY (MIDDLE/LWR)

Products

Position	Product
1	MAY 99003207
1	MAY 99002727
2	MAY 99002853
5	MAY 99002737
7	WPW10261227 Whirlpool Dishwasher Stop Assembly
7	TRACK, RACK
8	WP99002947 Whirlpool Tub Wheel
8	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
9	MAY 99002739
9	SCREW, TRUSS HEAD (10-18X.75)
10	MAY 99002732
11	MAY 99002758
12	MAY 99002793
13	WP99002735 Whirlpool Tine Clip
15	MAY 99002736
16	SEE NOTE GROUND WIRE, GREEN
17	MAY 99003008
17	MAY 99002783
17	MAY 99002782
17	MAY 99003009
17	99003178 Whirlpool Dishwasher Adjuster Lever (Blue)
17	MAY 99003011
17	MAY 99003020
17	MAY 99003010
18	MAY 99002731
18	6-918651 Whirlpool Silverware Basket
19	MAY 99002905
19	MAY 99002728
19	MAY 99002962
20	WP99002780 Whirlpool Lower Wheel Assembly
21	MAY 99002748
