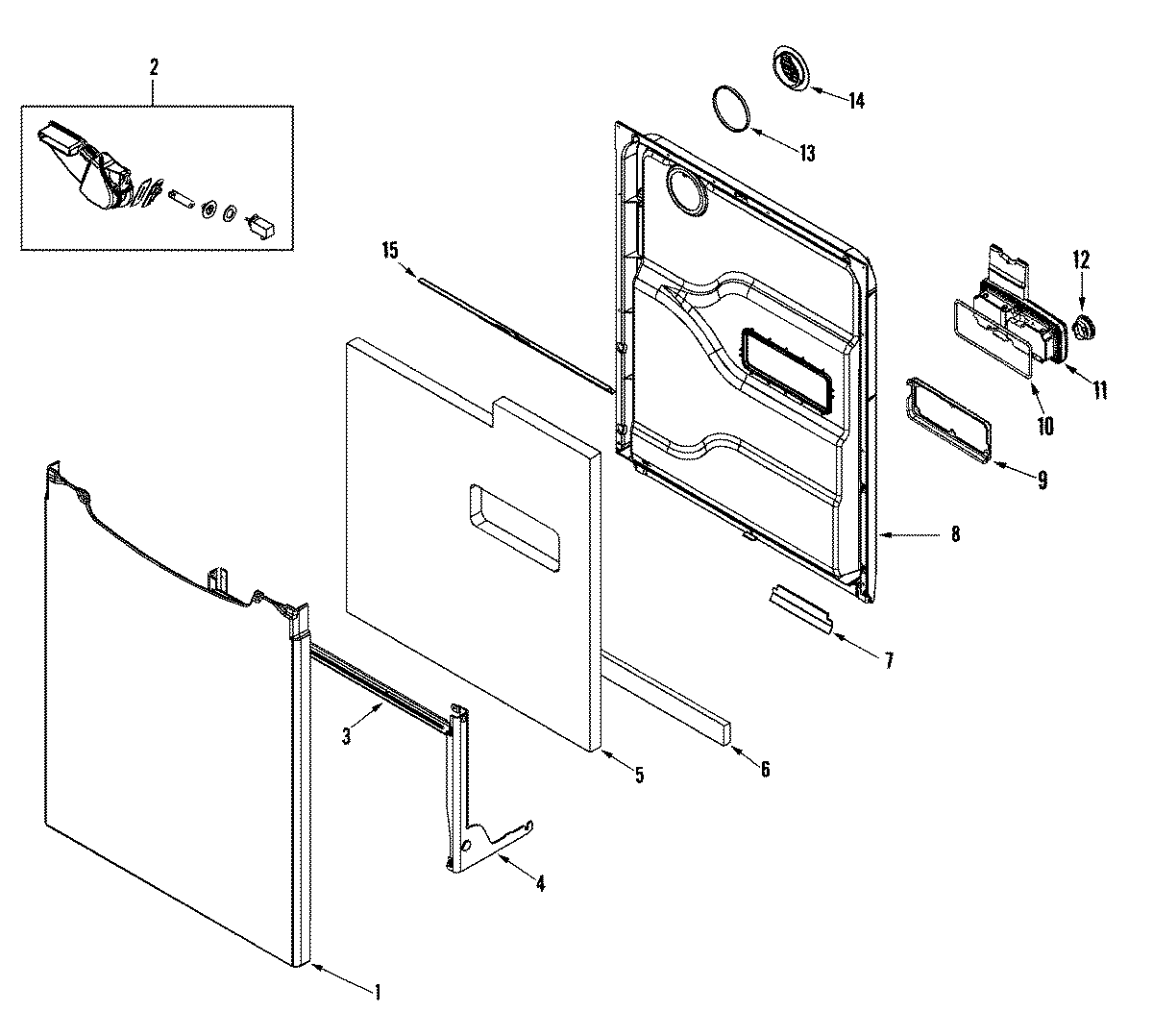

| 1 | Panel, Front Deco (Bisque) |
| 2 | VENT HOUSING ASSEMBLY |
| 3 | MAY 99002604 |
| 4 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 4 | MAY 99002929 |
| 4 | MAY 99001075 |
| 4 | WPW10118637 Whirlpool Dishwasher Bracket |
| 5 | INSULATION, DOOR |
| 6 | WPW10117748 Whirlpool Dishwasher Insulation Pad |
| 7 | WP99002589 Whirlpool Dishwasher Door Seal |
| 8 | MAY 99002776 |
| 8 | DOOR, INNER (W/DAMPER) |
| 9 | 6-918900 Whirlpool Dishwasher Bracket |
| 9 | SCREW, No.8X1/2 HEX WASHER HEAD |
| 10 | MAY 99002270 |
| 11 | MAY 99002611 |
| 12 | WP99002614 Whirlpool Dishwasher Rinse Knob |
| 13 | MAY 99002186 |
| 14 | 99002590 Whirlpool Dishwasher Door Vent Bezel |
| 15 | WPY912620 Whirlpool Dishwasher Screw |
| 15 | MAY 99002586 |
