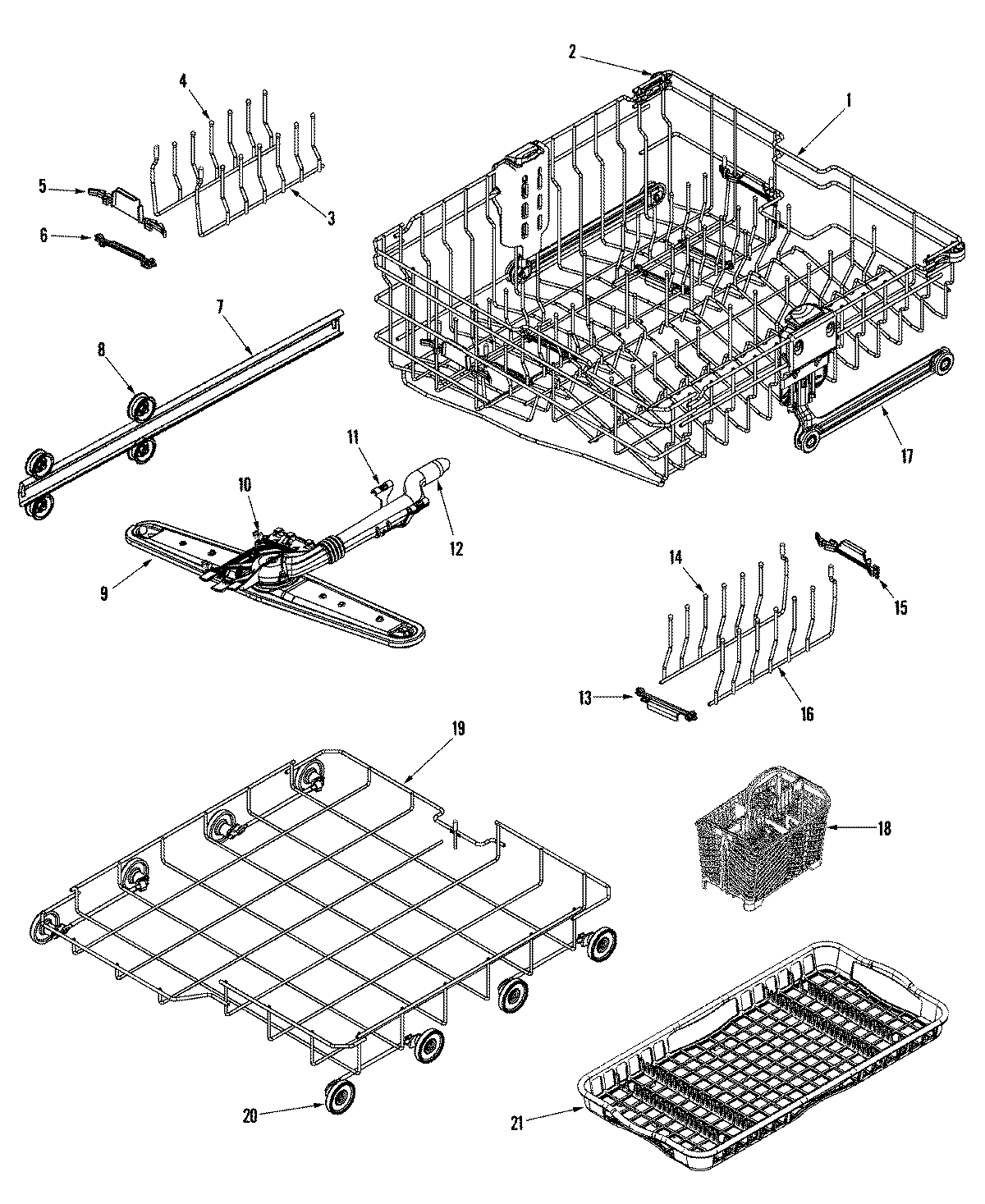

MDB9600AWQ 05 – TRACK & RACK ASSEMBLY (MIDDLE/LWR)

MDB9600AWQ 05 – TRACK & RACK ASSEMBLY (MIDDLE/LWR)

Written by

in

MDB9600AWQ 05 – TRACK & RACK ASSEMBLY (MIDDLE/LWR)

Products

PositionProduct
1MAY 99003207
1MAY 99002727
2MAY 99002853
5MAY 99002737
7WPW10261227 Whirlpool Dishwasher Stop Assembly
7TRACK, RACK
8WP99002947 Whirlpool Tub Wheel
8WPY912798 Whirlpool Dishwasher Tub Washer Wheel
9MAY 99002739
9SCREW, TRUSS HEAD (10-18X.75)
10MAY 99002732
11MAY 99002758
12MAY 99002793
13WP99002735 Whirlpool Tine Clip
15MAY 99002736
16SEE NOTE GROUND WIRE, GREEN
17MAY 99003008
17MAY 99002783
17MAY 99002782
17MAY 99003009
1799003178 Whirlpool Dishwasher Adjuster Lever (Blue)
17MAY 99003011
17MAY 99003020
17MAY 99003010
18MAY 99002731
186-918651 Whirlpool Silverware Basket
19MAY 99002905
19MAY 99002728
19MAY 99002962
20WP99002780 Whirlpool Lower Wheel Assembly
21MAY 99002748
