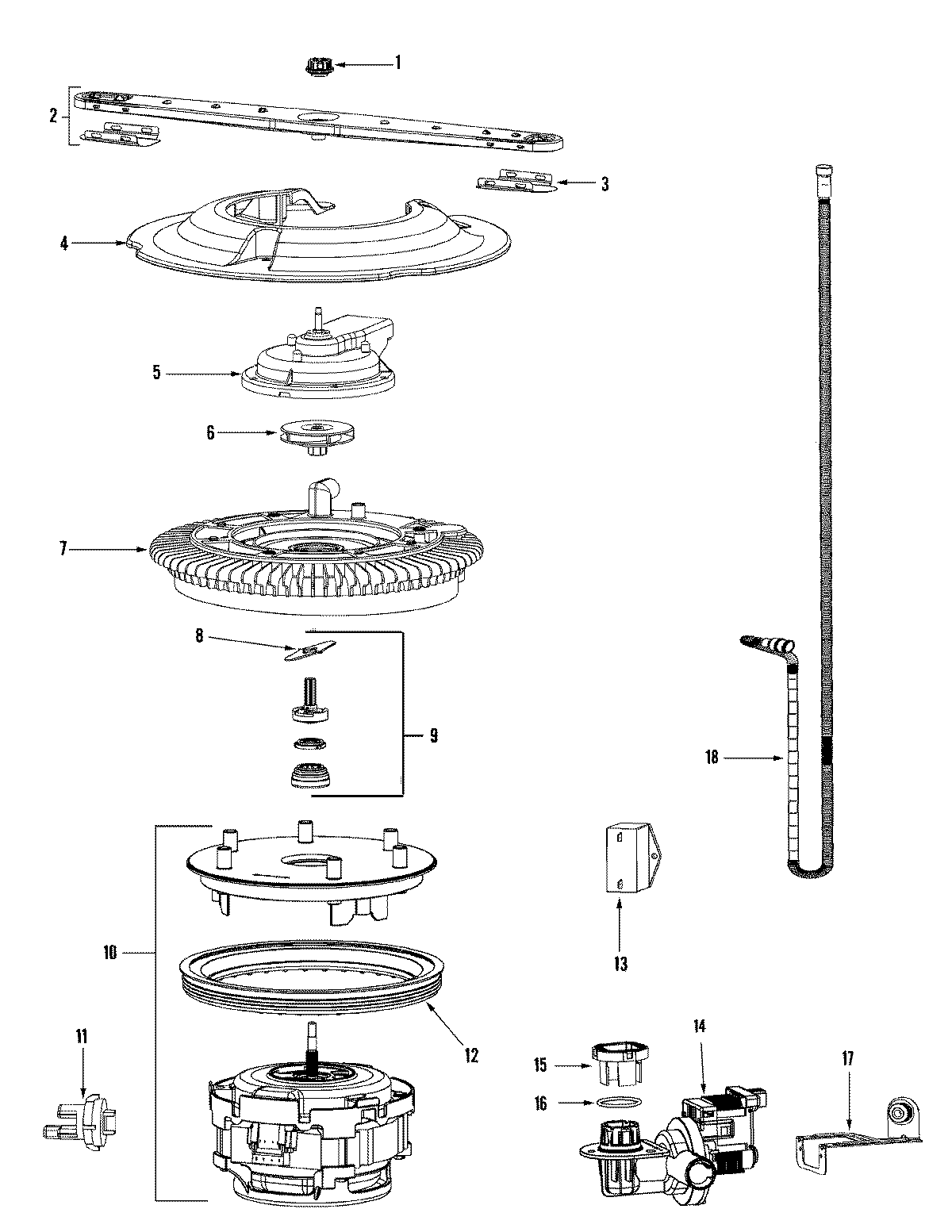

MDB9601AWQ 01 – PUMP & MOTOR

MDB9601AWQ 01 – PUMP & MOTOR

Written by

in

MDB9601AWQ 01 – PUMP & MOTOR

Products

PositionProduct
2WP6-917642 Whirlpool Dishwasher Wash Arm
3MAY 99002653
4WPW10166788 Whirlpool Dishwasher Filter Frame
4MAY 99002666
5SCREW, DISCHARGE HOUSING
5DISCHARGE HOUSING ASSY (UPR)
6MAY 99002660
6WP99002659 Whirlpool Impeller
7WPW10192799 Whirlpool Dishwasher Accumulator
7SCREW, STAINLESS PAN HEAD
8MAY 99003427
9MAY 99003341
10WASH MOTOR ASSY SEAL NOT INCL
11WP3400065 Whirlpool Refrigerator Screw
11WPW10120019 Whirlpool Dishwasher Sensor
1199002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
12GASKET, PUMP
13MAY 99003440
13CAPACITOR, MOTOR
13SCREW 10-32X.400 (T-20 HEAD)
14MAY 99002750
14MAY 99002815
15MAY 99003309
16MAY 99002857
17MAY 99002657
17MAY 99002752
18WP99002656 Whirlpool Dishwasher Drain Clamp
18WP99002652 Whirlpool Drain Hose
