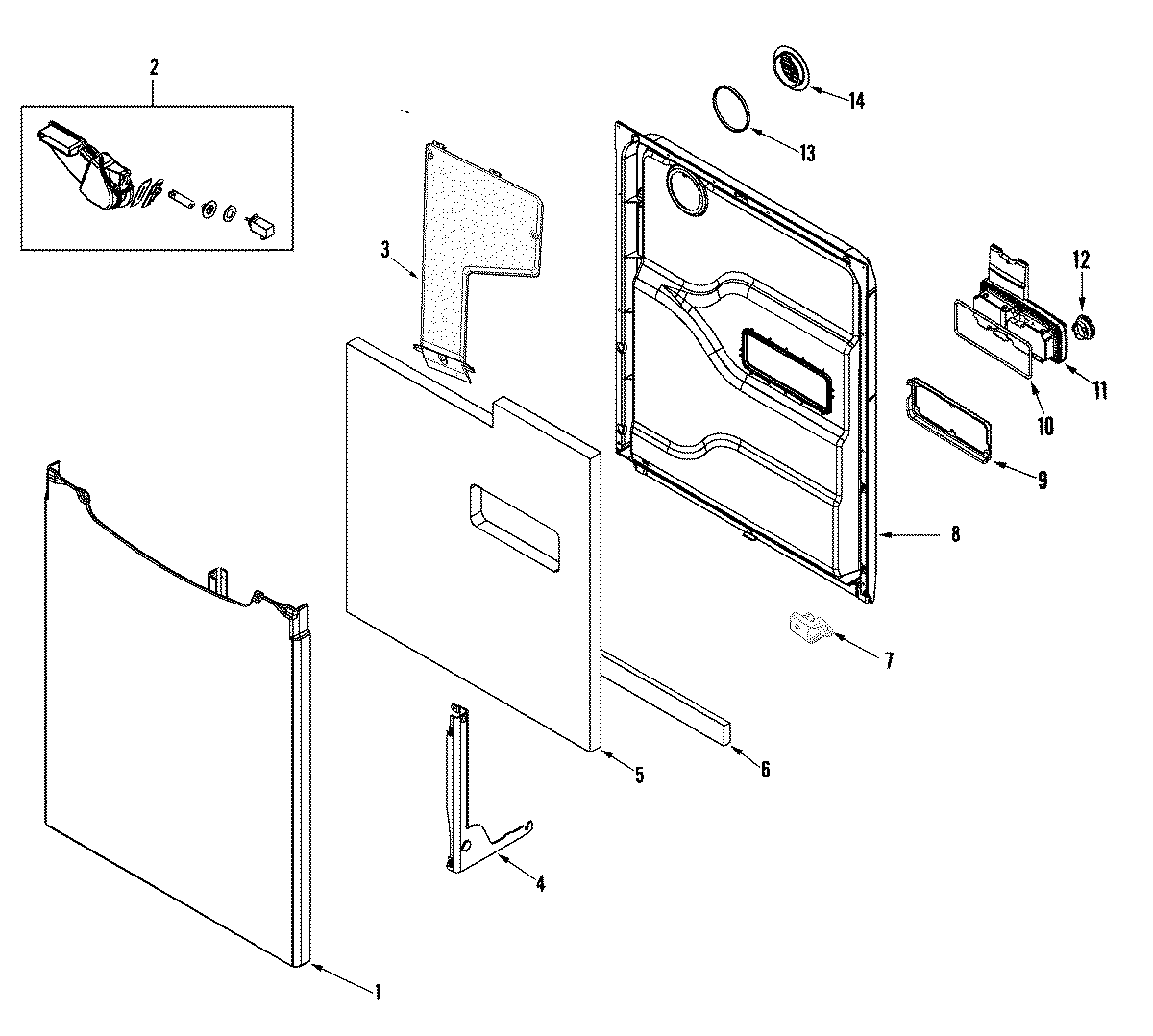

MDB9601AWS 02 – DOOR

MDB9601AWS 02 – DOOR

Written by

in

MDB9601AWS 02 – DOOR

Products

PositionProduct
1MAY 99003534
2VENT HOUSING ASSEMBLY
4WPW10118637 Whirlpool Dishwasher Bracket
4MAY 99001075
4MAY 99002929
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7DOOR LINER, SECONDARY
7MAY 99003541
8DOOR, INNER (W/DAMPER)
8MAY 99003482
8Foam Strip(Long)
8WPY912620 Whirlpool Dishwasher Screw
9SCREW, No.8X1/2 HEX WASHER HEAD
96-918900 Whirlpool Dishwasher Bracket
10MAY 99002270
11Dispenser, Rinse Aid
12WP99002614 Whirlpool Dishwasher Rinse Knob
13MAY 99002186
1499002590 Whirlpool Dishwasher Door Vent Bezel
