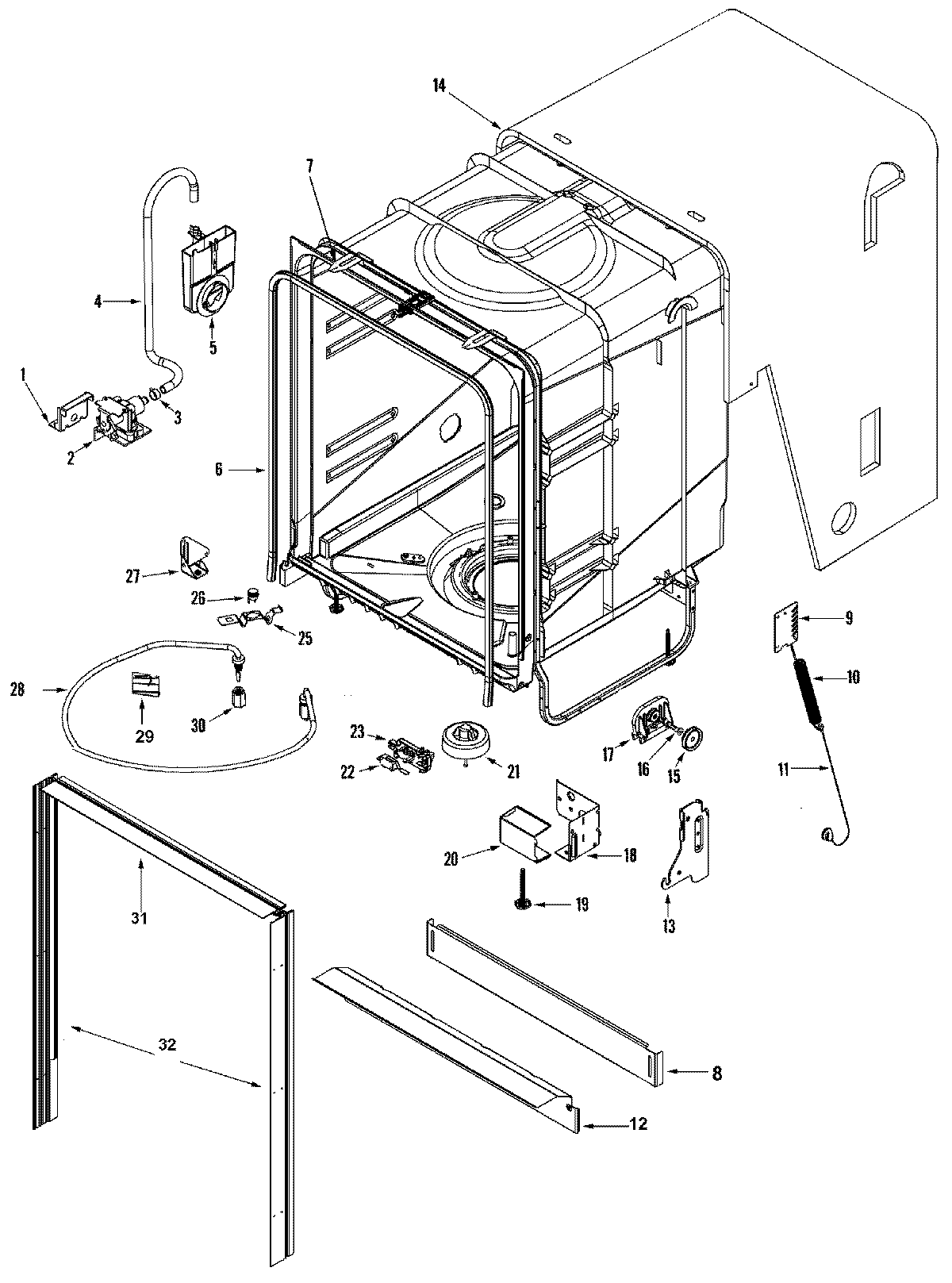

MDB9601AWW 07 – TUB

Products

Position	Product
1	MAY 99002629
2	W11082871 Whirlpool Dishwasher Inlet Valve
2	MAY 99002553
3	WP596669 Whirlpool Hose Clamp
4	WP99002852 Whirlpool Dishwasher Injector Hose
5	MAY 99002645
5	Grill,Air/Water Inlet
5	MAY 99002955
5	MAY 99002954
5	MAY 99002867
5	MAY 99002646
6	MAY 99002588
7	MAY 99002648
8	MAY 99002766
8	MAY 99002698
9	6-918346 Whirlpool Dishwasher Bracket
10	WP99002598 Whirlpool Door Spring
11	WP99003446 Whirlpool Door Cable
12	SUPPORT, FRONT (W/SEALS)(WHT)
12	SCREW, ACCESS PANEL
12	GAP SEAL, TOE KICK (WHT)
13	MAY 99002927
13	MAY 99002928
14	FASTENER, INSULATION
14	WPW10223013 Whirlpool Dishwasher Insulation Pad
15	WP99002608 Whirlpool Dishwasher Cable Roller
16	MAY 99003688
16	MAY 99003687
16	MAY 99002609
17	MAY 99003686
17	MAY 99002607
18	BRACKET, JUNCTION BOX SUPPORT
19	WPW10143258 Whirlpool Dishwasher Leg Leveler
20	MAY 99002638
20	MAY 912365
21	MAY 99002630
22	MAY 99002631
23	WP3390631 Whirlpool Screw
23	MAY 99002632
25	MAY 99002634
26	MAY 99002633
27	SCREW 10-32X.400 (T-20 HEAD)
27	BRACKET, SUPPORT (LT)
28	W10283681 Whirlpool Dishwasher Heater
28	MAY 99002973
29	WP6-917262 Whirlpool Dishwasher Heater Bracket
30	MAY Y913079
30	WP6-920168 Whirlpool Dishwasher Heater Nut
31	MAY 99002723
32	TRIM STRIP ASSEMBLY (RT)
32	MAY 99002692
32	TRIM STRIP ASSEMBLY (LT)
32	MAY 99003451
32	MAY 99003450
