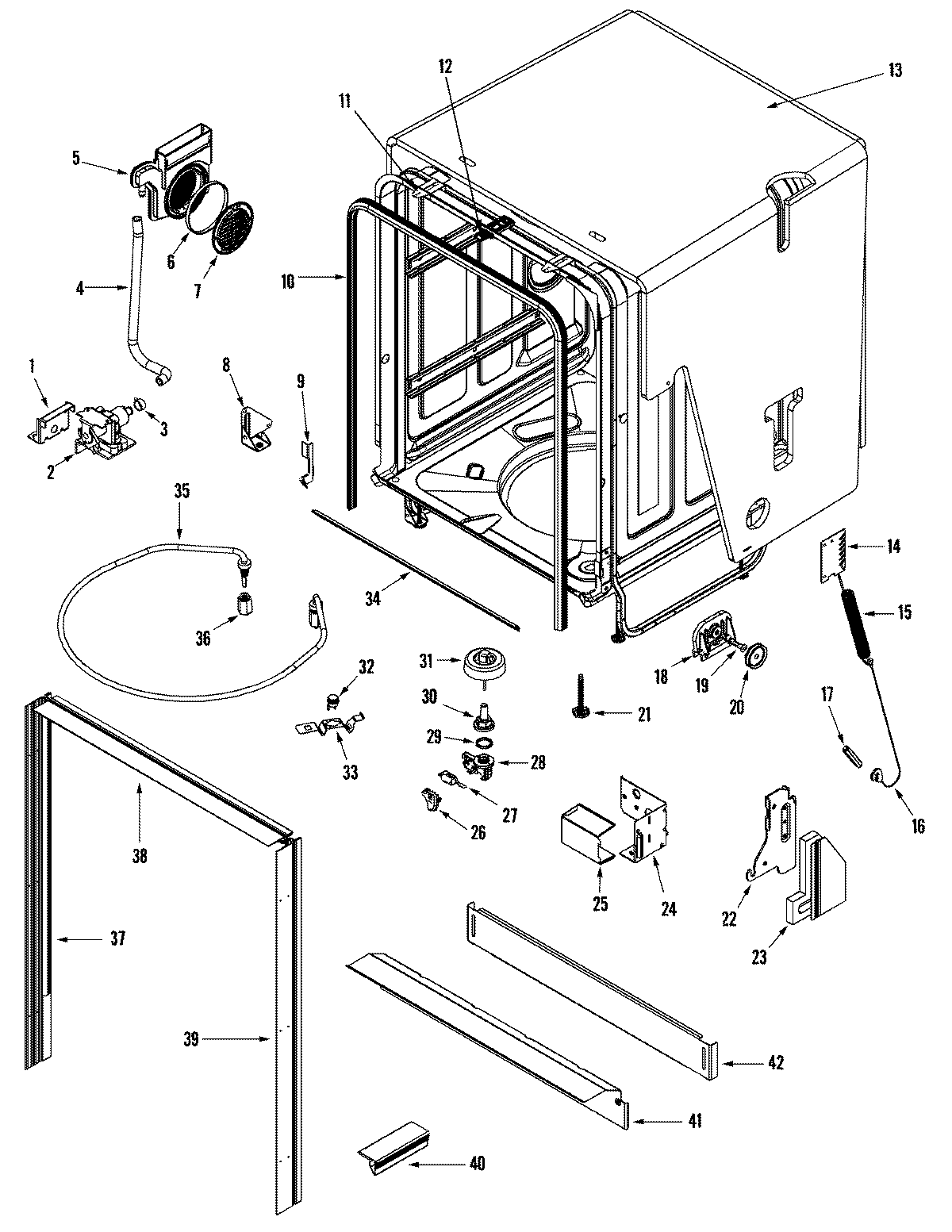

MDB9750AWW 07 – TUB

MDB9750AWW 07 – TUB

Written by

in

MDB9750AWW 07 – TUB

Products

PositionProduct
1MAY 99002629
2W11082871 Whirlpool Dishwasher Inlet Valve
2MAY 99002553
3WP596669 Whirlpool Hose Clamp
4WP99002852 Whirlpool Dishwasher Injector Hose
5MAY 99003028
6WP99002150 Whirlpool Dishwasher Air Seal
7W10259618 Whirlpool Dishwasher Deflector
8BRACKET, SUPPORT (LT)
9MAY 99003038
9WP99003039 Whirlpool Dishwasher Trim
10WP99003337 Whirlpool Door Seal
11MAY 99002648
12MAY 99003357
12WP99002644 Whirlpool Dishwasher Door Striker
13FASTENER, INSULATION
13WPW10223013 Whirlpool Dishwasher Insulation Pad
146-918346 Whirlpool Dishwasher Bracket
15WP99002598 Whirlpool Door Spring
16WP99003446 Whirlpool Door Cable
18MAY 99003688
18MAY 99003687
18MAY 99002607
18MAY 99003686
19MAY 99002609
20WP99002608 Whirlpool Dishwasher Cable Roller
21WPW10143258 Whirlpool Dishwasher Leg Leveler
22MAY 99002928
22MAY 99002927
23BACKER, HINGE SEAL (LT)
23BACKER, HINGE SEAL (RT)
24BRACKET, JUNCTION BOX SUPPORT
24SCREW 10-32X.400 (T-20 HEAD)
25MAY 99002638
25MAY 912365
26MAY 99003079
27MAY 99002631
28MAY 99003031
29W10833055 Whirlpool Dishwasher Standpipe
30WPW10268755 Whirlpool Dishwasher Float
31MAY 99002630
32MAY 99002633
33MAY 99001008
34WP99003041 Whirlpool Dishwasher Trim
35MAY 99002973
35W10283681 Whirlpool Dishwasher Heater
36MAY 99003033
37MAY 99003034
38MAY 99003036
39MAY 99002692
39MAY 99003035
40GAP SEAL, TOE KICK (WHT)
41SUPPORT, FRONT (W/SEALS)(WHT)
42SCREW, ACCESS PANEL
42MAY 99002766
42MAY 99002698
43MAY 99003087
