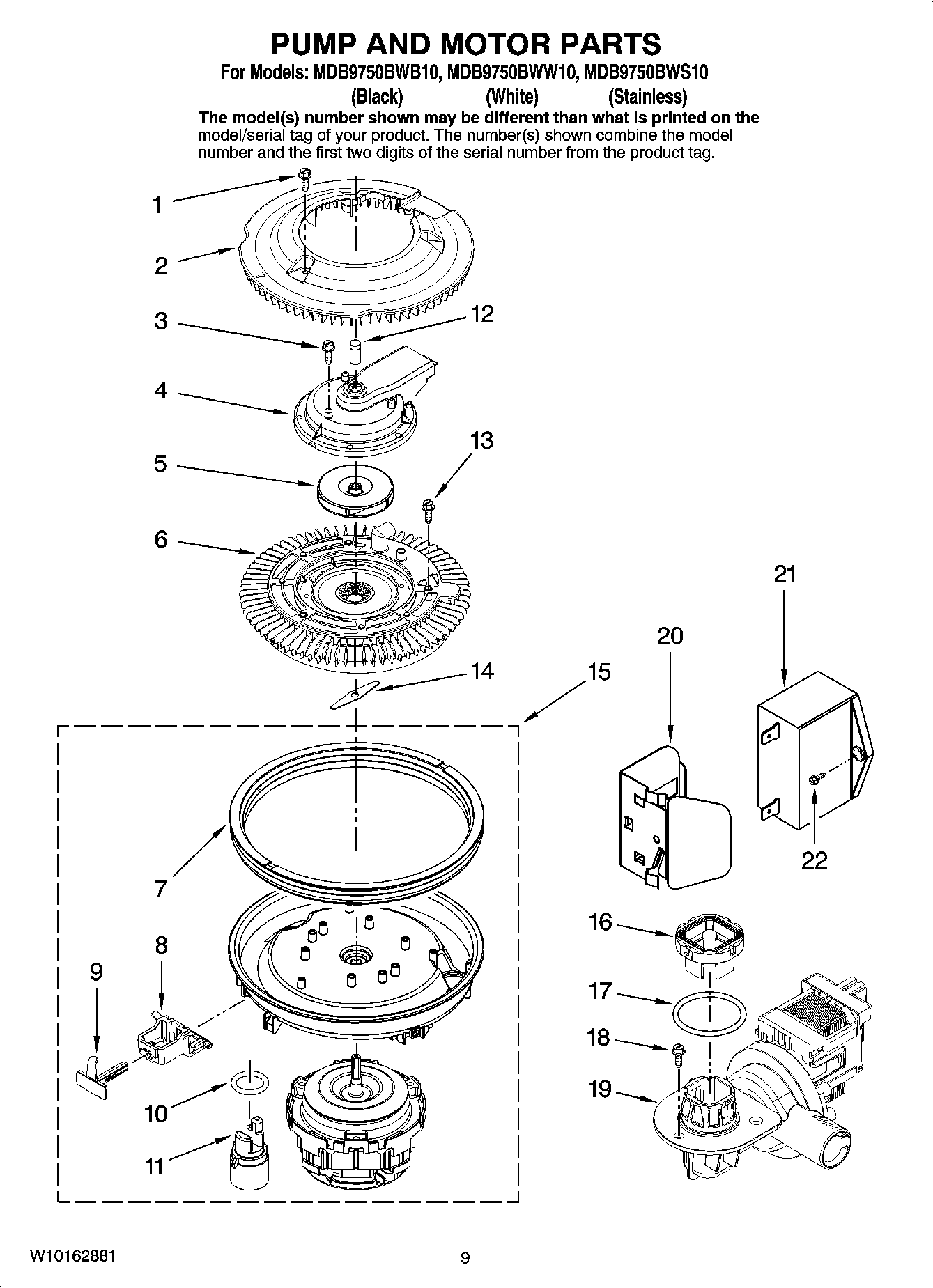

MDB9750BWB10 08 – PUMP AND MOTOR PARTS

MDB9750BWB10 08 – PUMP AND MOTOR PARTS

Written by

in

MDB9750BWB10 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MAY 99002666
2WPW10166788 Whirlpool Dishwasher Filter Frame
3SCREW, STAINLESS PAN HEAD
4DISCHARGE HOUSING ASSY (UPR)
5WP99002659 Whirlpool Impeller
6WPW10192799 Whirlpool Dishwasher Accumulator
712002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8MAY 99003056
9MAY 99003057
1099002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11MAY 99003613
12MAY 99003697
13SCREW, DISCHARGE HOUSING
14MAY 99003427
15MAY 6-919963
15WASH MOTOR ASSY SEAL NOT INCL
16MAY 99003309
17MAY 99002857
18SCREW, TRUSS HEAD (10-18X.75)
19DRAIN PUMP ASSEMBLY
20MAY 99003440
21CAPACITOR, MOTOR
22SCREW 10-32X.400 (T-20 HEAD)
