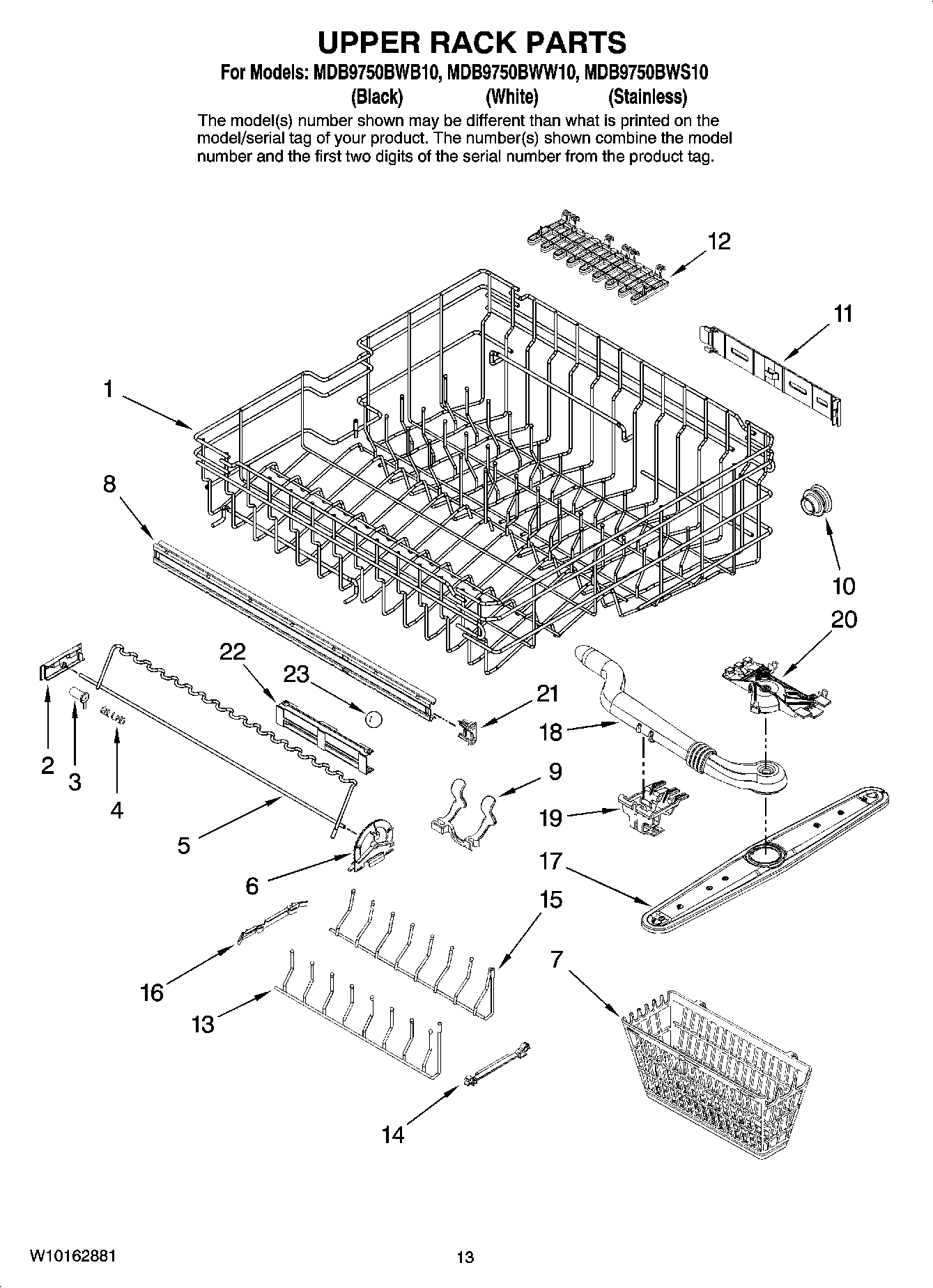

MDB9750BWB10 10 – UPPER RACK PARTS

Products

Position	Product
1	MAY W10120532
3	MAY 99002714
4	MAY 99002715
5	MAY 99002713
6	MAY 99002711
7	W11175758 Whirlpool Dishwasher Basket Ware
8	MAY 99003066
10	WP99003147 Whirlpool Dishwasher Upper Rack Wheel
11	MAY 99003052
11	MAY 99003053
12	MAY 99002671
13	WP99003496 Whirlpool Convertible Row Tine
14	WP99002709 Whirlpool Tine Pivot Clip
16	WP99002710 Whirlpool Dishwasher Fold-Down Latch
17	WP99003070 Whirlpool Dishwasher Wash Arm
18	WASH MANIFOLD ASSY (UPR)
19	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
20	CLIP, UPR WASH MANIFOLD (FRT)
21	WP99003281 Whirlpool Gray Rail Stop
22	MAY 99003069
23	WP99003068 Whirlpool Dishwasher Bearing
