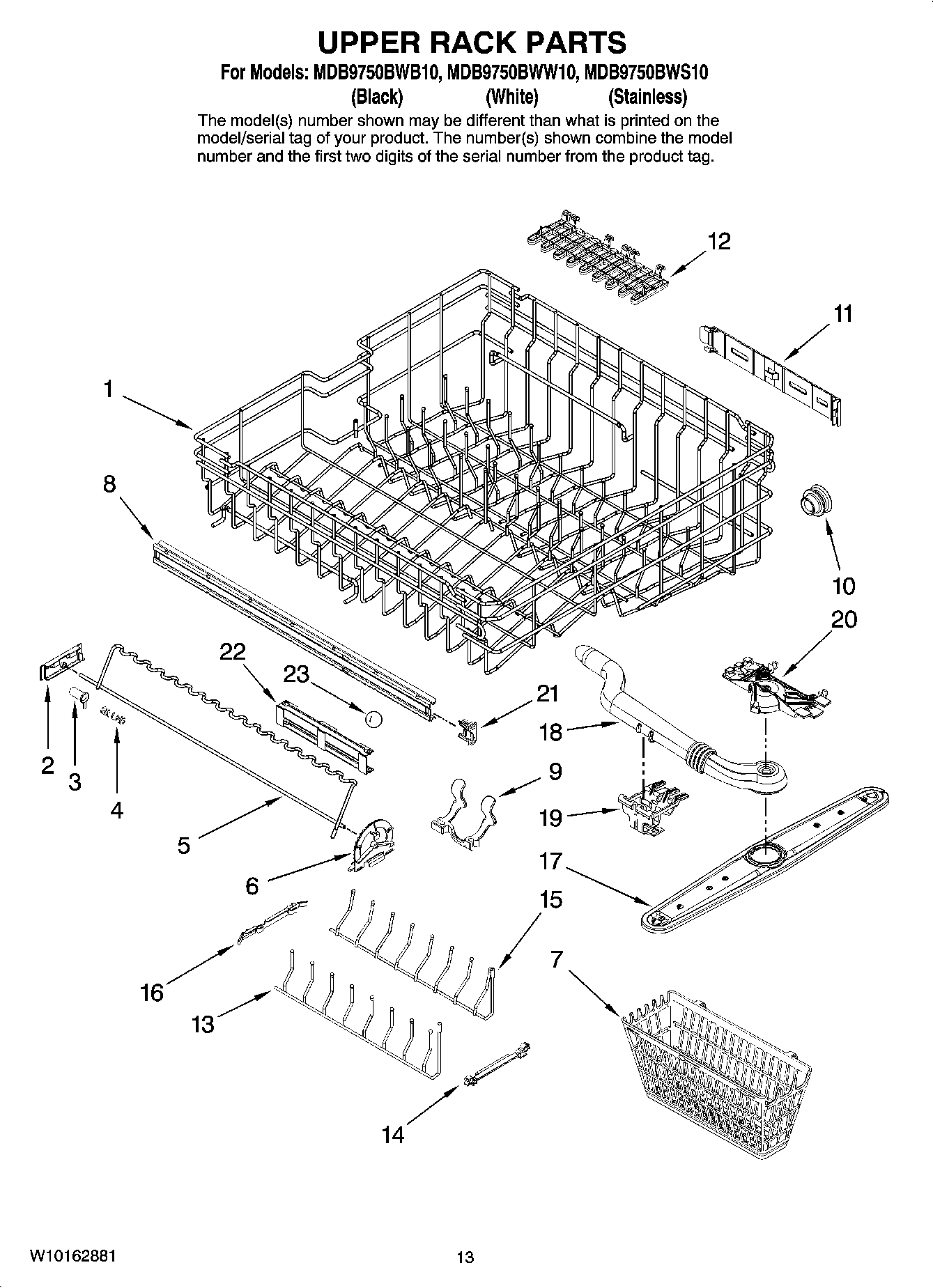

MDB9750BWS10 10 – UPPER RACK PARTS

MDB9750BWS10 10 – UPPER RACK PARTS

Written by

in

MDB9750BWS10 10 – UPPER RACK PARTS

Products

PositionProduct
1MAY W10120532
3MAY 99002714
4MAY 99002715
5MAY 99002713
6MAY 99002711
7W11175758 Whirlpool Dishwasher Basket Ware
8MAY 99003066
10WP99003147 Whirlpool Dishwasher Upper Rack Wheel
11MAY 99003052
11MAY 99003053
12MAY 99002671
13WP99003496 Whirlpool Convertible Row Tine
14WP99002709 Whirlpool Tine Pivot Clip
16WP99002710 Whirlpool Dishwasher Fold-Down Latch
17WP99003070 Whirlpool Dishwasher Wash Arm
18WASH MANIFOLD ASSY (UPR)
1999002945 Whirlpool Dishwasher Upper Wash Manifold Clip
20CLIP, UPR WASH MANIFOLD (FRT)
21WP99003281 Whirlpool Gray Rail Stop
22MAY 99003069
23WP99003068 Whirlpool Dishwasher Bearing
