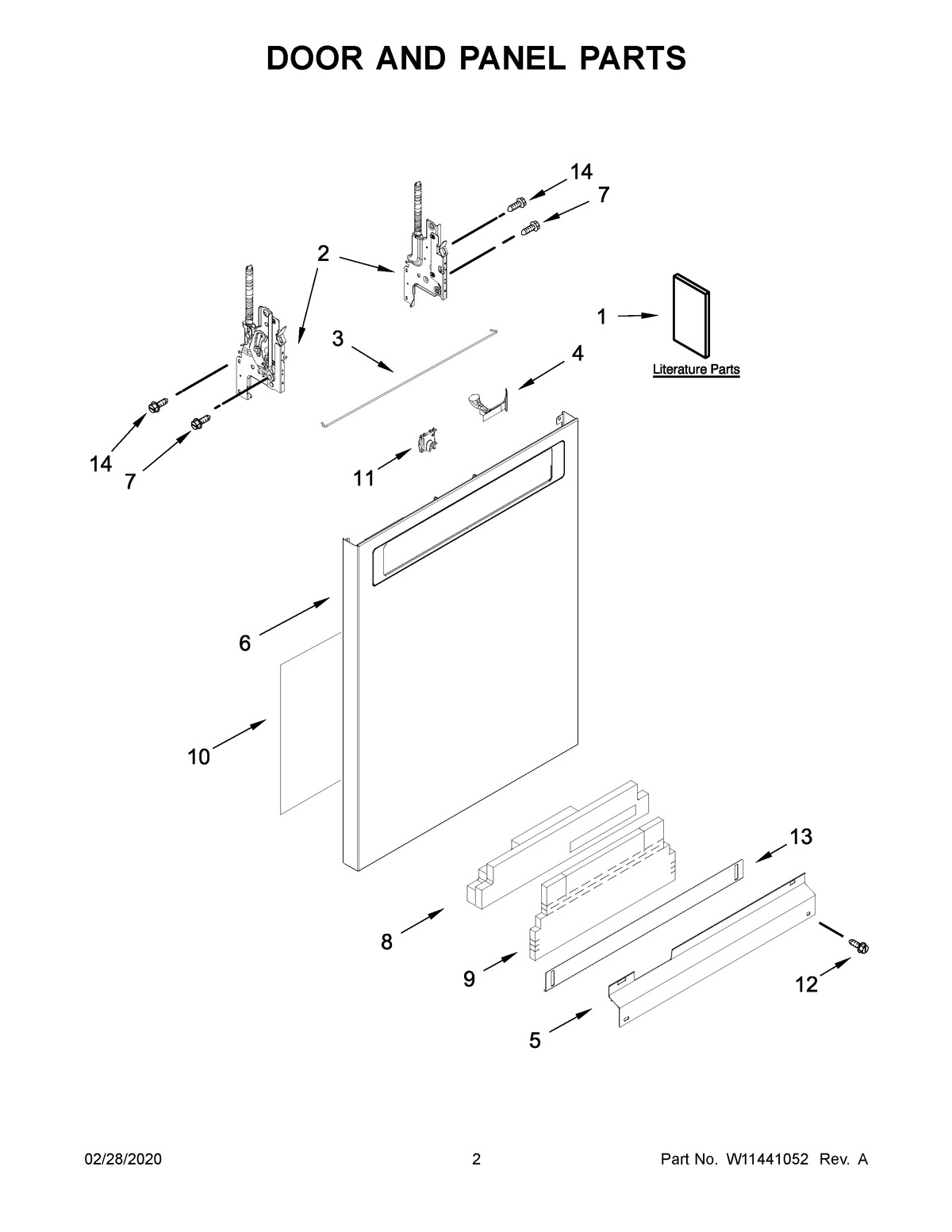

MDB9959SKZ0 02 – DOOR AND PANEL PARTS

MDB9959SKZ0 02 – DOOR AND PANEL PARTS

Written by

in

MDB9959SKZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W11404475
1OWNERS MANUAL
1BTECH SHEET
2ARM, HINGE (LEFT HAND)
2AARM, HINGE (RIGHT HAND)
3CROSS BRACE, DOOR
4LIGHT PIPE
5ACCESS PANEL (BLACK)
6MAY W11367093
7SCREW
8INSULATION, MULTI-LAYER
9INSULATION, SINGLE LAYER
10INSULATION, FRONT PANEL
11BARREL NUT, FRONT PANEL
12SCREW, BLACK
13TOE PANEL (BLACK)
14MAY W10309090
