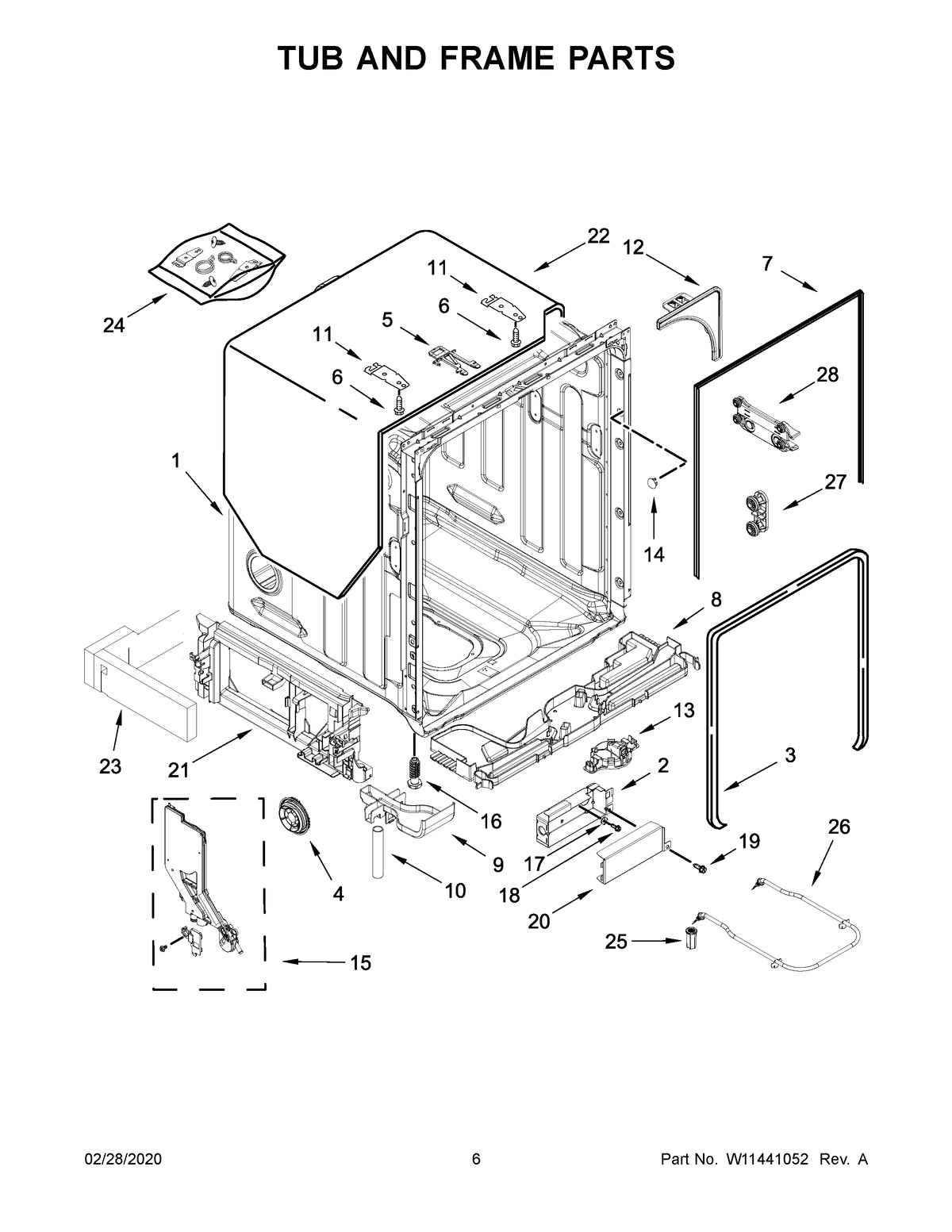

MDB9959SKZ0 04 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (INCLUDES GASKET)
2BASE, TERMINAL BOX
3GASKET, TUB
4NUT, WATER INLET
5STRIKE, LATCH
6SCREW
7SEAL, CABINET
8DRIP TRAY
9FUNNEL, OVERFILL PROTECTION
10FUNNEL EXTENSION
11MAY 8269145
12COVER, TUB CORNER
13FLOAT SWITCH
14PLUG, TUB
15WATER INLET ASSEMBLY
16LEG, LEVELING
17WASHER, PRONGED CUP
18MAY 3400014
19MAY W10277003
20COVER, TERMINAL BOX
21SIDE SUPPORT, TUB (LEFT HAND)
21ASIDE SUPPORT, TUB (RIGHT HAND)
22SHIELD, TUB SOUND
23INSULATION, U-WRAP
24MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
25NUT, HEATER TERMINAL
26HEATER ELEMENT ASSEMBLY
27TUB MOUNT, UPPER RACK
28TUB MOUNT, THIRD LEVEL RACK (LEFT HAND)
28ATUB MOUNT, THIRD LEVEL RACK (RIGHT HAND)
