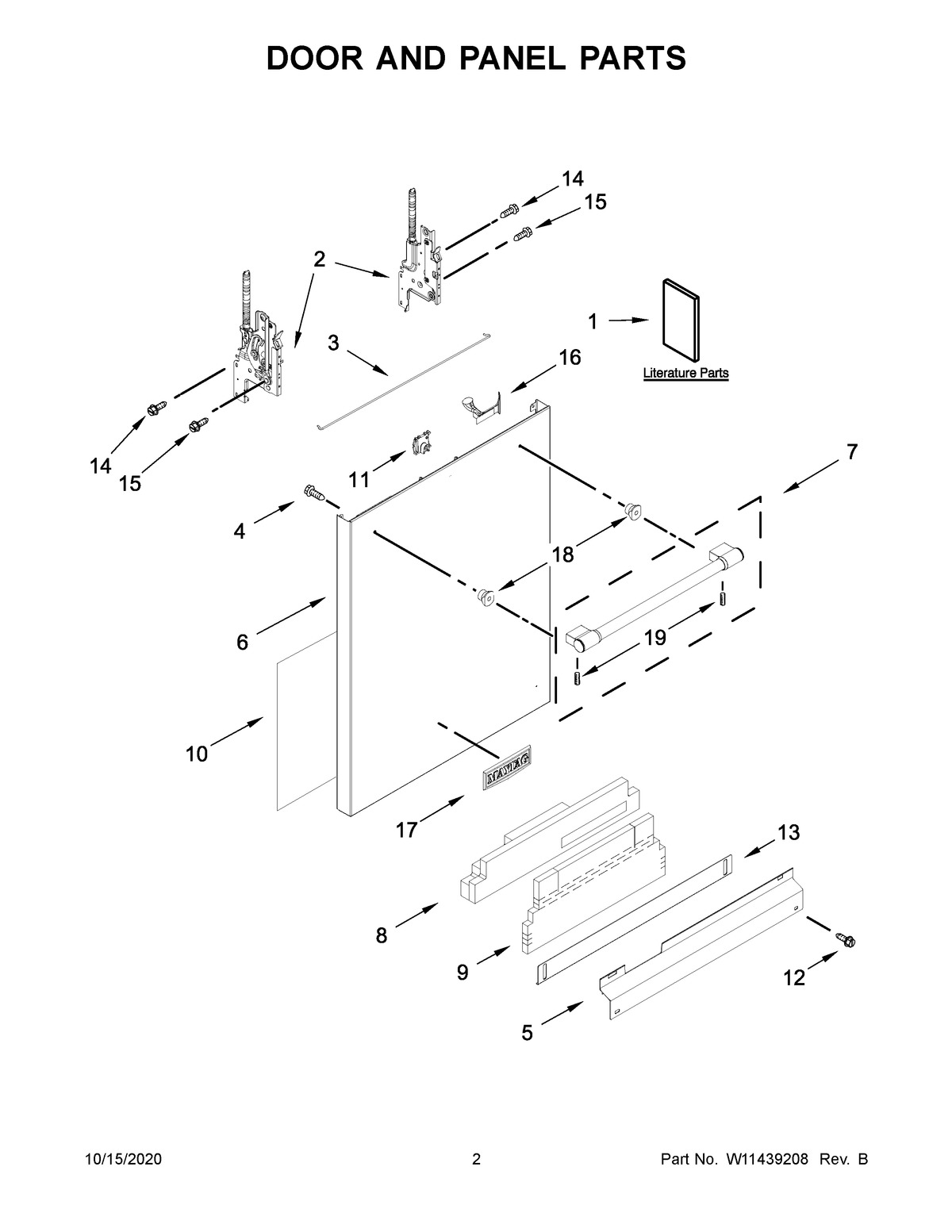

MDB9979SKZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AMAY W11404475
1OWNERS MANUAL
1BTECH SHEET
2AARM, HINGE (RIGHT HAND)
2ARM, HINGE (LEFT HAND)
3CROSS BRACE, DOOR
4MAY W10316572
5ACCESS PANEL (BLACK)
6PANEL, FRONT (INCLUDES 11, 16 & 17) (STAINLESS)
7HANDLE ASSEMBLY (STAINLESS)
8INSULATION, MULTI-LAYER
9INSULATION, SINGLE LAYER
10INSULATION, FRONT PANEL
11BARREL NUT, FRONT PANEL
12SCREW, BLACK
13TOE PANEL (BLACK)
14MAY W10309090
15SCREW
16LIGHT PIPE
17BADGE
18STUD, MOUNTING
19SET SCREW
