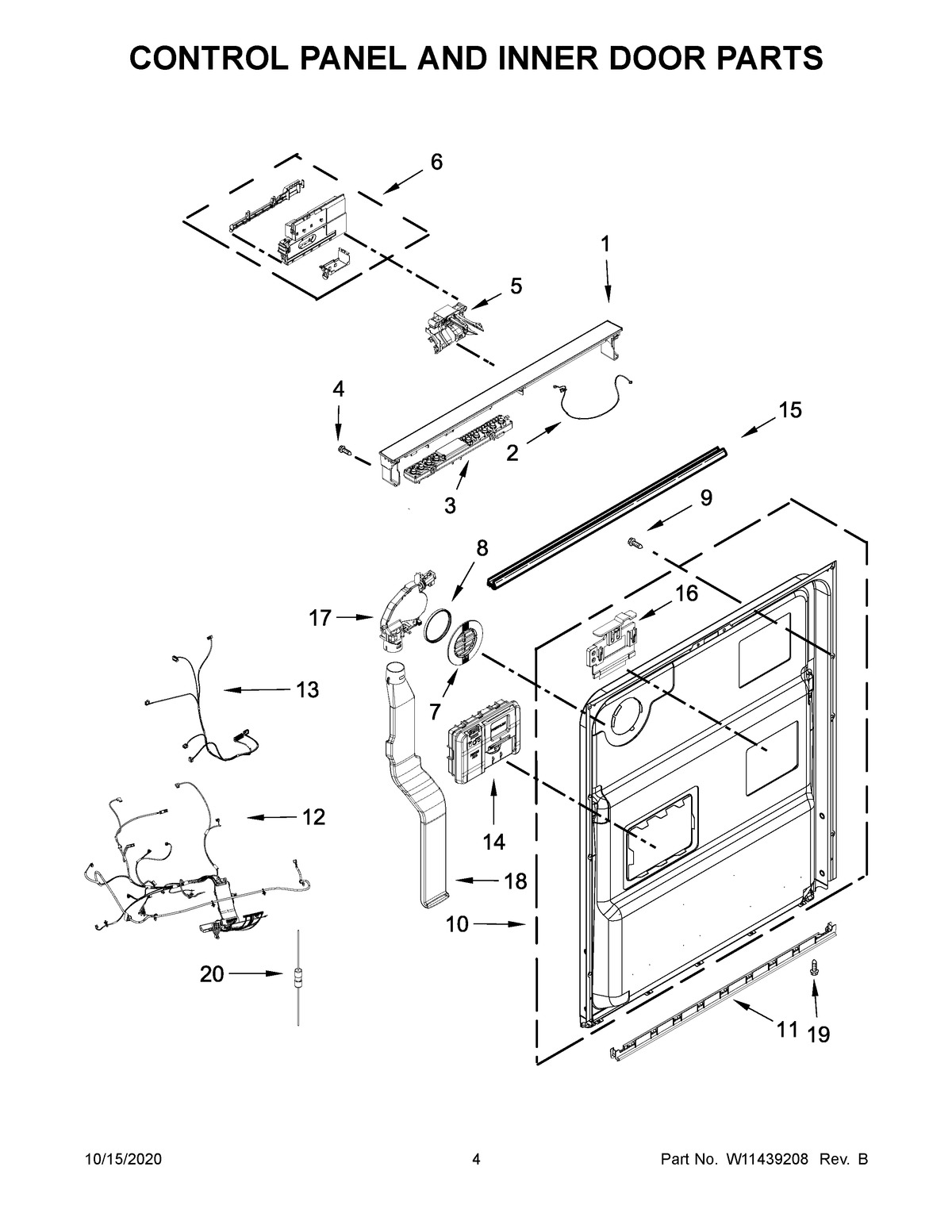

MDB9979SKZ0 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1MAY W11109170
2JUMPER, DOOR
3HOUSING, UI
4SCREW
5LATCH ASSEMBLY (INCLUDES SWITCH)
6MAY W11348055
7BEZEL, VENT (ALSO ORDER GASKET)
8GASKET, VENT
9SCREW
10INNER DOOR ASSEMBLY
11SEAL, DOOR BOTTOM
12WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & FUSE)
13WIRING HARNESS, INNER DOOR
14DISPENSER ASSEMBLY
15SEAL, CONSOLE/DOOR
16HANGER, CONTROL
17VENT ASSEMBLY (ALSO ORDER GASKET)
18DUCT, VENT
19SCREW
20FUSE, IN-LINE
