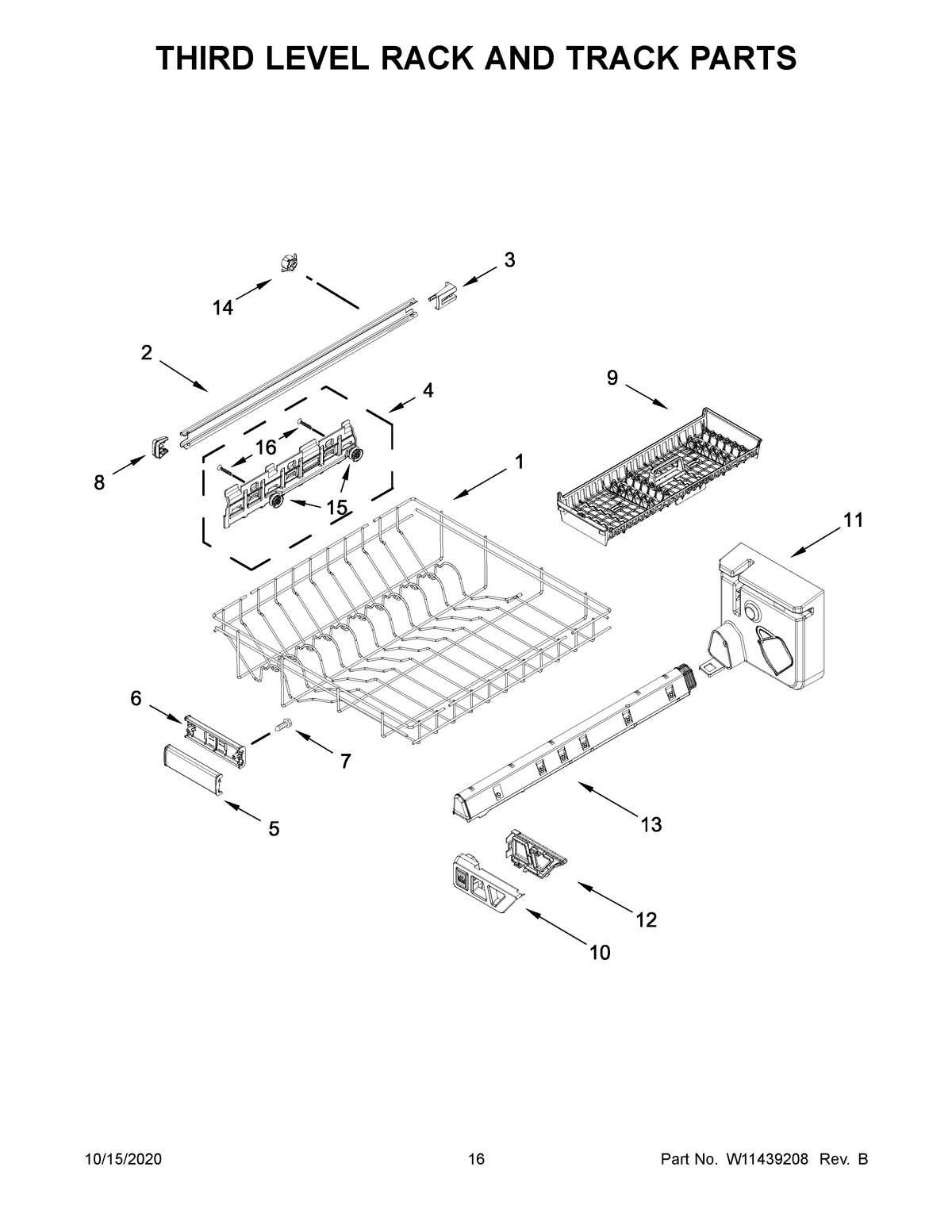

MDB9979SKZ0 09 – THIRD LEVEL RACK AND TRACK PARTS

MDB9979SKZ0 09 – THIRD LEVEL RACK AND TRACK PARTS

Written by

in

MDB9979SKZ0 09 – THIRD LEVEL RACK AND TRACK PARTS

Products

PositionProduct
1RACK, THIRD LEVEL
2TRACK, DISHRACK
3TRACK STOP, REAR
4TRACK MOUNT (LEFT HAND)
4ATRACK MOUNT (RIGHT HAND)
5HANDLE, DISHRACK FRONT
6HANDLE, DISHRACK REAR
7MAY 9741232
8TRACK STOP, FRONT
9SILVERWARE TRAY
10BRACKET, FRONT HANGER
11DRIVE BOX ASSEMBLY, MANIFOLD
12COVER, WASH TUBE
13TUBE, WASH
14NUT, TUB
15WHEEL
16SCREW
