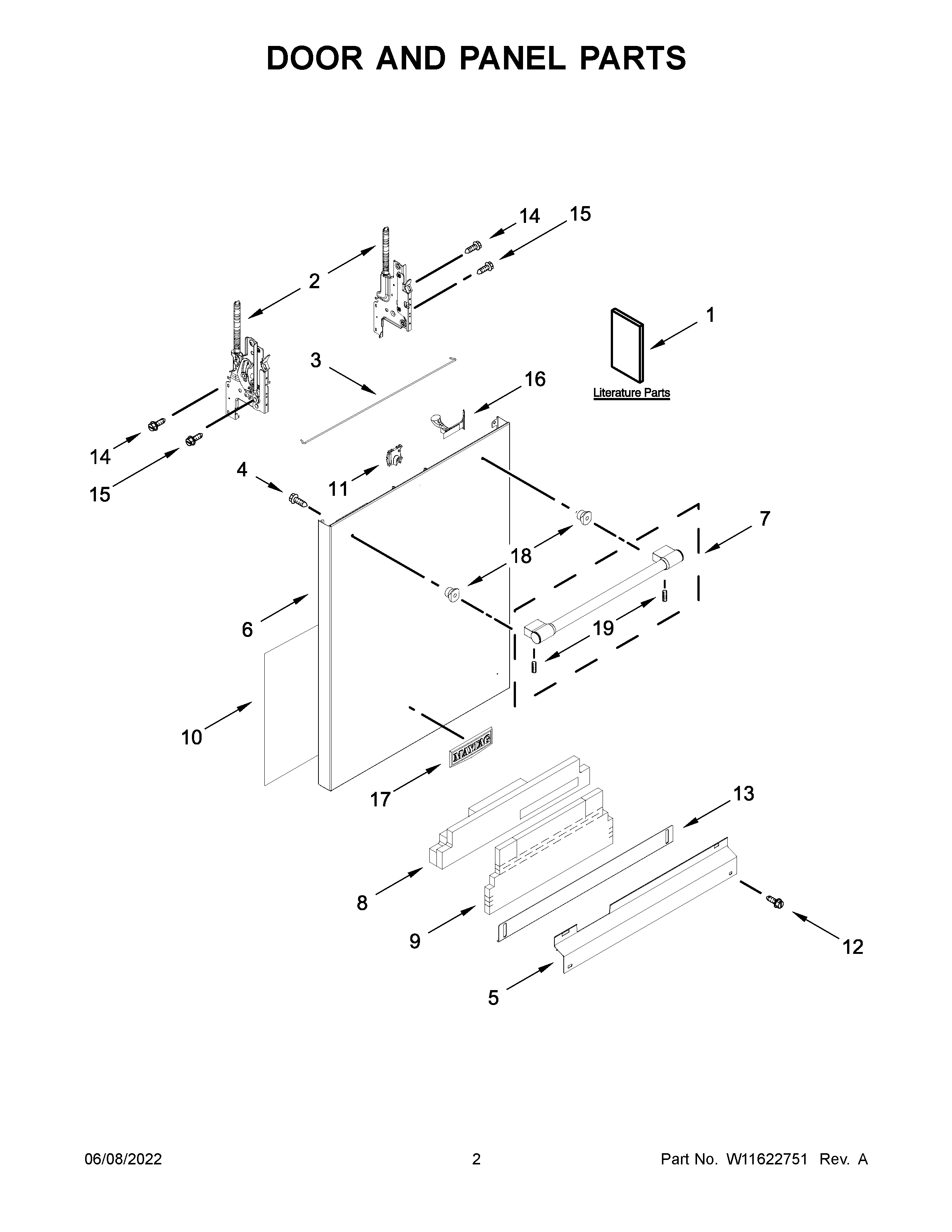

MDB9979SKZ1 02 – DOOR AND PANEL PARTS

MDB9979SKZ1 02 – DOOR AND PANEL PARTS

Written by

in

MDB9979SKZ1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1BTECH SHEET
1OWNERS MANUAL
2AW11712996 Whirlpool Door Hinge
2HINGE-DOOR
3W11377160 Whirlpool Brace Assembly
4W10826179 Whirlpool Dishwasher Screw
5W11545318 Whirlpool Toekick Plate
6W11702835 Whirlpool Panel
7W11094492 Whirlpool Dishwasher Handle
8W11573700 Whirlpool Shield
9W11573704 Whirlpool Dishwasher Shield
10W10919861 Whirlpool Insulation Pad
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13W11579528 Whirlpool Toe Panel
14WPW10309090 Whirlpool Dishwasher Screw
15W11676450 Whirlpool Screw
16W11102920 Whirlpool Indicator Light
17WPW10612925 Whirlpool Microwave Nameplate
18W11157086 Whirlpool Dishwasher Door Handle Stud
19W10917698 Whirlpool Dishwasher Screw
