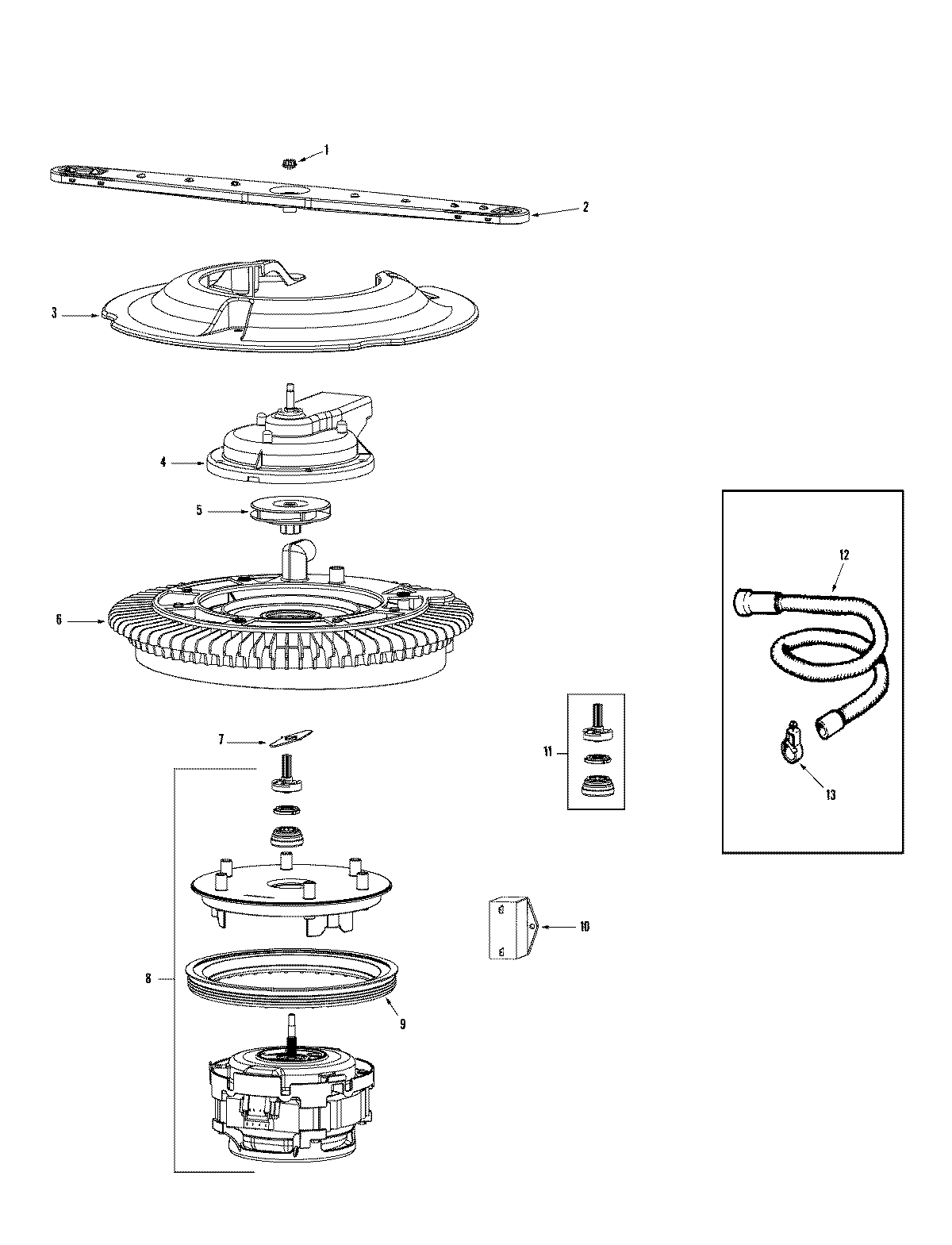

MDBCUBEAWX 02 – PUMP & MOTOR

Products

PositionProduct
1WP99002654 Whirlpool Nut
2WP6-917642 Whirlpool Dishwasher Wash Arm
3WPW10166788 Whirlpool Dishwasher Filter Frame
4SCREW, DISCHARGE HOUSING
4DISCHARGE HOUSING ASSY (UPR)
5WP99002659 Whirlpool Impeller
5MAY 99002660
6SCREW, STAINLESS PAN HEAD
6WPW10192799 Whirlpool Dishwasher Accumulator
7WP99002658 Whirlpool Dishwasher Chopper
8MAY 99002666
8MAY 99002759
9GASKET, PUMP
10SCREW 10-32X.400 (T-20 HEAD)
10CAPACITOR, MOTOR
11MAY 99002760
12MAY 99002895
13MAY 99002904
