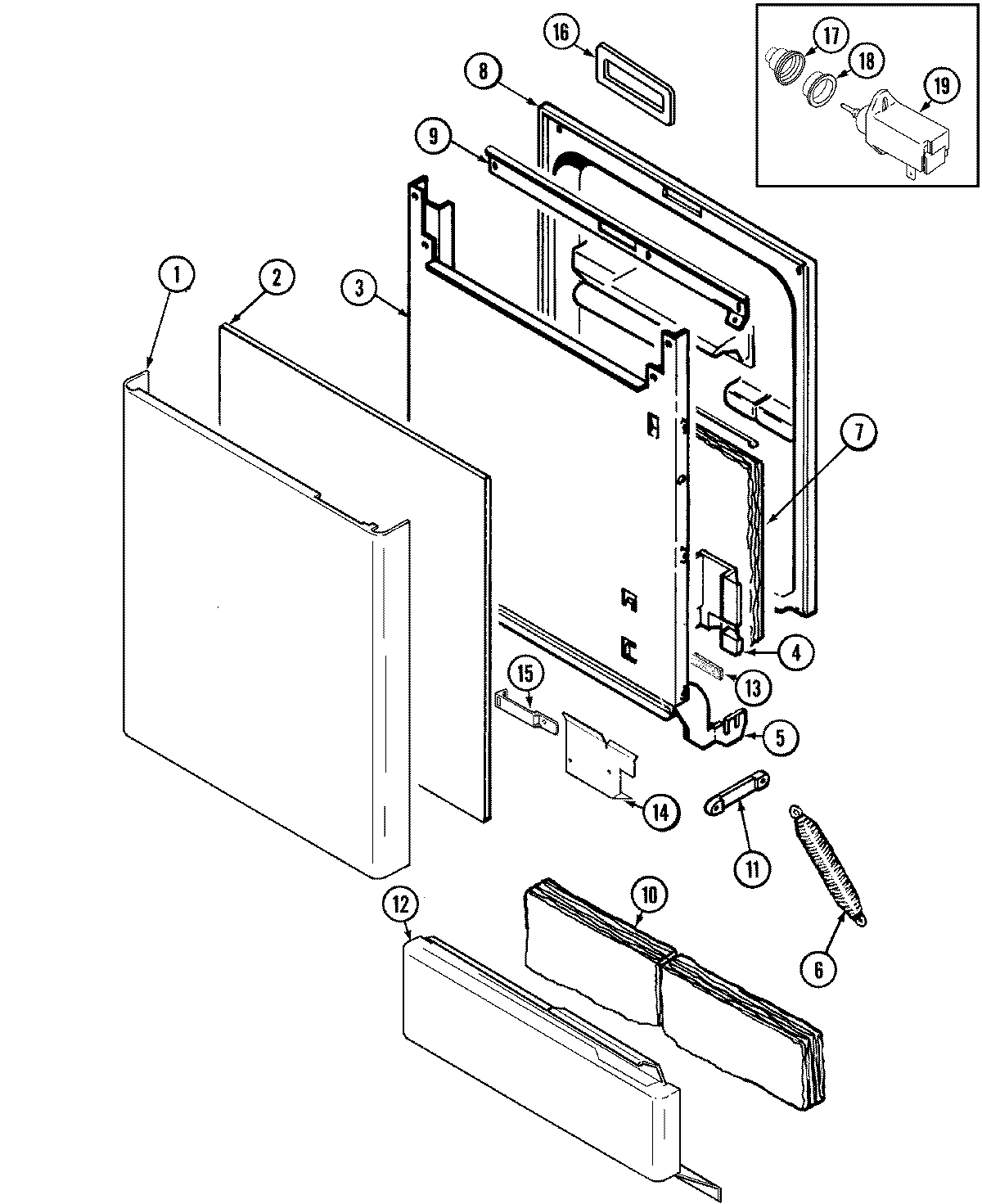

MDBD820AWW 02 – DOOR

Products

PositionProduct
1MAY 99001445
1MAY 99001416
2MAY 99001415
3MAY 99001688
3MAY 99002176
4SCREW, No.8X1/2 HEX WASHER HEAD
4WP99002362 Whirlpool Dishwasher Spacer
4MAY 99002188
5MAY 99001898
5MAY 99001899
5MAY 99001075
6MAY 99002469
7WP6-920580 Whirlpool Dishwasher Insulation Pad
86-915876 Whirlpool Dishwasher Inner Door
8WPY912620 Whirlpool Dishwasher Screw
9MAY Y912668
10MAY 99002412
11WP912653 Whirlpool Dishwasher Door Spring Link
12MAY 99002060
12SCREW, ACCESS PANEL
13WPW10117748 Whirlpool Dishwasher Insulation Pad
14MAY 99001414
15MAY 99001444
15MAY 912365
16MAY 99001783
17MAY 99001805
18MAY 99001806
19MAY 99001807
