MDBD850AWQ 04 – RINSE AID & SOAP DISPENSER

MDBD850AWQ 04 – RINSE AID & SOAP DISPENSER

Written by

in

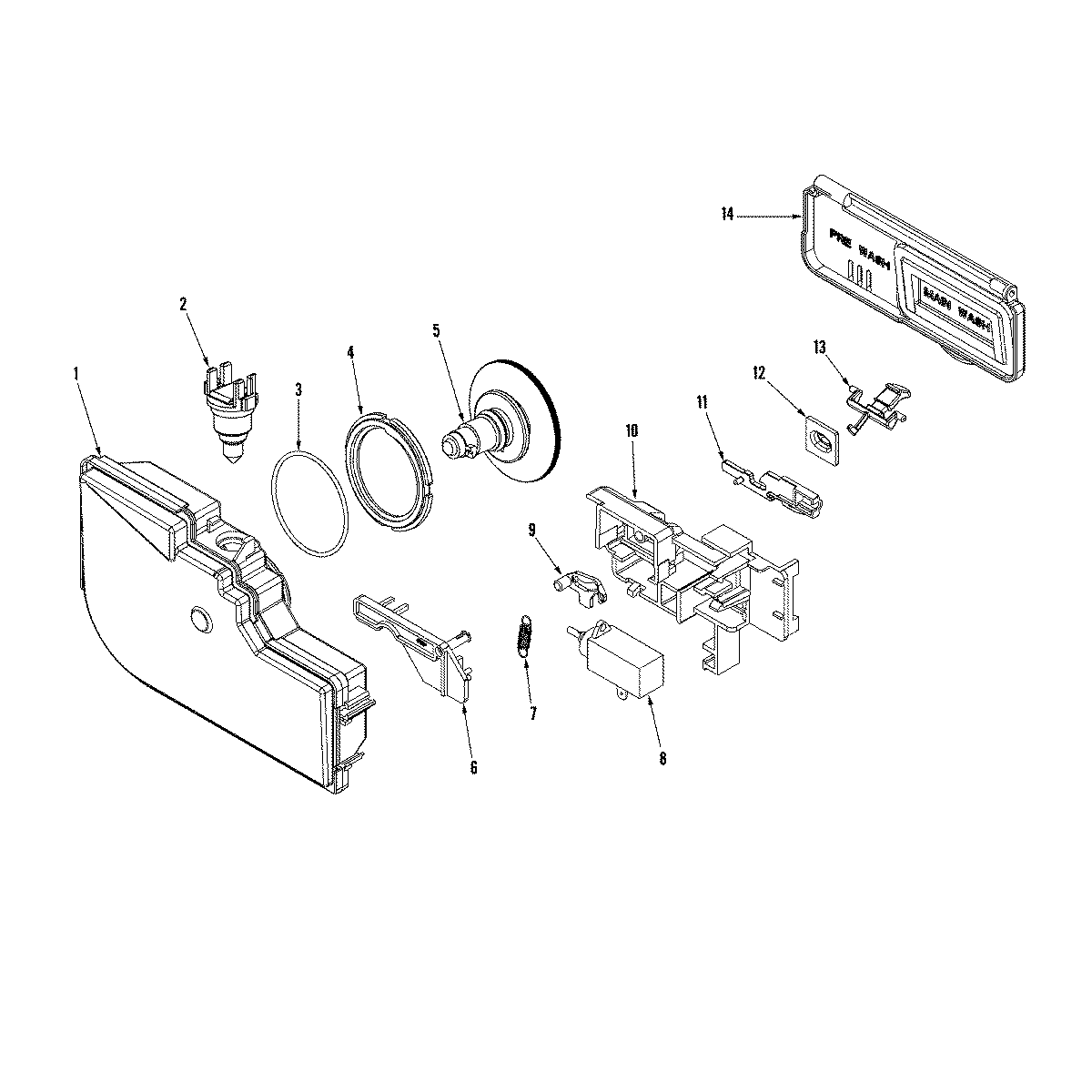

MDBD850AWQ 04 – RINSE AID & SOAP DISPENSER

Products

PositionProduct
1WP99002833 Whirlpool Dishwasher Reservoir
2MAY 903124
3MAY 99002003
4MAY 99002005
5WP6-903123 Whirlpool Dishwasher Rinse Knob
6MAY 99001289
7WPW10116816 Whirlpool Dishwasher Spring
8WP902899 Whirlpool Dishwasher Wax Motor
9MAY 99001287
10SCREW, No.8X1/2 HEX WASHER HEAD
10WP99001288 Whirlpool Dishwasher Retainer
11MAY 99001290
12WP99001553 Whirlpool Dishwasher Grommet
13WP99001291 Whirlpool Dishwasher Latch
14WP6-912678 Whirlpool Hinge Pin
14WPY912679 Whirlpool Dishwasher Hinge Pin
14MAY Y912547
14MAY 99002354
