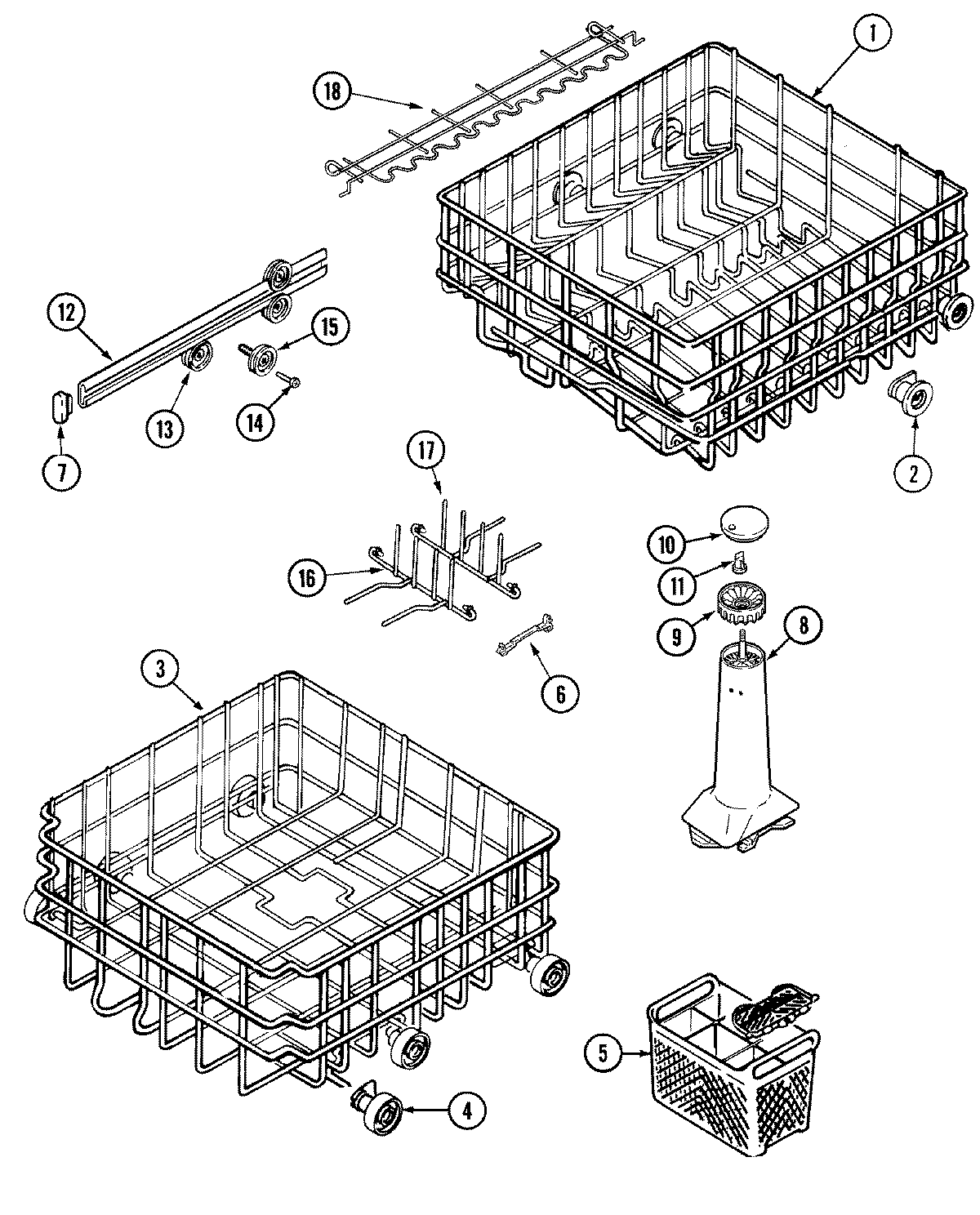

MDBD850AWW 05 – TRACK & RACK ASSEMBLY

MDBD850AWW 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBD850AWW 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99001507
2WP903093 Whirlpool Dishwasher Rack Wheel
3MAY 99002453
4WP99002780 Whirlpool Lower Wheel Assembly
5WP6-918873 Whirlpool Silverware Basket
6WPY912709 Whirlpool Dishwasher Adjuster Clip
7WP99002135 Whirlpool Dishwasher Rack Stop
8MAY 99001533
9MAY 99001442
10WP99001443 Whirlpool Dishwasher Nut
11MAY 99001426
12WPY912545 Whirlpool Dishwasher Track
13WP99002342 Whirlpool Dishwasher Tub Wheel
14WP99002947 Whirlpool Tub Wheel
15WPY912798 Whirlpool Dishwasher Tub Washer Wheel
1612002218 Whirlpool Dishwasher Tine Bowl with Sleeves
17WP99002138 Whirlpool Dishwasher Tine Row
18MAY 99001508
19MAY 99002017
19MAY 99002016
