MDBE790AWS 02 – DOOR (AWS)
Written by
in

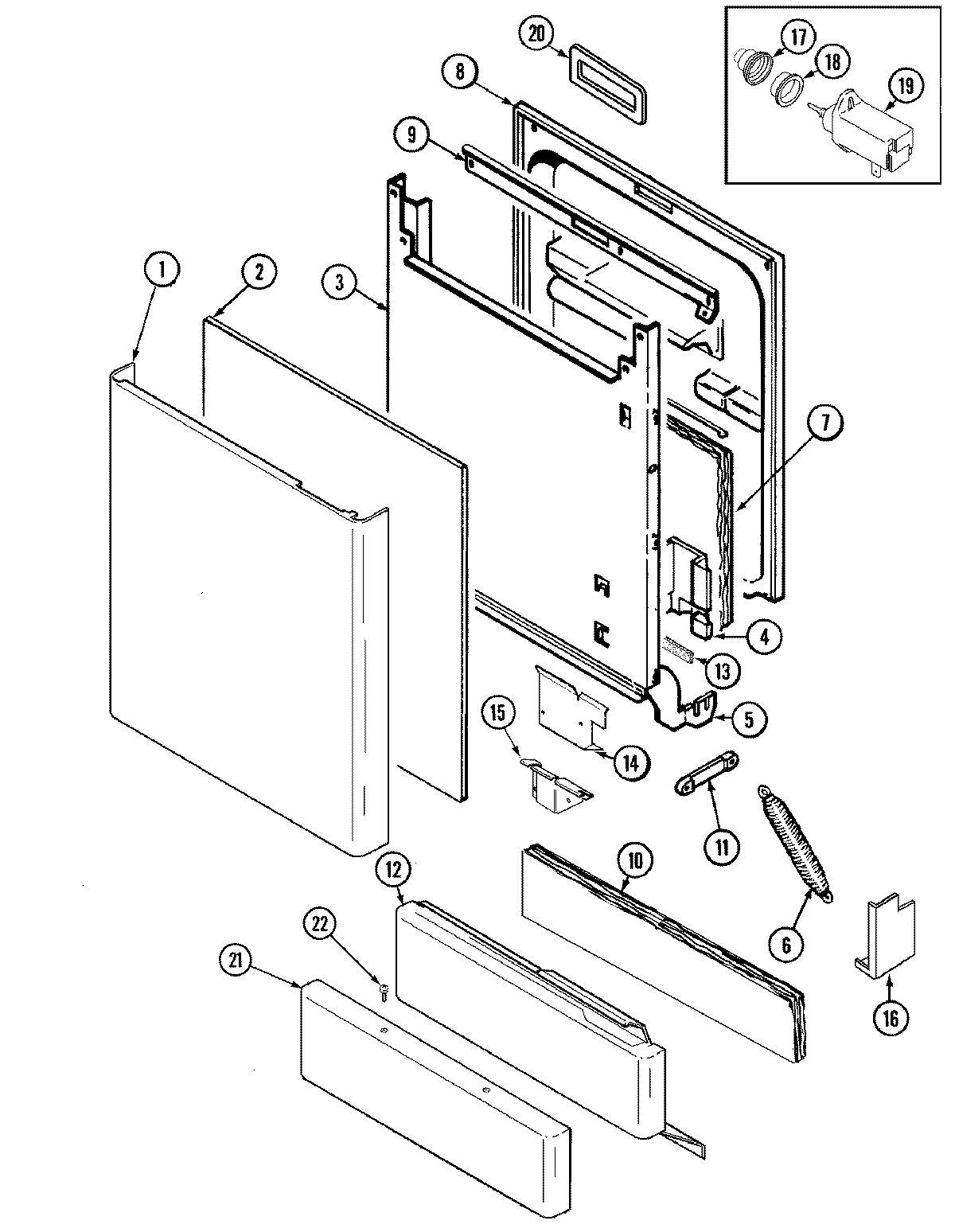

MDBE790AWS 02 – DOOR (AWS)
Products
Position
Product
1
912619 Whirlpool Dishwasher Trim Screw P-1
1
MAY 99002169
2
MAY 99001415
3
MAY 99001688
3
MAY 99002176
4
WP99002362 Whirlpool Dishwasher Spacer
4
MAY 99002188
5
MAY 99001898
5
MAY 99001899
5
MAY 99001075
6
MAY 99002469
7
WP6-920580 Whirlpool Dishwasher Insulation Pad
8
WPY912620 Whirlpool Dishwasher Screw
8
6-915876 Whirlpool Dishwasher Inner Door
8
MAY 99002547
9
MAY Y912668
10
MAY 99002548
11
WP912653 Whirlpool Dishwasher Door Spring Link
12
MAY 99001989
12
MAY 912636
12
MAY 99001205
13
WPW10117748 Whirlpool Dishwasher Insulation Pad
14
MAY 912641
15
MAY 912642
16
MAY Y912809
16
MAY Y912810
16
WP6-912366 Whirlpool Dishwasher Screw
17
MAY 99001805
18
MAY 99001806
19
MAY 99001807
20
MAY 99001783
21
MAY 99002204
21
MAY 912525
22
MAY 912365
22
WP912618 Whirlpool Dishwasher Screw
←
