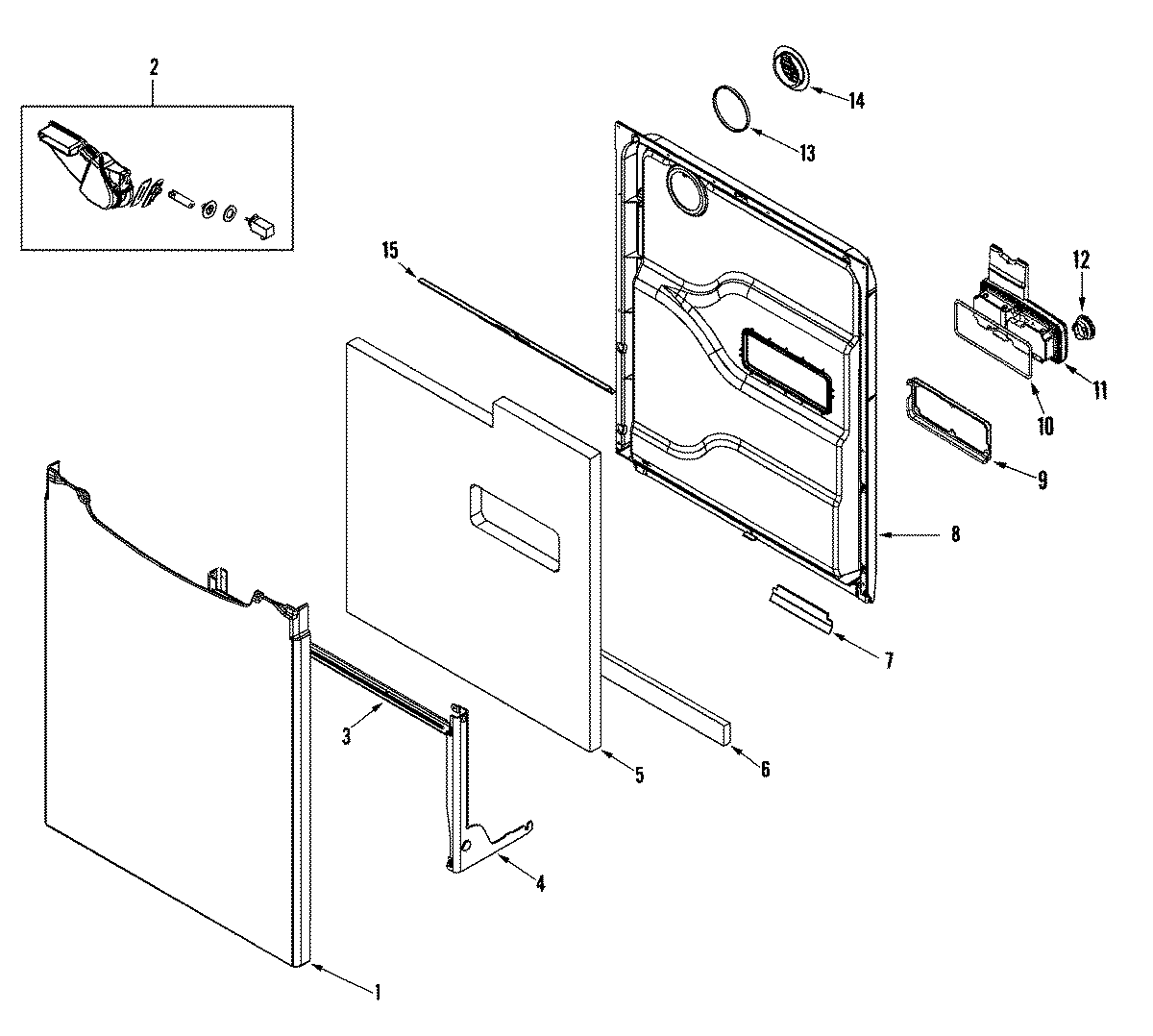

MDBF550AWW 02 – DOOR

MDBF550AWW 02 – DOOR

Written by

in

MDBF550AWW 02 – DOOR

Products

PositionProduct
1MAY 99002770
2VENT HOUSING ASSEMBLY
3MAY 99002604
4NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4MAY 99002929
4MAY 99001075
4WPW10118637 Whirlpool Dishwasher Bracket
5INSULATION, DOOR
6WPW10117748 Whirlpool Dishwasher Insulation Pad
7WP99002589 Whirlpool Dishwasher Door Seal
8MAY 99002776
8DOOR, INNER (W/DAMPER)
96-918900 Whirlpool Dishwasher Bracket
9SCREW, No.8X1/2 HEX WASHER HEAD
10MAY 99002270
11MAY 99002611
12WP99002614 Whirlpool Dishwasher Rinse Knob
13MAY 99002186
1499002590 Whirlpool Dishwasher Door Vent Bezel
15WPY912620 Whirlpool Dishwasher Screw
15MAY 99002586
