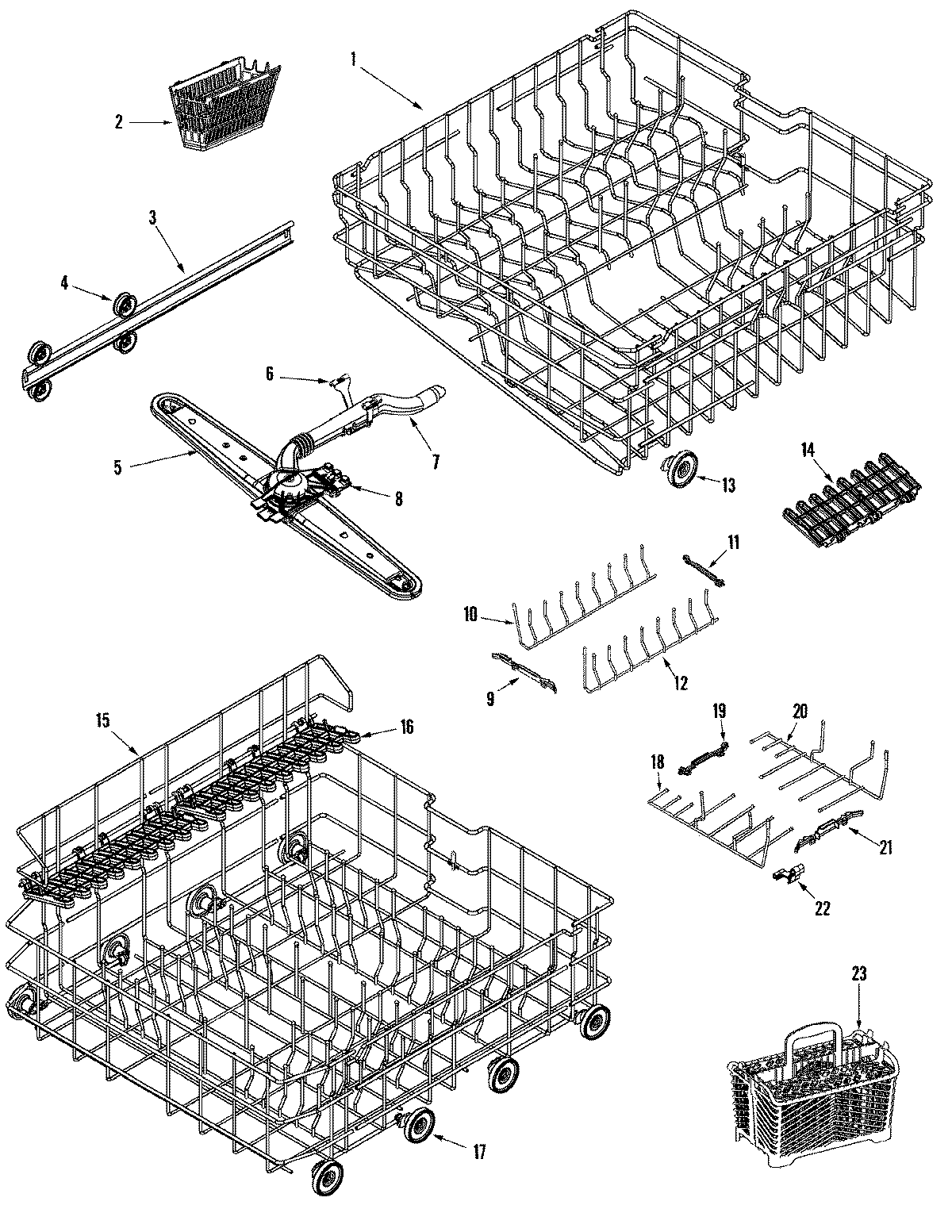

MDBF750AWQ 05 – TRACK & RACK ASSEMBLY

MDBF750AWQ 05 – TRACK & RACK ASSEMBLY

Written by

in

MDBF750AWQ 05 – TRACK & RACK ASSEMBLY

Products

PositionProduct
1MAY 99002812
1MAY 99003019
2W11175758 Whirlpool Dishwasher Basket Ware
3WPW10261227 Whirlpool Dishwasher Stop Assembly
3TRACK, RACK
4WP99002947 Whirlpool Tub Wheel
4WPY912798 Whirlpool Dishwasher Tub Washer Wheel
5SCREW, TRUSS HEAD (10-18X.75)
5WP99003070 Whirlpool Dishwasher Wash Arm
699002945 Whirlpool Dishwasher Upper Wash Manifold Clip
7WASH MANIFOLD ASSY (UPR)
8CLIP, UPR WASH MANIFOLD (FRT)
9WP99002710 Whirlpool Dishwasher Fold-Down Latch
11WP99002709 Whirlpool Tine Pivot Clip
12WP99003496 Whirlpool Convertible Row Tine
13WP99002781 Whirlpool Dishwasher Wheel
14MAY 99002671
15MAY 99002813
15MAY 99002905
15MAY 99002963
16MAY 99002672
17WP99002780 Whirlpool Lower Wheel Assembly
1812002750 Whirlpool Dishwasher Convertible Tine Kit
19WP99002687 Whirlpool Tine Pivot Clip
21WP99002688 Whirlpool Dishwasher Convertible Tine Latch
22MAY 99002689
23MAY 99002697
23MAY 99002683
23WP6-918873 Whirlpool Silverware Basket
