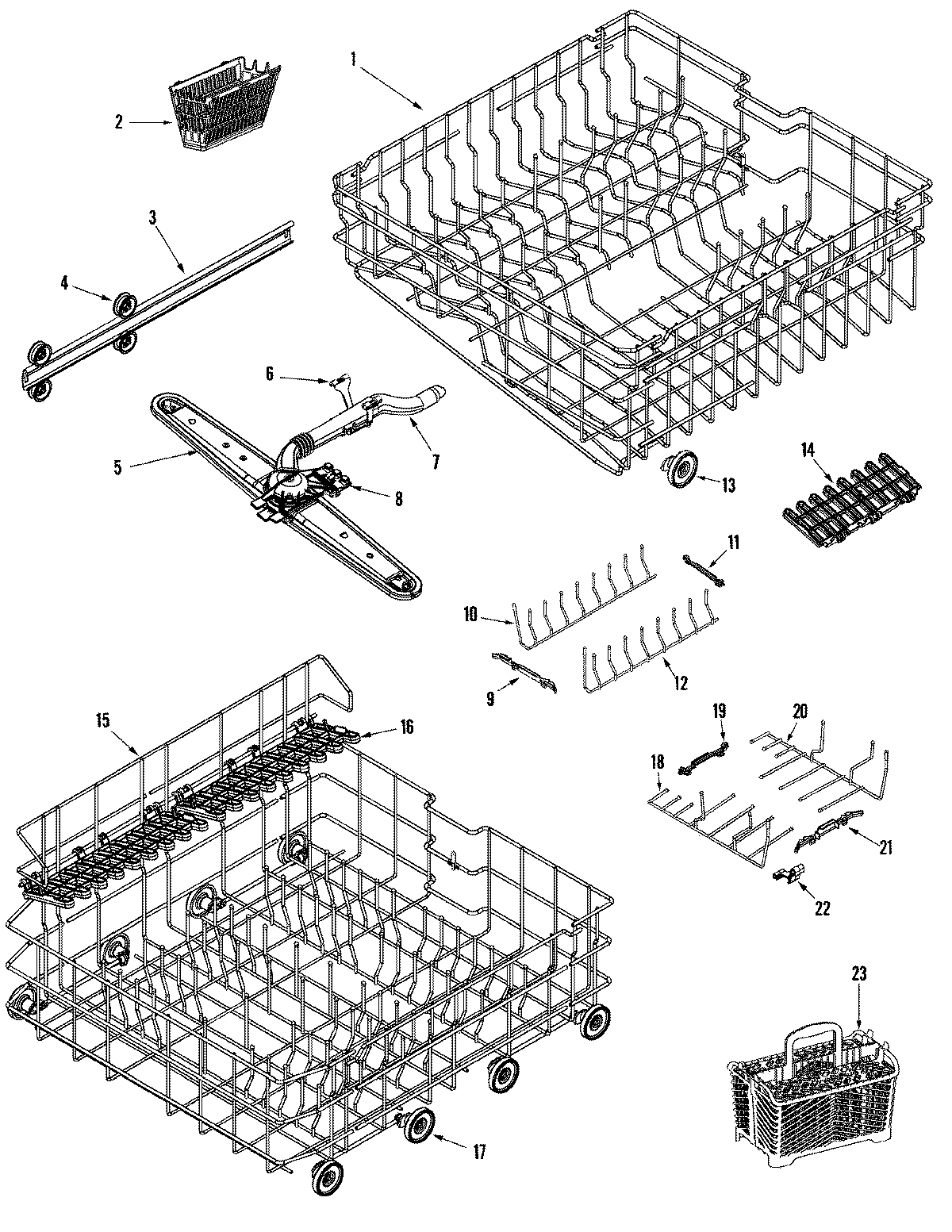

MDBF750AWW 05 – TRACK & RACK ASSEMBLY

Products

Position	Product
1	MAY 99002812
1	MAY 99003019
2	W11175758 Whirlpool Dishwasher Basket Ware
3	WPW10261227 Whirlpool Dishwasher Stop Assembly
3	TRACK, RACK
4	WP99002947 Whirlpool Tub Wheel
4	WPY912798 Whirlpool Dishwasher Tub Washer Wheel
5	SCREW, TRUSS HEAD (10-18X.75)
5	WP99003070 Whirlpool Dishwasher Wash Arm
6	99002945 Whirlpool Dishwasher Upper Wash Manifold Clip
7	WASH MANIFOLD ASSY (UPR)
8	CLIP, UPR WASH MANIFOLD (FRT)
9	WP99002710 Whirlpool Dishwasher Fold-Down Latch
11	WP99002709 Whirlpool Tine Pivot Clip
12	WP99003496 Whirlpool Convertible Row Tine
13	WP99002781 Whirlpool Dishwasher Wheel
14	MAY 99002671
15	MAY 99002813
15	MAY 99002905
15	MAY 99002963
16	MAY 99002672
17	WP99002780 Whirlpool Lower Wheel Assembly
18	12002750 Whirlpool Dishwasher Convertible Tine Kit
19	WP99002687 Whirlpool Tine Pivot Clip
21	WP99002688 Whirlpool Dishwasher Convertible Tine Latch
22	MAY 99002689
23	MAY 99002697
23	MAY 99002683
23	WP6-918873 Whirlpool Silverware Basket
