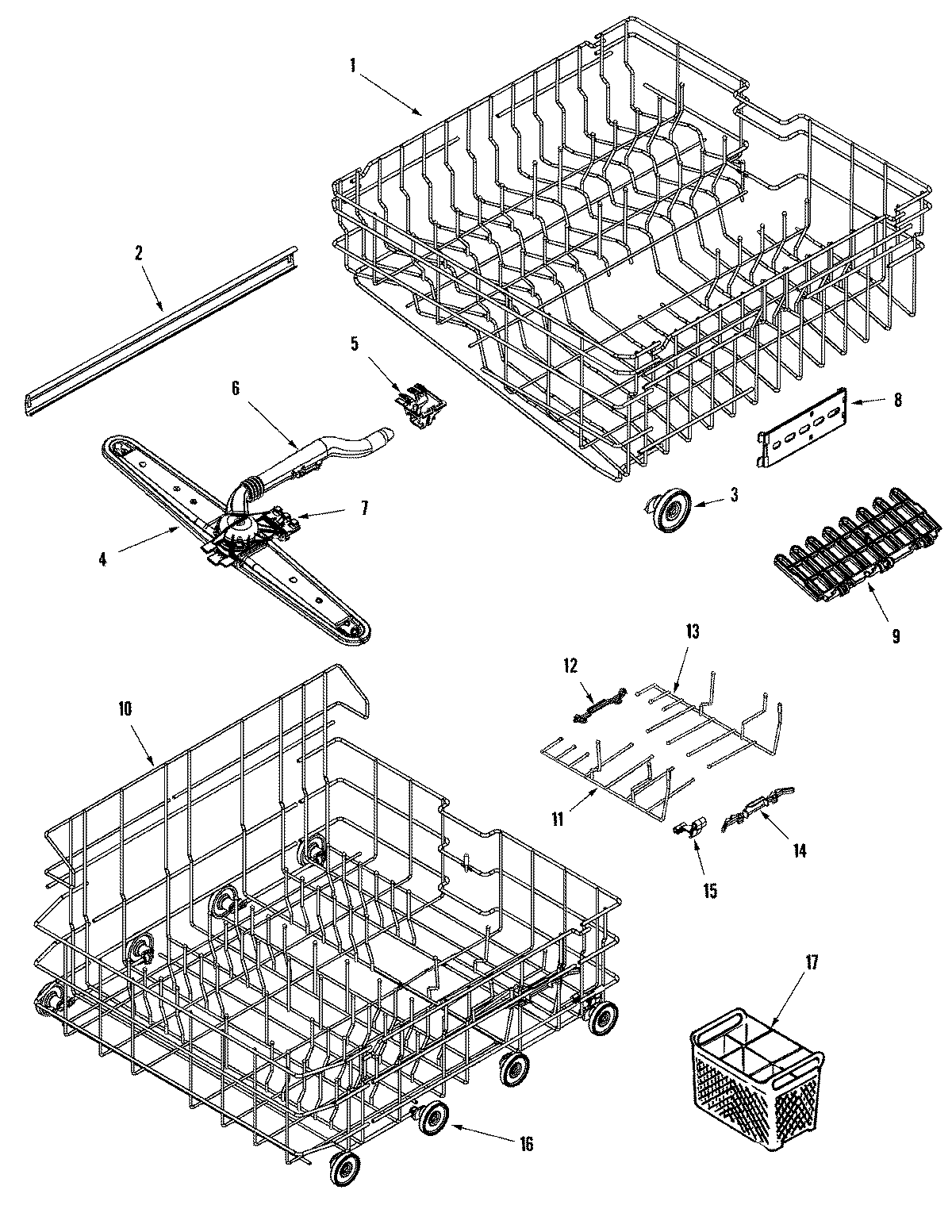

MDBH750AWB 04 – RAIL & RACK ASSEMBLY

MDBH750AWB 04 – RAIL & RACK ASSEMBLY

Written by

in

MDBH750AWB 04 – RAIL & RACK ASSEMBLY

Products

PositionProduct
1MAY 99003313
2MAY 99003043
2MAY 99003069
2MAY 99003066
2WP99003068 Whirlpool Dishwasher Bearing
3WP99003147 Whirlpool Dishwasher Upper Rack Wheel
4WP99003070 Whirlpool Dishwasher Wash Arm
599002945 Whirlpool Dishwasher Upper Wash Manifold Clip
6WASH MANIFOLD ASSY (UPR)
7CLIP, UPR WASH MANIFOLD (FRT)
8MAY 99003053
8MAY 99003052
9MAY 99002671
10MAY 99002905
10MAY 99003314
1112002750 Whirlpool Dishwasher Convertible Tine Kit
12MAY 99003003
14MAY 99003004
15MAY 99003005
16WP99002780 Whirlpool Lower Wheel Assembly
17WP6-918873 Whirlpool Silverware Basket
