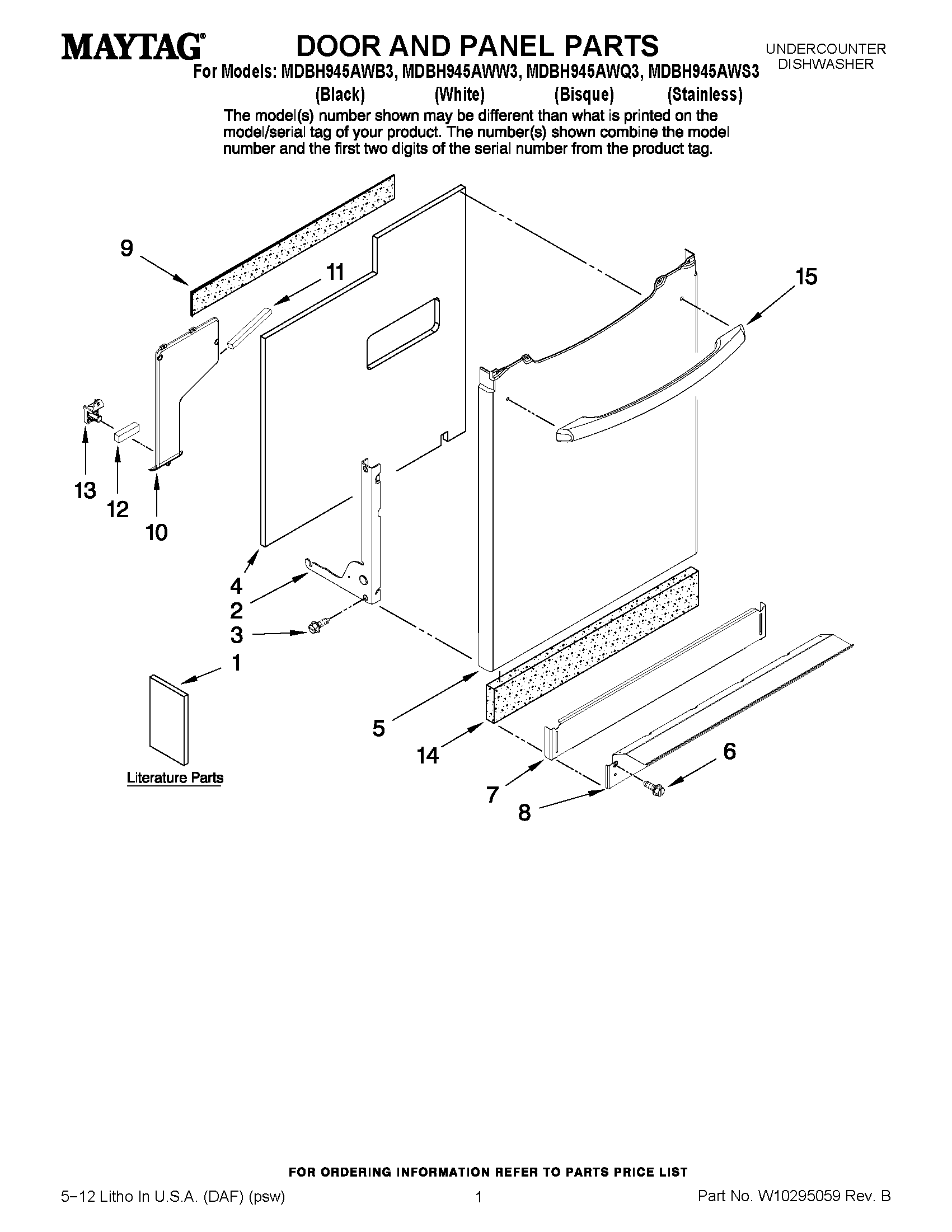

MDBH945AWB3 01 – DOOR AND PANEL PARTS

MDBH945AWB3 01 – DOOR AND PANEL PARTS

Written by

in

MDBH945AWB3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10157791
1MAY W10260100
1MAY W10212195
2MAY W10202227
2MAY W10202226
3MAY 99001075
4INSULATION, DOOR
5MAY W10235722
5MAY W10235724
5MAY W10235725
5MAY W10235723
6WP6-912366 Whirlpool Dishwasher Screw
7MAY 99002766
7PANEL, TOE (W/DAMPER-BLK)
7MAY 99002767
8SUPPORT, FRONT (W/SEALS)(BLK)
8SUPPORT, FRONT (W/SEALS)(WHT)
9MAY W10117748
10MAY W10185633
11Foam Strip(Long)
12MAY 99003482
13MAY 99003541
14WP6-920587 Whirlpool Dishwasher Shield
15MAY W10189705
15MAY W10189706
15MAY W10189707
