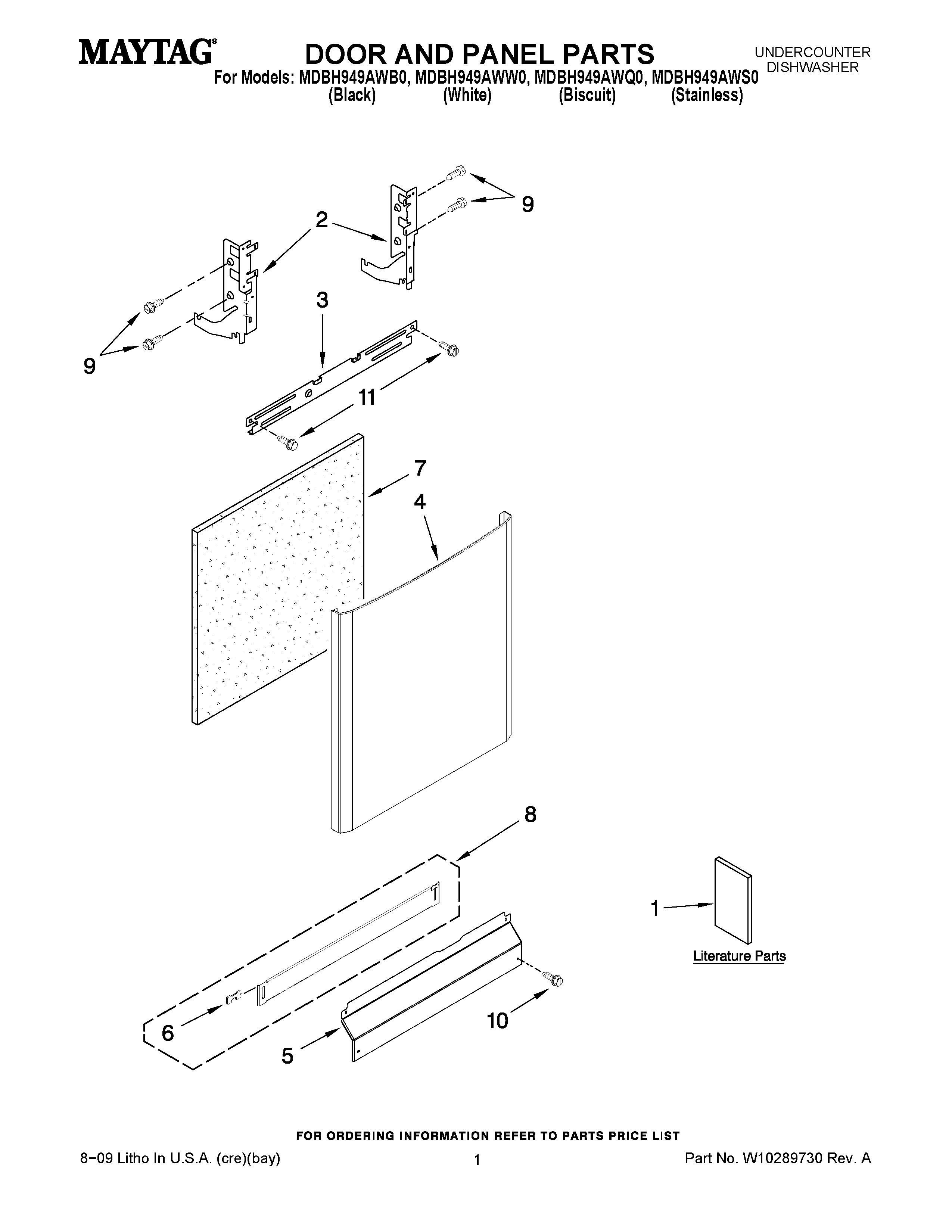

MDBH949AWB0 01 – DOOR AND PANEL PARTS

MDBH949AWB0 01 – DOOR AND PANEL PARTS

Written by

in

MDBH949AWB0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10240159
1MAY W10240115
1TECH SHEET
1MAY W10240116
1MAY W10240117
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10240060
4MAY W10240063
4MAY W10240061
4MAY W10240062
5MAY 8573256
5ACCESS PANEL (BLACK)
6CLIP, GROUNDING
7MAY W10073520
8TOE PANEL (BLACK)
8TOE PANEL (WHITE)
8MAY 8573288
9SCREW
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
11Screw
