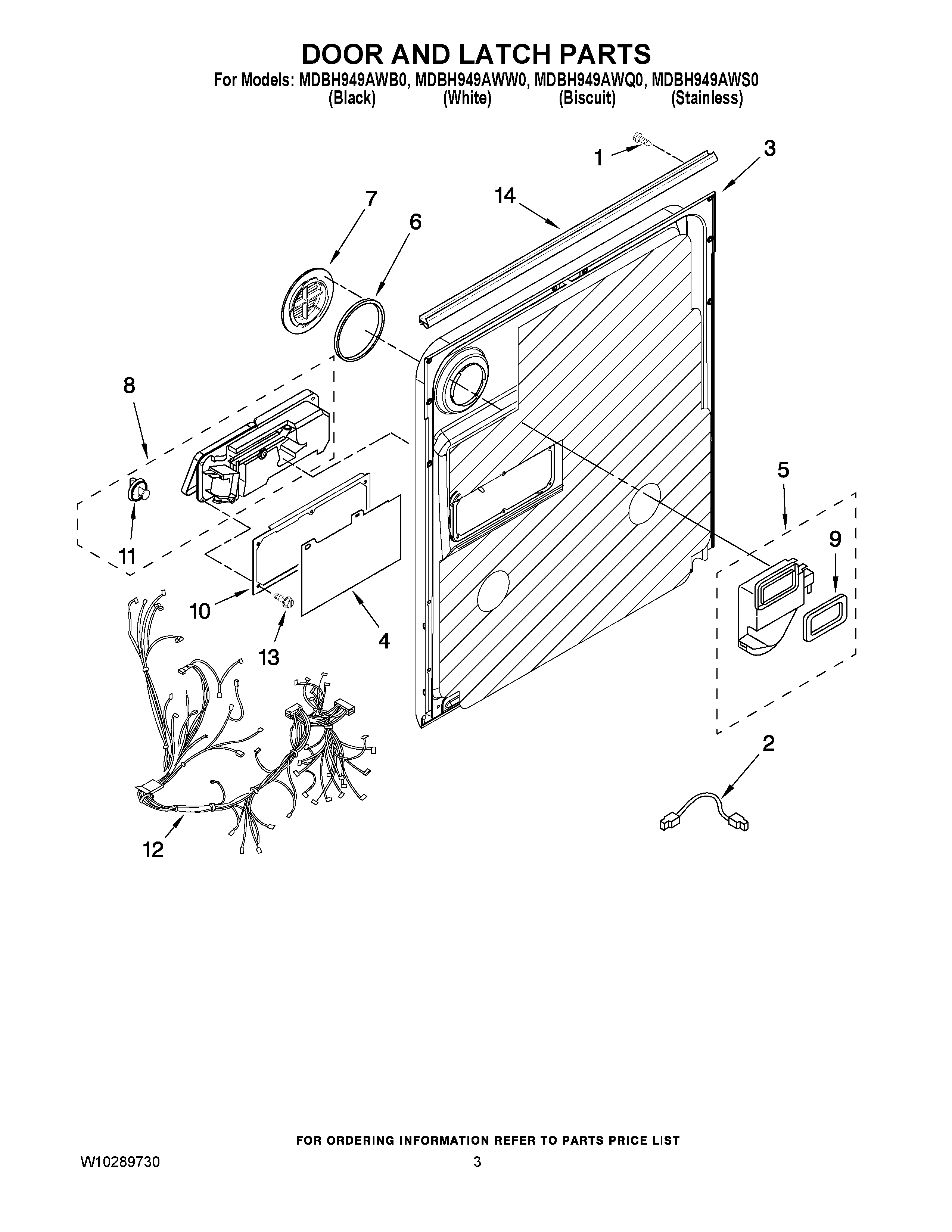

MDBH949AWB0 03 – DOOR AND LATCH PARTS
Written by
in
MDBH949AWB0 03 – DOOR AND LATCH PARTS
Products
Position
Product
1
SCREW
2
MAY 8545608
3
INNER DOOR MASTIC ASSEMBLY
4
SHIELD, DISPENSER
5
VENT ASSEMBLY
6
MAY 8269259
7
MAY 8545535
8
MAY W10240176
9
SEAL, FRONT
10
BRACKET, DISPENSER
11
MAY W10199683
12
MAY 8573175
13
MAY W10177098
14
MAY 8269296
←
