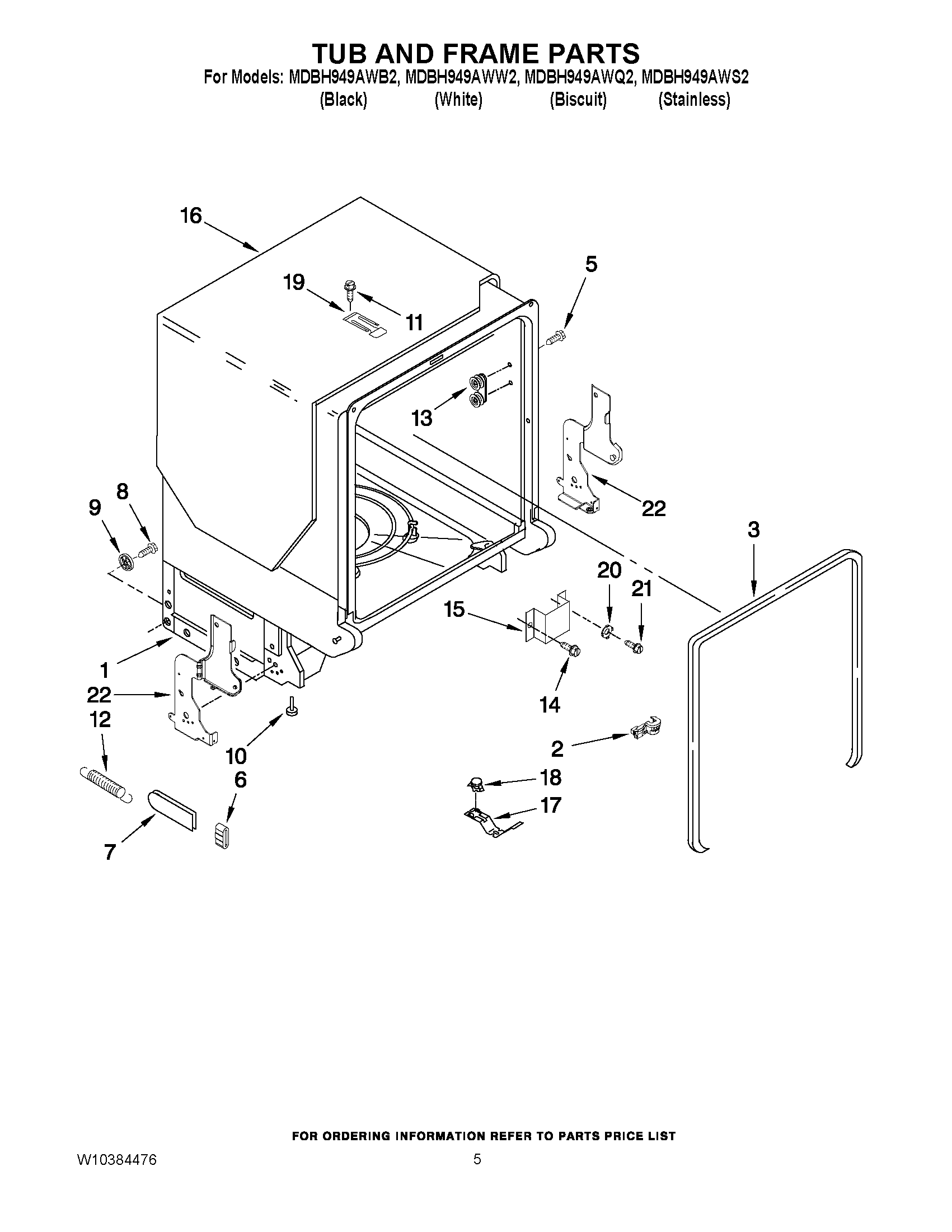

MDBH949AWB2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10254860
2	MAY 8573061
3	MAY W10284090
5	SCREW
6	SLEEVE, FRICTION
7	MAY 8268990
9	MAY 8269831
10	MAY 8524584
11	MAY W10165274
12	MAY 8524473
13	MAY 8270016
14	MAY 3400892
15	MAY 8268991
16	MAY 8573240
17	MAY 3378595
18	MAY 661566
19	STRIKE, LATCH
20	WASHER, PRONGED CUP
21	MAY 3400014
22	MAY W10185368
22	MAY W10185369
