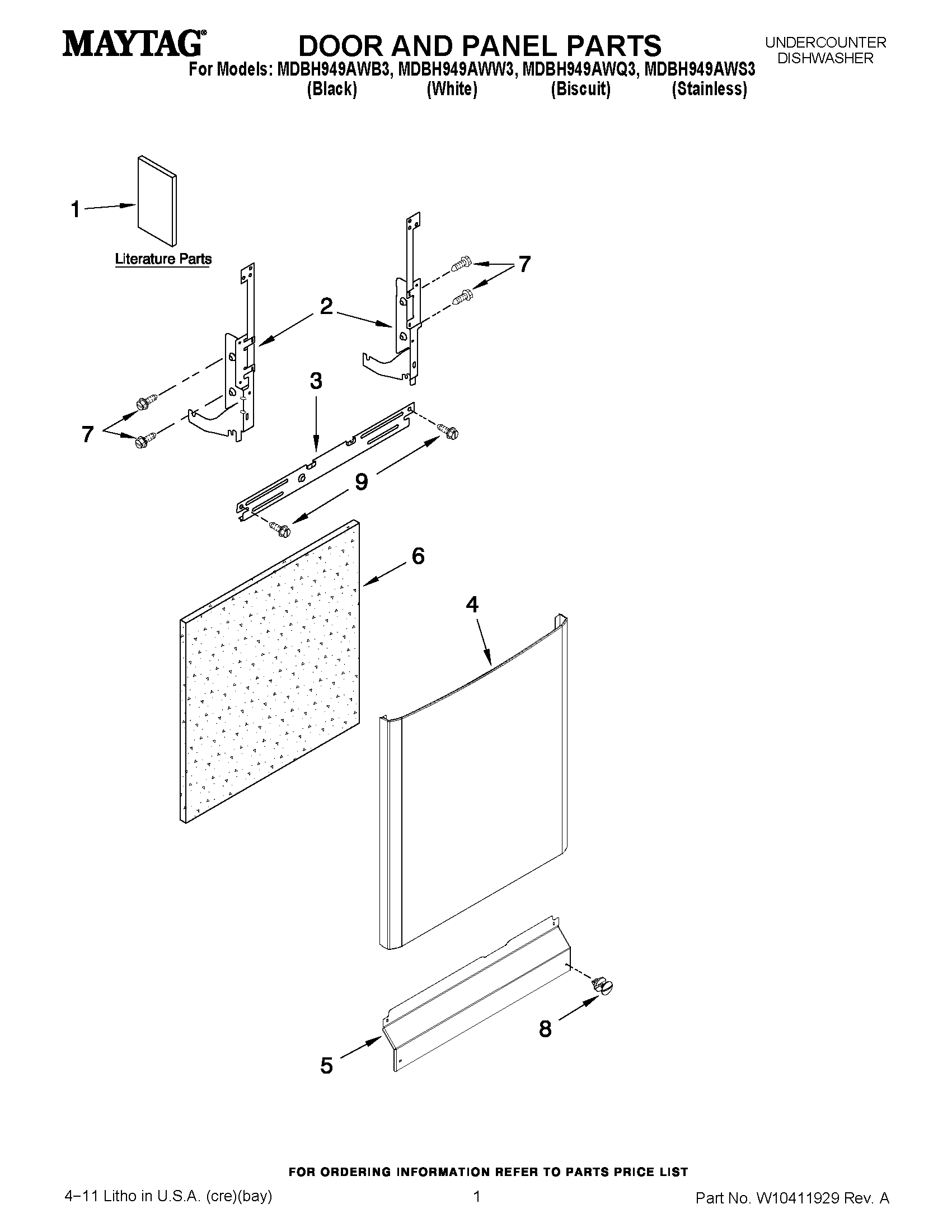

MDBH949AWQ3 01 – DOOR AND PANEL PARTS

MDBH949AWQ3 01 – DOOR AND PANEL PARTS

Written by

in

MDBH949AWQ3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10240117
1MAY W10398587
1MAY W10290309
1TECH SHEET
1MAY W10240116
2MAY W10143373
2MAY W10143374
3MAY 8268983
4MAY W10240062
4MAY W10240063
4MAY W10240060
4MAY W10240061
5MAY W10237243
5MAY W10237241
5MAY W10237242
6MAY W10254613
7MAY 489470
8SCREW (BISCUIT)
8SCREW (WHITE)
8SCREW (BLACK)
9Screw
