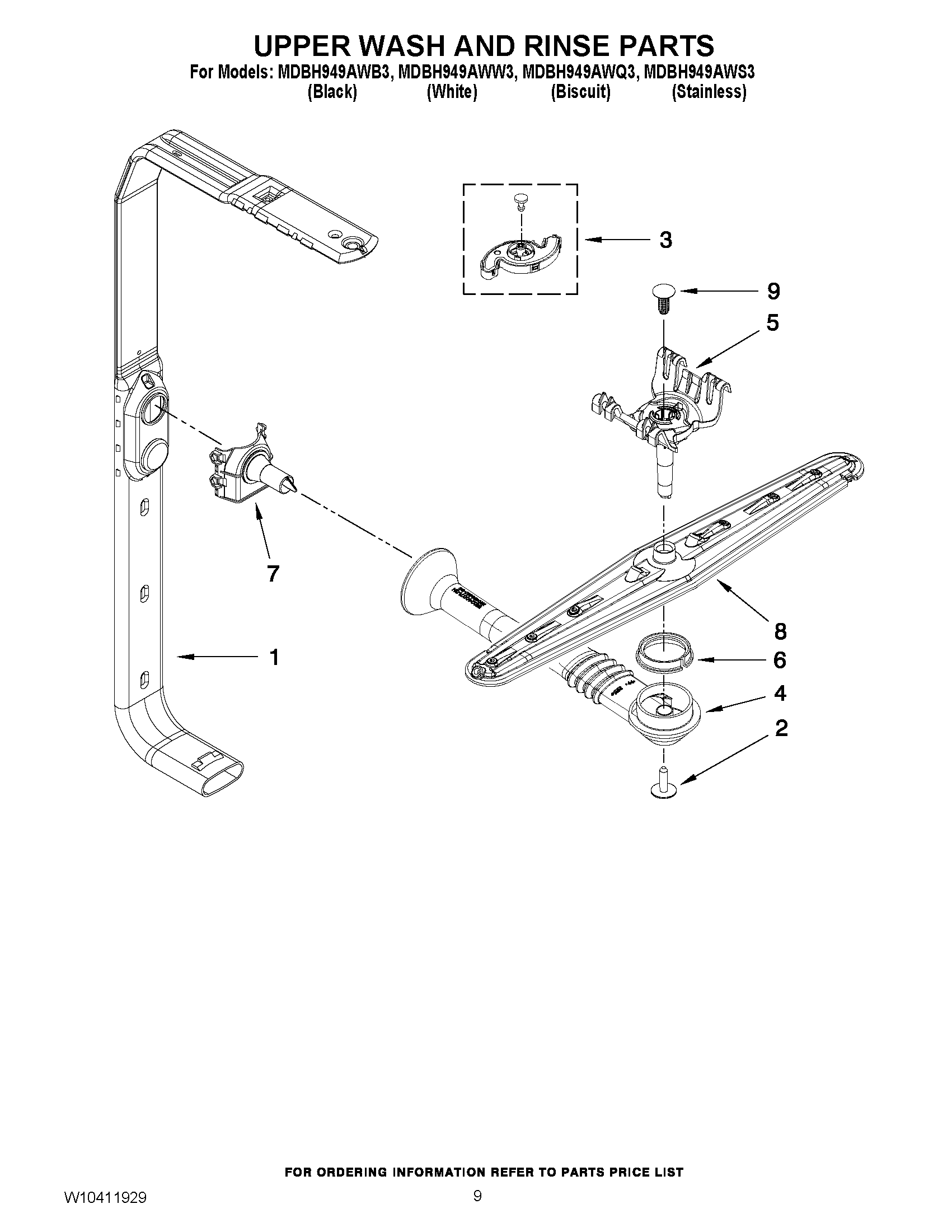

MDBH949AWQ3 06 – UPPER WASH AND RINSE PARTS

Written by

Products

Position	Product
1	FEED TUBE SILVERWARE ZONE (ALSO INC. No.3)
2	MAY W10349488
3	SPRAYARM, 3RD LEVEL
4	MAY W10199810
5	MAY W10199808
6	MAY 8268433
7	NOZZLE-FEED
8	SPRAY ARM
9	RETAINER, PUSH-IN
